Can coaxial cable carry power

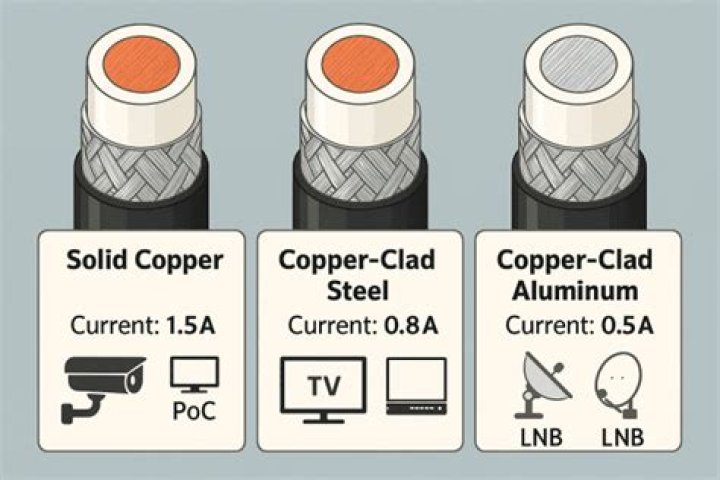

A coaxial cable is capable of carrying current. If the center conductor of the cable is solid copper, it carries it quite well. Solid copper core RG6 is used to power amplified antennas and satellite dishes all the time. It’s not suitable for carrying the amount of current you’d get from a wall outlet, though.

Can you run power through coaxial cable?

Yes, you can. In fact, using coaxial cables to deliver power to small-scale electronics is a common engineering practice, with all corresponding approvals (EA, UL, etc). You can combine DC on coax even with AC signal transmission if you need.

How much power can coax handle?

You need to revise the calculation for air dielectric, in which case you’ll see 256 volts is the maximum voltage, 358 watts is the maximum power into a good load, and 89 watts is the maximum into an unmatched load. Note that at this interface the coax presents 71 ohms impedance.

Is there voltage in coaxial cable?

A: Coax, or any other cables, do not generate any voltage or amperage, any voltage on a coax cable would be generated by equipment the cable is connected to.

How close can coax be to power lines?

Coax cable falls under Article 820 in the NEC. Section 820.52(a)(2) requires a separation of 2 inches from power cables, etc.

Is coax low voltage?

Audio/video cables Fortunately there are some clever solutions, such as baluns, that use in-wall-rated network cable, coax cable (RG-6), or even fiber optic cable to pass audio and video signals over long distances. Telephone wire and outlets are low voltage.

Does coax use AC or DC?

Normally coaxial cable is not used alone for DC signal. But its used many times for mixing for both signals. Because this cable can carry different frequency signal and DC power too with AC communication signal.

Is my coax cable bad?

Coaxial cable is more susceptible to damage when compared with other cable types like category cables and power cables. … Heat Damage – coaxial cable susceptible to heat damage. The interior insulator can warp causing loss of video quality. Connector Damage – Connectors can go bad from constant use.

How does current flow through coaxial cable?

The RF current in a coaxial cable flows from the signal source (e.g. a transmitter), through the center conductor to the load and then back through the outer conductor of the coax, to the signal source.

How do you check the voltage on a coaxial cable?

1. Disconnect the coaxial cable from the TV or cable box and position it for easy access. Video of the Day.
2. Set the voltmeter to read AC (alternating current) voltage.
3. Touch one probe of the voltmeter to the center wire. …
4. references.

Article first time published on

Are coaxial cables shielded?

The key to the coaxial cable’s success has been its shielded design, which allows the cable’s copper core to transmit data quickly, without succumbing to interference or damage from environment factors.

Can you run electric and cable together?

The National Electric Code NEC (as defined in NFPA 70) in general sets a minimum separation of 2 inches between communications and electric power cabling unless there is a physical barrier between them such as a raceway (NFPA article 800-52).

What if there is no coax outlet?

The short answer is that the Cable Company will install the coaxial connection. This should not be a problem for your landlord, as having no cable connection in 2018 is just archaic. The long answer, and it’s a little shady, is that all you really need is a WiFi connection.

Can a coaxial cable be used as an antenna?

Yes, you can connect your TV antenna to your cable TV wiring system. If your home is wired for cable TV and you want to cut the cord and drop cable in favor of a TV antenna the same coax cable can be used for the TV antenna.

How does power coax work?

The Power over Coax system has an over-current protection function, that is, the output current of the power supply is monitored in real time through the voltage drop across the resistor. When the output current is too large, the power supply can be cut off in time to protect the entire system.

What are the advantages of coaxial cable?

• Coax Supports High Bandwidth Levels.
• Coax is Easy to Install.
• Coax is Easy to Locate.
• Coax Can Provide Power.
• Coax is Rugged.

Does coax cable need to be grounded?

The National Electrical Code (NEC) requires that the antenna mast and the coaxial cable be bonded to the home’s ground electrode system (GES), which is usually the ground rod installed at the power meter and breaker box. … A separate ground rod is not required, and is not recommended.

Are cable lines electrified?

Guy wires are not energized, meaning there’s no electricity pulsing through them. However, on occasions when guy wires are not properly grounded, they can actually conduct electricity.

Do cable outlets have electricity?

The“signal” on a cable is in fact alternating current electricity, which is of a much, much higher frequency than that of your mains electrical supply. This doesn’t mean that you can’t cut into the cable as the voltage induced onto a coax cable from a TV aerial is very, very low. … Yes, too much signal is a thing!

Can a cable line shock you?

Any device or cable running at or below 50V likely won’t cause any harm or give you a strong electrical shock. However, if the system is not installed correctly, you could have high currents on your cables. Also, some old-style televisions, like Cathode Ray Tube (CRT) TV’s have voltages around 25,000V.

Can an old coaxial cable slow Internet?

Coax cable does not inherently slow down your Internet. In fact, because coax cable wiring is intentionally designed to carry extremely high-bandwidth data, you can harness this wiring using MoCA technology to transform and boost your Internet speeds.

How do you test coaxial cable for signal strength?

Manual Test using Cable Modem– You can test your coax outlet’s signal by taking your cable modem from cable outlet to cable outlet, and plugging it in to each coax outlet to verify a signal and connectivity. If your internet modem connects like normal, that means a signal was detected.

Can a coax outlet go bad?

The connector on either end can go bad, whether it is BNC, N, or some other type. Sometimes the damage will be obvious, like a missing center pin. Sometimes it will be hard to see, like if the solder has come loose loose behind the connector, or the termination was improperly performed in the first place.

How do you test if a coax outlet is live?

Simply plug the DSS-01 Coax Cable Tester into the coaxial outlet you need to test and press the button. You will start receiving results instantly, and in less than 10 seconds, you will know if your coax outlet is live. When the LED-light indicator is red, it means the outlet is not live and is not receiving a signal.

What is the max speed of coaxial cable?

Coax cables can be specified to carry 10 Mbps or 100 Mbps over distances up to 500 metres. But it is also dependant on the transmission equipment at either end. Some internet service providers are able to get up to 1000 Mbps or 1 Gbps, although this is uncommon.

Is twisted pair cable more immune to EMI than coaxial?

When compared to twisted-pair, coaxial cable is the better choice even though it costs more. It is a standard technology that resists rough treatment and EMI. Although more resistant, it is still susceptible to EMI and eavesdropping.

Can you run coax and Ethernet together?

In almost all cases, no. If interference occurs, shielded ethernet cable is available. No, especially not with quad-shield RG-6 coaxial cable supporting typical devices like cable modems or TV antennas.

Can I run Ethernet cable next to electrical?

You can run ethernet cables next to electrical cables if the ethernet cable is shielded, but even then you should keep 8in between them. Non-shielded cables can lose data and bandwidth when run next to power cables. PoE cables run too close to power cables can cause heating and fires.

Can cable and electrical in the same box?

National Electrical Code allows you to put power and communication circuits in the same box, as long as all the conductors are separated by a permanent barrier or listed device.

Can I run electrical cable and sound cable in the same conduit?

According to NEC 300.3(C)(1), you can only run the speaker cable in the same enclosure as a higher-voltage circuit if the insulation of the speaker cable is rated for the voltage of the higher-voltage circuit.

Do I need a new coax cable?

Coaxial cable, just like everything, has a lifespan. The white dielectric foam can degrade, the center conductor can get kinked and nicked, the connector can start to oxidize. … So look, keep old cables if you want. It’s good for the environment and it gives you some backups.
