Can I use UF B Wire indoors

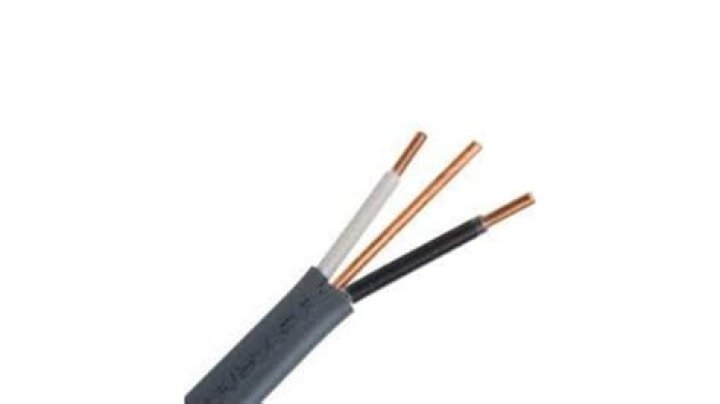

Type UF cable is usually gray and comes in rolls that look like standard non-metallic (NM) sheathed cable. While standard NM cable is rated only for dry, interior applications, UF cable can be used outdoors as well as indoors.

Can you use outdoor wire indoors?

While the electrical wire meant for outdoor use can be used indoors, it would be dangerous to use indoor wires outside. Indoor wire is designed for use within the house and is not prepared to handle the external factors found outdoor such as temperature, moisture and even chemicals in some cases.

Does UFB wire need to be in conduit?

At 24-in. -deep, run direct-bury UF-B wire cable. There’s one restriction: It needs a conduit where the cable is exposed on the outside of the house and to 18 inches below the ground.

Can UF-B wire be exposed?

The use of UF cable on the exterior surface of buildings or structures is permitted by Sec. … If the cable is exposed to physical damage it must be protected in accordance with Sec.

Can you use 12 2 UFB inside?

Yes. when used indoors, it follows many of the same code rules as type NM.

Can UF wire be direct buried?

Copper UF-B wire is typically used as an underground feeder cable to distribute power from an existing building to outdoor lighting fixtures, pumps, outbuildings and other outdoor equipment. The cable can also be used as direct burial cable.

What is the difference between UF and UF-B wire?

The regular UF cable is well-suited only to be buried in conduit. The difference between them is UF-B construction indicates a better resistance to water and corrosion, as well as a superior temperature range.

What is UF B wire used for?

​Type UF-B (Underground Feeder and Branch-Circuit Cable) is generally used in underground, direct burial installations as branch circuits and/or feeders to outside floodlights, sewer pumps and motors, electric gates and other loads typically supplied from a distribution system.

Can UF wire be exposed outdoors?

Exposed or buried wiring must be listed for its application. (Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.) UF cable can be direct buried (without conduit) with a minimum of 24 inches of cover.

Is THWN wire sunlight resistant?

Listed by UL as Type THHN or THWN per Standard 83, and as Type MTW per Standard 1063 (stranded items). … Listed by UL as Sunlight Resistant (1/0 AWG and larger, black only).

Article first time published on

Can I put UF B in conduit?

Running UF cable through metal or PVC conduit. Although not commonly done, it is allowable to run UF cable (but NOT NM) cable through metal or PVC conduit in an underground application. … Most electricians prefer to fish individual waterproof THWN conductors through conduit, simply because it is easier.

How far can you run UF wire?

14 AWG100 feet12 AWG120 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet

What does NM-B Wire mean?

NM-B is a non-metallic electrical wire used in residential building wiring for various devices and outlets. It is mostly used in devices characterized as damp or wet, such as washing machines and dishwashers. It can also be applied in switches, tile walls, and lighting.

Can type NM B Romex be exposed to corrosive vapors?

Section 334.12(B) does not allow type NM cable to be installed in wet locations or where exposed to corrosives such as chlorine but without the revised code language, sections 334.10 and 334.12(B) were in conflict with one another.

How deep does UF cable need to be buried?

Bury UF cables 24 inches below the soil surface, and 18 inches deep when protected by 2 inches of concrete. For all other applications, the burial depth is the same as specified for conduits, except that conduits are required for UF cables in 2 inches of solid rock.

Is UF cable Romex?

Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC).

What is UF electrical?

uF refers to the size of the capacitor. Capacitance is the charge that is necessary to raise the potential of a body one unit. A capacitance of 1 farad (f) requires 1 coulomb of electricity to raise its potential 1 volt (v). 1 micro farad (uF) = 0.0000001 F.

Can you use THWN wire outside?

THHN is still the single conductor wire used outdoors and in conduit, because the THWN rating can resist water, oil, gases, and solvents.

Is THWN wire stranded or solid?

Sizes 8 AWG and larger are stranded. THWN-THHN-2 wire comes in a variety of 10 standard colors. Type THHN/THWN-2 building wire is intended for general-purpose applications as defined by the National Electrical Code (NEC). Type THHN/THWN-2 is permitted for new construction or rewiring for 600-volt applications.

Can Thhn wire be used outdoors?

The wire must be marked “THWN” or “THWN-2” along its length to be used outdoors. No markings, no use. (I suppose XHHW would also be OK, but I don’t think it’s chemically possible to be THHN-XHHW). It is possible to make wire dual-rated THHN/THWN.

Can you put Romex in conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Is IMC threaded?

Allied IMC uses the same threaded couplings and fittings as RIGID conduit, and the 3/4″ NPT threads (ANSI B1. 20.1) are also full cut and galvanized after cutting.

What size wire do I need to run 300 feet?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit, …

What size wire do you run from meter to house?

Based on the current and voltage rating of the meter and breaker, #4 size AWG copper wire is the highly suggested type and size of wire.

What wire size do I need to go 100 feet for a 60 amp service to a workshop?

You have to use a #4 conductor to feed a 60 amp circuit.

Can nm-B be exposed?

NM cable, also known by the trade name Romex, is the most common form of electrical wire used in residential electrical work. … The sheathing on both 14 and 12 AWG wire is 15 mils thick. Still, no matter how strong the NM sheathing, it is not meant for exposed applications.

What is the difference between NM and NM-b wire?

Type NM is identified by the size of the conductors and number of them. For example, the very commonly used Type NM 12-2 cable contains two 12 American Wire Gauge (AWG) insulated conductors. … When the letter B is appended, as in NM-B cable, it indicates that the conductor insulation is rated for 90 degrees C.

Can I use Romex underground?

Romex cannot be used in the situation you describe as buried conduit is considered a wet location. You must use conductors such as THWN. Also, minimum burial depth for conduit (PVC I assume) is 18″, unless you run rigid or IMC, in which case you can go a minimum of 6″.
