Can you put a thermocouple in water

A thermocouple must be put into a thermowell if you wish to submerse it in water.

Are K type thermocouples waterproof?

Waterproof, anti-corrosion, acid and alkali resistant, wide range of applications. High sensitivity and accuracy, durable and sturdy.

Do thermocouples corrode?

In contrast to most other methods of temperature measurement, thermocouples are self-powered and require no external form of excitation. … Temperature range. Chemical resistance of the thermocouple or sheath material. Corrosion, abrasion and vibration resistance.

Where should thermocouple be placed?

Typically the thermocouple sensor is mounted right in the flame of the pilot light on gas fired heating equipment.

How do you protect a thermocouple?

Thermocouple protection: Keep it tidy with a Vacuum To eliminate impurities around the metal wires you can seal a thermocouple within a vacuum.

Should the thermocouple be in the flame?

If the pilot light goes out, the thermocouple detects it and shuts the valve supplying gas to the pilot. The pilot flame should touch the thermocouple at a specific level. … If the flame covers the top of the thermocouple and burns steadily with a yellow tip, that’s just about right.

What is a Type K thermocouple?

A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.

What is the life of a thermocouple?

Thermocouples can last up to 10 years if properly installed and maintained, while furnaces can last 15-20 years, although either may wear out sooner in multifamily units.

How do I know if my thermocouple is bad on my water heater?

A worn out thermocouple is one of the most common gas water heater problems. When thermocouples wear out, the pilot light goes out, the burner won’t light, and you will have no hot water.

What are the disadvantages of thermocouple?

➨(Disadvantages of thermocouple are): Non linearity, least stability, Low voltage, Reference is needed, least sensitivity etc. ➨(Disadvantages of RTD are ): Lower absolute resistance, expensive, current source needed, less rugged compare to thermocouples etc.

Article first time published on

What is the limitations of thermocouple?

Even though a thermocouple probe is the perfect choice for many applications, there are some limitations including the following: Thermocouples are not as accurate as RTDs in a certain set temperature range. Thermocouples are susceptible to drift over time. Thermocouples, when badly insulated, are vulnerable to …

What are the disadvantages of thermocouple over thermistor?

Thermistor AdvantagesThermocouple AdvantagesSingle-ended channelThermistor DisadvantagesThermocouple DisadvantagesRequire powerRequire accurate reference temperatureSelf-heating errors from applied powerSmall response (small output signal)

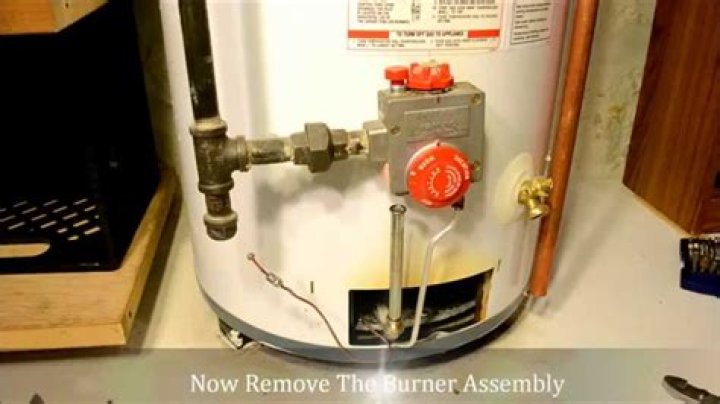

What is a water heater thermocouple?

The thermocouple is a thermoelectric device that shuts off the gas supply to the water heater if the pilot light goes out. Its function is simple but very important for safety. The thermocouple generates a small amount of electrical current when it has been heated by the flame.

Why is a small welded bead used to connect the thermocouple wires?

The junction of a grounded thermocouple is welded to the protective sheath giving faster response than the ungrounded junction type. An ungrounded junction is recommended for measurements in corrosive environments where it is desirable to have the thermocouple electronically isolated from and shielded by the sheath.

Can RTD be grounded?

RTDs cannot be grounded. For this reason, they have a slower response time than grounded thermocouples. Also, thermocouples can be placed inside a smaller diameter sheath than RTDs. A smaller sheath diameter will increase response time.

Are soil moisture sensors waterproof?

Capacitive soil-moisture sensors are a great way to monitor soil water status in your potted plants, garden, or greenhouse using an Arduino, ESP32, or other microcontroller. … The capacitance sensors only cost about $1 each in bulk, however, they have exposed electronics and are not waterproof.

Is thermistor waterproof?

A thermistor is a thermal resistor – a resistor that changes its resistance with temperature. … They are also much easier to waterproof since its just a resistor.

What's the difference between J and K thermocouples?

Whereas a J Type thermocouple is made up of iron and constantan, K type thermocouples are composed of a nickel/chromium alloy (chromel) and a nickel/aluminium alloy (alumel) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J.

What is Pt100 thermocouple?

Pt100 thermocouples are a misnomer of two separate types of temperature sensor, a Pt100 resistance thermometer and a thermocouple. Pt100s and thermocouples are two very different technologies both used to measure temperature. A temperature sensor can be one or the other, a sensor cannot be both.

What is Type N thermocouple?

Thermocouple Type N Technical Details Type N is a relativity new thermocouple type that was made to be an alternative to Type K. It has high stability over time but is more costly than type K at similar temperature ranges. Its sensitivity is about 39 µV/°C, slightly lower compared to type K.

Can I bypass a thermocouple?

Can You Bypass Thermocouples on Patio Heaters? Constant heat supply ensures that your patio heater pilot light is lit at all times. If your unit is receiving no heat, this won’t be so. To temporarily sort the situation, you can bypass thermocouples until you have funds to replace them.

Will pilot stay lit if thermocouple is bad?

The job of the thermocouple is to keep the pilot lit. It does this by sending a tiny electric current to a sensor on the gas valve signaling the valve to stay open. … Nothing lasts forever, and when the thermocouple wears out, the pilot won’t stay lit and your appliance won’t work.

How close should thermocouple be to pilot light?

A pilot flame with a yellow tip should be strong enough to cover 1/2 inch at the end of the thermocouple tip.

Are thermocouples for water heaters universal?

Universal thermocouples, as the name implies work on most water heaters. They are available online and in home supply stores for a reasonable cost. The length and the thread type are the two concerns when purchasing one.

Does a water heater have a thermocouple?

A thermocouple or flame sensor is a device used to control gas flow in gas water heaters. … The thermocouple is part of the pilot burner assembly and connects to the gas control valve on the outside of the water heater.

Do Thermopiles go bad?

Like the other component parts in your furnace, the thermocouple can wear down over time, producing lower voltage than it should when heated. And the worst part is that you can have a bad thermocouple without even knowing. Therefore, inspecting and testing your thermocouple should be part of your furnace maintenance.

What causes thermocouple to fail?

A good thermocouple is going to be used, and that can lead to metal fatigue. Changes in temperature can cause regular expansion and contraction in metal, which will cause thermocouples to weaken over time. After enough time, metal fatigue can cause a thermocouple to break.

How long does a thermocouple last on water heater?

In effect, new thermocouples were installed into contaminated tubes, causing the degradation of the sensors and generating greater than a 100°F shift in accuracy. In this scenario, thermocouple life, which should have been close to one year, was shortened to within a week.

Why does the pilot light on my gas logs keep going out?

If the pilot light on your gas fireplace won’t stay lit, a very likely culprit is a component called a thermocouple. A thermocouple is a safety device and is a component of the ignition system. Its purpose is to not allow the gas valve to open if the pilot light isn’t lit.

Why is a thermocouple better than a thermometer?

A thermometer is a device that measures temperature or a temperature gradient (the degree of hotness or coldness of an object). … A thermocouple produces a temperature-dependent voltage as a result of Seebeck effect, and this voltage can be interpreted to measure temperature.

What are the major advantages of a thermocouple?

• The thermocouple is less expensive than RTD.
• It has wide temperature ranges.
• It has good reproducibility.
• The temperature range is 270 to 2700 degree Celsius.
• It has rugged construction.
• It does not required bridge circuit.
• It has good accuracy.
• It has high speed of response.
