Can you put a Wye on its back

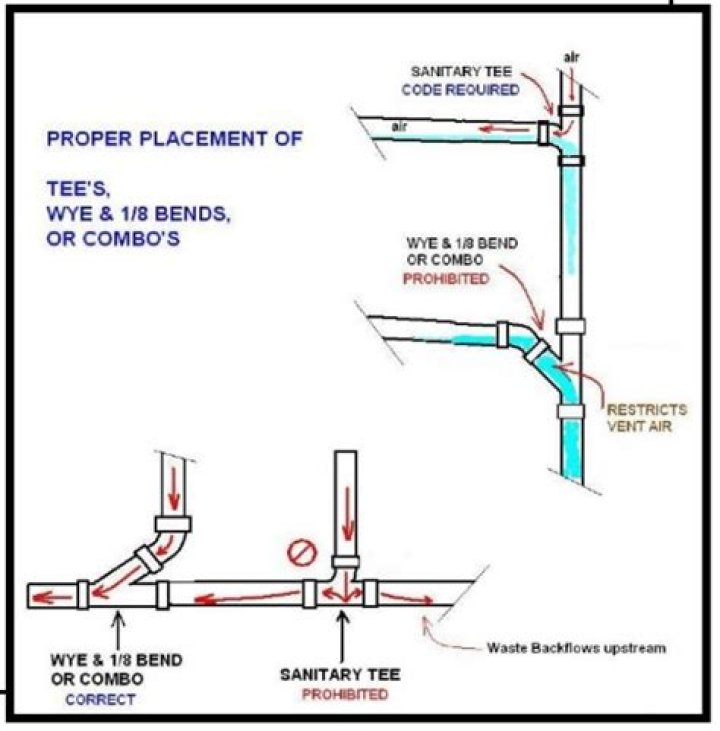

It helps maintain the proper flow. When using a sanitary tee, don’t lay it on its back with a side opening because this will result in an upstream splash of waste which creates clogging inside the line. When using wye, it is used to split branch lines.

Can you lay a Wye on its side?

I don’t know, I was just doodling and it felt right. Don’t you see flat horizontal wyes combining drains within a slab or floor usually? Some special sanitary situations specifically call for wyes in the vertical position, so i have read, but here we should be good. My state is IPC.

Why should you avoid a wye 45 connection?

Connecting a trap to a vertical drain with a wye fitting and a 45-degree elbow seems like a good idea. But it’s not. As water drains down the steep slope at the wye, it can create a siphon effect such that water will be sucked out of the trap. And the empty trap will allow sewer gas to flow into your home.

Can a double wye be installed horizontally?

A double-wye fitting may be used in horizontal drain lines. … The minimum slope of the barrel of the fitting shall be “/-inch per foot. Manufactured double-combination fittings are not approved for use in horizontal drain lines.

Can you use a wye for venting?

Absolutely! Most any fitting is perfectly acceptable and legal, just don’t use any reducers, caps or traps in the venting.

How can we reduce sanitary tee?

Slip the new sanitary tee in place, glue it to the drain going down. The 1 1/2″ piece sticking out of the top should just about touch the 1 1/2″ piece coming down from upstairs. Pull the tape and slide the Fernco down over the stub of 1 1/2″ pip out the top of the sanitary tee.

Can you put a San tee on its back for a vent?

A sanitary tee should be used when connecting a horizontal run, such as a waste arm to a vent stack or vertical riser. “If you think it’s expensive to hire a professional to do the job, wait until you hire an amateur.”

Can I use a double sanitary tee?

Double sanitary tees may be used when the barrel of the fitting is at least two (2) pipe sizes larger than the largest inlet.

Can you use a double wye vertically?

For two horizontal branches connecting to the vertical stack at the same level, a double wye or a double combination wye and one-eighth bend should be used. The downward sweep of the wye pattern directs the flow to the pipe wall below the opposite outlet opening.

Can a toilet drain into a combo?

You can connect a toilet to a combo, just not in the vertical position.

Article first time published on

Can a Fernco be used horizontally?

Under our code, we can use fernco’s where ever we feel, horizontal, vertical, diagonal, inverted, right side up, what ever you want to call it, we can use them there.

How long can a waste pipe be?

The limits can be very restrictive and are as little as 1.7m for a 32mm waste pipe to a wash hand basin. By increasing the size of the pipe, you can place the fitting further away – typically between 3 and 4m away for a 50mm pipe.

What is a double sanitary tee used for?

The double sanitary tee is generally used at the junction of two different pipes. Generally, the tee connects the two pipes with the vent. This helps to pass fumes and gases out of the system.

Where do you put a long sweep elbow?

Long sweep elbows are commonly used in residential and commercial construction to direct water from above-floor drains and sumps to the main drain line. They are a kind of a very long (and curved) pipe fitting that is used instead of a 90-degree elbow fitting to route wastewater.

What is the difference between a sanitary tee and a regular tee?

A sanitary tee is a plumbing fixture that allows liquids to drain while also allowing the plumbing system to vent. The fitting resembles a normal tee fitting; the sanitary tee, however, when viewed from the side will have a definite downward sweep to the center inlet.

What is a straight tee?

An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter.

Can sanitary tee be used for vent?

Use a sanitary tee to connect a horizontal trap arm to a vertical drain and vent. … If the diameter of the vent pipe is smaller than the drain pipe, glue a reducing fitting onto the upper barrel.

What is a sanitary Cross?

saznitary cross. A type of pipe cross used as a fitting for a soil pipe; designed with a slight curve in each of the 90° transitions so as to channel flow from branch lines toward the direction of the main flow.

What is a sanitary tee in a septic tank?

The purpose of the inlet sanitary tee is twofold: to direct flow from the house sewer downward into the tank to create a longer detention time for the sewage to allow settling of solids, and to keep the floating scum layer from plugging the inlet pipe.

What does a sanitary tee look like?

A sanitary tee is shaped like the letter ‘T’, while a Wye is similar to ‘Y’. Sanitary tee is used for horizontal to vertical transition, and Wye is used for combining 2 lines into one horizontal line to maintain a flow without causing clogging.

Can P trap be lower than drain pipe?

You attach the p-trap directly to the drainage and manuever the p-traps exits into you existing drain. It is not ideal to have the p-trap below the the exit drain because water gravity has to force the water out instead of it flowing downwards naturally. They both work and have seen it many times.

How do you snake a double sanitary tee?

Insert one down each sink. Turn them both on simultaneously and they’ll inflate until they block up the sinks, at which point they’ll fill the plumbing in between the two and use pressure to push the blockage down the only remaining path.

Can sink waste go into toilet waste?

Yes, but the sink must empty into the toilet drain. Toilets have the largest drainpipe, so plumbers empty the bathroom sink drain, which is smaller in diameter, into the toilet drain line. They install a common vent that allows water and waste to drain without forming an airlock.

Can a toilet and shower share the same drain?

In the US, with modern regulations, in most municipalities, yes, they do. The water and solids from your toilet waste line and the water from your drains end up in the same sewer line, if you have access to a municipal sewer system.

What is a toilet trap arm?

The toilet’s trap arm, also referred to as the fixture drain, is the pipe between the trap and the vent. … That means your fixture drain can have an unlimited distance (909.1). Keep in mind your toilet still needs a vent, but your trap arm can be as long as necessary.

Is it OK to use Fernco coupling in a wall?

Fernco (Rubber) fittings are not approved in wall framing unless they have a metal sheathed hose clamp assembly covering the entire fitting as part of the design, Which limit them to straight couplings or reducing couplings. The reason is that vermin can chew through the rubber.

How much heat can a Fernco take?

What is the temperature rating? Our couplings are rated up to 140 degrees, but sporadically.

How much pressure can a Fernco hold?

SKU: 53843W Model: QC-101nominal size: 1-1/2″pressure rating: 4.3 psidiameter: 1.895″ Inner Diameter x 2.269″ Outer Diametermaterial: PVC

Are s traps illegal in UK?

An S trap is prohibited under Uniform Plumbing Code. If you have an S Trap, you should consider hiring a licensed plumber to complete repairs so you do not smell sewer gases.

How long can a shower waste pipe be?

2. The wetroom waste pipe should be 40mm minimum diameter solvent weld, with a maximum horizontal run of 3m or 50mm diameter can be 4m. If you need a longer run then an air admittance valve should be added to the pipework making runs up to 10m possible. The regulations are set for baths and not specific to showers.

Do you have to have a stench pipe?

2 Answers from MyBuilder Plumbers. All bathrooms need a vent pipe otherwise there will be a possibility that the traps will be pulled when things like the toilet is flushed or the bath emptied. A Durgo valve can be fitted internally instead of having to extent the soil pipe outside.
