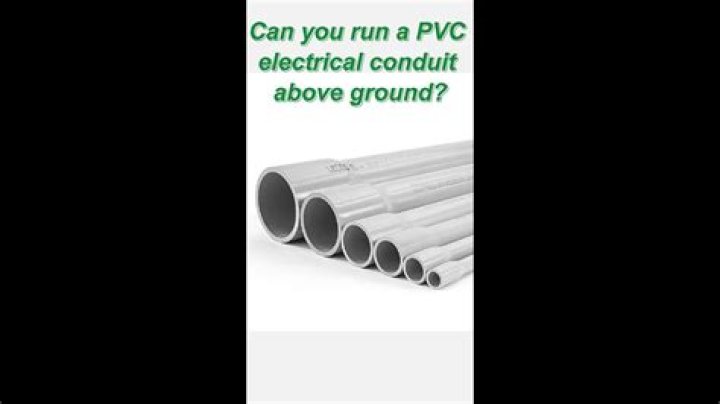

Can you run PVC conduit above ground

PVC conduit provides protection for electrical work that is buried underground. … Among all conduit types, PVC is lightweight and versatile. Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work. PVC conduit is also used for many electrical requirements.

Can you run PVC conduit above ground? - Google Search

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

Can PVC conduit be exposed?

Exposed — PVC conduit is permitted to be used for exposed work. PVC conduit used in an area subject to physical damage must be identified for the application [Sec. 352.10(F)]. Schedule 40 PVC conduit is permitted for exposed locations where not subject to physical damage.

How far above ground does conduit need to be?

Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

Can electrical lines be above ground?

The electric utilities will likely say that power lines are above ground because they are easier to repair and maintain. They will likely fail to mention it is also cheaper for them. Even though having power lines underground would save lives and protect equipment, the utilities do not want to make the investment.

What is the difference between Schedule 40 and Schedule 80 PVC conduit?

Both schedule 40 and 80 PVC are used widely around the world. Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch).

Can I use PVC conduit underground?

At 18 inches, you can use THWN-2 conductors inside a continuous length of PVC conduit, which protects the wire all the way through the trench to the house. At 24 inches you can bury underground feeder cable, using PVC conduit to 18 inches below ground only where the wire comes up.

Can you run Schedule 80 PVC above ground?

The UL listing says both 80 and 40 can be used in both above and underground installations.

Can you run conduit on outside of house?

Using conduit, circuits can be run along the exterior walls, then fed inside to junction boxes where outlets, switches and fixtures are needed.

Can PVC electrical conduit be used outdoors?

PVC conduit provides protection for electrical work that is buried underground. Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. … Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.

Article first time published on

Can you use PVC conduit in a garage?

Combining metal boxes and PVC conduit is fine, but unlike an all-metal system, PVC requires you to run a separate ground wire and bond it to each metal box or light fixture with either a screw or a special grounding clip.

Can you run PVC conduit indoors?

Some code-compliant PVC fittings can be used with ENT inside walls, floors, some ceilings or encased in concrete. Outdoor flexible nonmetallic tubing is strong, watertight, non-corrosive and weighs less. Metal or plastic boxes can be used with nonmetallic conduit. Always run a ground wire when using PVC conduit.

How do I run power to my shed above ground?

Running electrical lines above ground is usually not recommended for a shed. Instead, run wiring out to the shed via a specialized underground conduit. But be wary of installing this without identifying all other possible utility lines in its path.

How do you run electrical from outside above ground?

You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea. Schedule 40 polyvinyl chloride (PVC) conduit for electricity is gray and is rated for sunlight resistance.

Does outdoor electrical wire need to be in conduit?

Generally speaking, yes, outdoor wiring needs to be in conduit to protect it from physical damage. Type UF cable needs conduit when exposed, no need for conduit on the buried sections.

How deep does PVC conduit have to be buried?

Coated electrical cable in PVC conduit Currently, the National Electrical Code (NEC) tells us that the required burial depth of electrical cables in various rigid non-metallic conduits, such as PVC, is 18 inches.

What can I use for underground conduit?

THWN-2 wire, for example, is a standard type for running through underground conduit. Use thick-walled conduit at least 3/4 inch in diameter for this application. Never use thin-wall EMT conduit for underground applications. Running wire through Schedule 40 PVC conduit.

What is the best conduit to use underground?

We typically prefer using PVC conduit when running power to a remote location underground. That gives you a lot more protection over direct burial cable in the long run.

Can you glue Schedule 40 and 80 PVC?

Yes they can be glued together. The outside diameters are the same for each pipe but the inside diameter is smaller on sch 80 pipe. Sch 80 pipe is capable of handling more pressure, hence the thicker wall.

Which is stronger schedule 40 or 80 PVC pipe?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

What is the difference between white and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

How do you run a PVC conduit through an exterior wall?

1. Step 1: Drill a hole in the wall. …
2. Step 2: Cut and bend the conduit. …
3. Step 3: Slide the conduit through the hole. …
4. Step 4: Add conduit supports. …
5. Step 5: Pull the wire through the conduit. …
6. Step 6: Seal wall gaps with caulk. …
7. Step 7 (optional): Dig a trench.

How do you join PVC conduit?

When joining lengths of conduit, you simply solvent-glue the smooth end of one piece into the hubbed socket of another piece. Lengths of conduit can be cut with any saw, but the best way to cut PVC conduit is with a PVC tubing cutter, of the same type used to cut PVC plumbing pipe.

Does outdoor Romex need conduit?

Does Exposed Romex Need to Be in Conduit? When using any non-metallic wiring in an outdoor application, you should run the wiring through a conduit. Using a conduit is ideal because it is always better to add more protection to exterior wiring than not enough protection.

How deep do you have to bury electrical conduit?

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

Can you use flexible conduit outside?

Flexible Metal Conduit is a helically injury, flexible tubing usually made from aluminum. Because it can not be used outside or in other wet areas, Flexible Metal Conduit is rather restricted in its usefulness, yet there are a couple of applications where it is the clear selection.

Can I run Romex in conduit in garage?

Garages and basements are no exception. Whether you’re installing a new appliance or just diagnosing a faulty switch in the basement, a common question that arises is whether Romex can be left exposed. Code and common sense both dictate that Romex shouldn’t be left exposed but must run through conduits.

Should I use EMT or PVC conduit?

Some electricians like using EMT because it can be bent to accommodate specific raceway designs. This also means, though, that the tubing is much weaker and more likely to break than other rigid conduits. PVC conduit is very lightweight and thus easy to haul around and install.

Can you run Romex in garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

Do you have to glue electrical PVC conduit?

Yes, an electrical PVC conduit needs to be glued properly with PVC solvent cement or water and insects could get in there to damage the electrical wires, especially if the conduit is buried underground.

Can you use PEX for electrical conduit?

Pex tubing or any other plumbing pipe is not listed for use as an electrical raceway. If you just want some physical protection for the Cat 5 cable then PVC electrical conduit will perform nicely. Save your scrap pex for a plumbing project.
