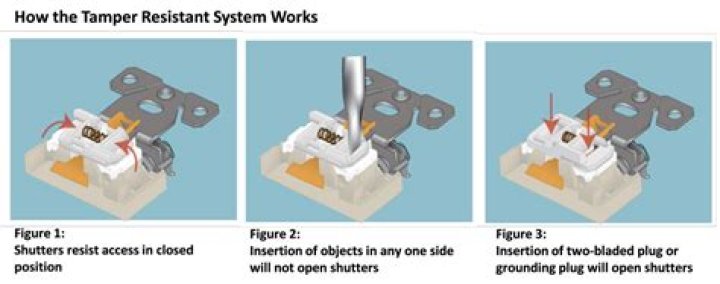

Do tamper resistant outlets work

Tamper-resistant outlets reduce the risk of electrical injuries, but they are not completely tamper-proof. Unfortunately, some people believe that tamper-resistant outlets are “child proof” when they are not. Tamper-resistant outlets do not prevent children from imitating adults and inserting plugs into outlets.

Should I use tamper resistant outlets?

As required by the 2008 national electrical code, tamper resistant GFCI’s should be installed in any new construction or renovation. Tamper resistant receptacles, commonly known as TRR, can help protect from electrical shock, injury, or even death.

Why is it recommended to install tamper resistant plug sockets in all bedrooms?

Each of the benefits of tamper-resistant outlets ensures your family’s health and safety. Dangers of electrocution drop, along with the risk of electrical fires caused by curious kids. Children may try to stick narrow objects into electrical outlets just to see what happens.

How do you get past a tamper resistant outlet?

If your tamper resistant outlet won’t open, there’s some consolation. These outlets loosen up with use. After installation, the best solution is simply to use the outlet a lot. Plug something in and unplug it about 100 times to loosen the outlet up.

Are tamper resistant outlets required in a garage?

Receptacles for garage-door openers located more than 5½ feet above the floor are required to be tamper-resistant. Floor receptacles located more than 18 inches from the wall are required to be tamper-resistant, even though 210.52 does not specify these receptacles as required receptacles.

How do you fix a tight electrical outlet?

1. Turn the power off to the outlet to prevent an electrical accident while adjusting the socket.
2. Insert a plug into the outlet partway. …
3. Push the plug in and pull it back out as you wiggle it up and down.

Why are my outlets so hard to plug into?

2 Answers. They are tamper resistant, as indicated by the letters “TR” stamped between the holes. The secret is to insert the plug squarely into the receptacle. The two little doors inside have to be pushed at the same time by the prongs of the plug.

Can I plug my TV into a GFCI outlet?

Can I Plug My TV Into A GFCI Outlet? You can plug your TV into a GFCI outlet. This is not an NEC or OSHA requirement but you can do it if you want. Though, television sets can cause false tripping in the GFCI outlet, for instance, in situations that involve 2-wire ungrounded TVs.

When did tamper resistant outlets become required?

Tamper resistant receptacles were first required by the 2008 edition of the National Electrical Code (NEC).

Are tamper resistant outlets required in kitchen?

Tamper-Resistant Outlets Requirement: All 15 amp and 20 amp outlets, whether GFCI or not, must be tamper-resistant in the following kitchen-related places: small appliance circuit, countertop space, wall, and hallway space.

Article first time published on

Do garage outlets need to be GFCI protected?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

Should garage outlets be GFCI?

All garage outlets must be GFCI. Ground-fault circuit interrupters protect users against shock by cutting off the power when they sense a short. It is an electrical violation to have non-GFCI outlets in your garage. … It’s important to install GFCI outlets so that you stay safe.

How far should receptacles be off the floor?

The standard height for wall outlet boxes is about 12 inches from the top of the floor covering to the bottom of the receptacle box (or 16 inches to the top of the box).

Why wont my plugs stay in the outlet?

When plugs won’t stay put in an outlet, the problem could be the prongs or the receptacle. Try multiple devices to make sure you have a loose outlet. Damaged contact points are the main cause of loose outlets, which typically happens over time. However, heat and sparks from bad wiring can also cause damage.

How do you lubricate an electric plug?

Originally Answered: Is there a safe way to “lubricate” a mains-outlet which is squeeky to plug into? A very slight touch of Vaseline on the projecting terminals of the plug is the answer. As little as possible to do the job. Do not try to lube the wall socket’s internal terminals – this will be achieved by the plug.

What is a tamper resistant GFCI outlet?

Outlets with a TR and GFCI rating are the safest outlets that you can install in your home, as they protect against potential electric shock. Tamper-Resistant Outlets. TR outlets protect the outlet from tampering and user from shock via spring-loaded shutters.

Are loose electrical outlets a fire hazard?

Because loose outlets can disrupt the flow of electricity, they have the potential to cause arcing, a serious fire hazard.

Are tamper resistant outlets code?

Tamper-resistant (TR) receptacles were first required within the 2008 edition of the National Electrical Code (NEC).

Does a surge protector work with a GFCI outlet?

Gfi’s are not compatible with surge protectors is the best way to sum it up. Now you could plug a portable GFI into the surge protector and it would work just fine. The surge protector has to be before the GFI. Gfi’s protect humans from electrocution by removing the hot if even a small amount of current goes to ground.

Can I use surge protector with GFCI?

Can I use a surge protector with a GFCI (ground fault circuit interrupter) outlet? No. Incompatible electronics within the GFCI and the surge protector can cause either to trip. GFCI outlets are placed in potentially wet locations such as sinks, bathrooms and garages.

Can I plug a fridge into a GFCI outlet?

A refrigerator shouldn’t be plugged into a GFCI outlet. GFCI outlets are used in areas of the home with water or moisture. These include bathrooms, basements, and kitchens. … The problem with refrigerators is that they can cause unneeded trips in GFCI outlets.

Should all kitchen outlets be GFCI?

In kitchens, all outlets that serve countertop surfaces should be equipped with GFCI outlet protection. That would include any outlets on walls, behind wet areas (sinks, etc.) that have features such as countertop breakfast bars (open counter surfaces above sinks used to sit at on the opposite side).

Does a dishwasher need a GFCI?

The 2014 NEC has a new requirement for ground-fault circuit interrupter (GFCI) protection of dishwashers in dwelling units. … The new requirement is for GFCI protection of “outlets” that supply dishwashers installed in dwelling-unit locations.

Do all countertop outlets need to be GFCI?

All countertop receptacle outlets must be protected by a GFCI device installed at the outlet or by GFCI circuit breakers. A kitchen must have two 20-amp circuits for countertop appliances. There should be countertop receptacles installed so that no point along the counter is more than 2 ft. from an outlet.

What is the code for garage outlets?

However, the code is just a minimum set of installation rules. The basic rule for garage receptacles is that one receptacle outlet needs to be installed in each vehicle bay and not more than 5 ½ feet above the floor.

Do garages need AFCI protection?

The 2017 National Electrical Code (NEC) requires the protection of an arc fault circuit interrupter (AFCI) for 15 and 20 amp circuits in all newly built residential areas, but they are not needed in bathrooms, garages, or outdoor areas.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

Why is there a GFCI outlet in the garage?

GFCIs are required in garages because they prevent “ground fault” situations that can result in electric shock. Ground faults cause more than 80% of all electrical equipment failure and can be caused by: Worn insulation. Moisture.

Does a garage door opener need a GFCI?

Yes, a garage door opener must have GFCI protection. But a GFCI-protected circuit for the ceiling receptacle was not necessary until the 2008 edition of the National Electrical Code (NEC), so you may find older articles on the web that indicate otherwise.

How high should receptacles be in a garage?

Garage electrical outlet location: In the garage electrical outlets should be 18″ or more above floor level.

What is code height for electrical switches?

Many builders position switch boxes so the bottom of the box is 48 inches above the floor. To satisfy the accessibility requirements of the Fair Housing Act, however, the switch itself should be no more than 48 inches from the floor.
