Does a 700r4 have a vacuum modulator

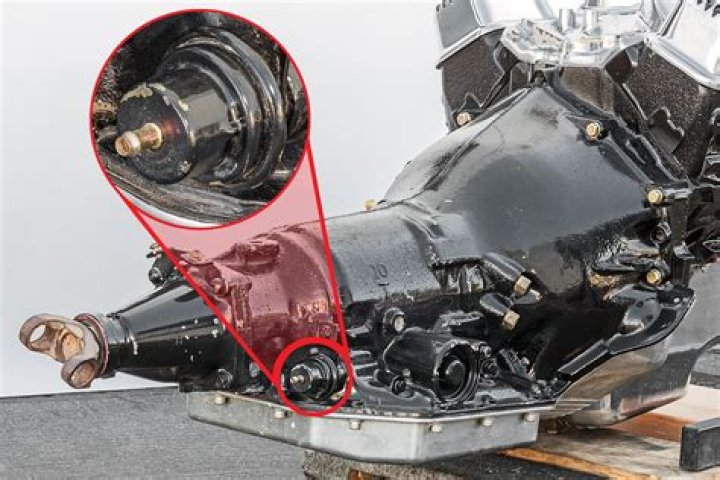

The vacuum modulator is on the passenger side of the truck on the rear of the transmission just forward of the tail shaft cover. Pull the hose off and lay it aside. When the hose is removed, look for transmission fluid in the hose. Shake the end of the hose and see if any transmission fluid comes out.

Where is the vacuum modulator located?

The vacuum modulator is on the passenger side of the truck on the rear of the transmission just forward of the tail shaft cover. Pull the hose off and lay it aside. When the hose is removed, look for transmission fluid in the hose. Shake the end of the hose and see if any transmission fluid comes out.

What does the governor do in a 700R4?

The transmission governor on a 700R4 is used to regulate the speed at which the transmission shifts into the next higher or lower gear. It accomplishes this through the use of two sets of centrifugal weights, each a different weight.

What are the symptoms of a bad transmission modulator?

A whistling sound (from a leaking diaphragm)
White smoke coming out of the exhaust (from a leaking diaphragm)
Early or late shifting.
Hard shifts (usually causing the car to jerk)
A rough idle.

What year 700R4 is best?

Generally, 1987 and up TH700R4s or 1990-’93 4L60 units are the most desirable. Before trying to install this transmission in your vehicle, you should thoroughly check the unit and refurbish it, if necessary.

What happens when a vacuum modulator goes bad?

The main symptom you will notice is weak engine performance. If the diaphragm of the vacuum modulator were to have a leak in it, you will have a leaky vacuum and your EGR system will shut off. If the vacuum leak is too severe, then you will notice less power in your engine as well as acceleration problems.

Do transmissions have vacuum lines?

The transmission vacuum modulator valve determines how much load is on the engine so the transmission can shift properly. It has a vacuum line that connects to the intake and measures the amount of vacuum in the engine.

Can a vacuum line cause transmission problems?

The transmission can be controlled. … A vacuum leak will cause the engine performance to suffer, causing load and throttle position issues which could affect transmission shifting.

How do I adjust vacuum modulator?

Remove the vacuum line from the end of the vacuum modulator. Use a small slotted screwdriver to turn the adjuster that is located inside of the vacuum fitting. Turn the adjuster clockwise for earlier shifts and counterclockwise for later shifts. Make small adjustments of 1/8 to 1/4 turn at a time.

How much vacuum does a vacuum modulator need?

The vacuum pump must be reinstalled and pumped up to 20 inches of vacuum to witness the change in pressure created by turning the screw in the modulator.

Article first time published on

What does EGR vacuum modulator do?

The EGR vacuum modulator is a component found on some EGR systems. It controls the flow of the EGR system by using a vacuum operated diaphragm to increase or decrease EGR flow. … For vehicles equipped with them, the EGR vacuum modulator is one of the most important components of the EGR system.

What speed should 700R4 shift at?

We will say that, when properly adjusted, the First-to-Second shift should occur at 15-20 mph; Second-to-Third shift at 25-30 mph; and Third-to-Fourth shift at 40-45 mph.

Is a 700R4 good for drag racing?

Racing with a stock 700R4 while in overdrive risks the integrity of the O/D band and limits your performance in a drag race, and can ruin the transmission. But a custom built 700R4 is made of sterner stuff, and reduces the lag time introduced by sloppy and sluggish shifts.

What engines are compatible with a 700R4 transmission?

MODELENGINECAPRICE3.8L / 5.0LCAMARO2.8L / 5.0LSUBURBAN6.2LS10 PICKUP2.5L / 2.8L

What vehicles came with 700R4?

Blazer: 1982-1991.
Caprice: 1982-1992.
Corvette: 1982-1992.
Camaro: 1983-1992.
Suburban: 1984-1992.
Astro Van: 1985-1992.
S10 Blazer: 1989-1992.
S10 Pickup: 1989-1991.

How do I know if my kick down cable is bad?

The transmission shifts hard. An automatic transmission has multiple parts that are engineered to produce a smooth transition from one gear to another. …
The car shifts early and fast. …
The transmission shifts slow and late.

What are the symptoms of a vacuum leak?

Symptoms of a vacuum leak include the Check Engine light, rough idle, stalling and a hissing sound coming from the engine bay. The engine may run well at higher RPMs, but surges, runs rough and struggles to maintain stable RPMs at idle. Often, the engine stalls when stopping.

How do you check a transmission control module?

The transmission control module can often be found below the cover at the back of the transmission case. It should be just below the engine control module’s position. Sometimes it’s found under the center console in the interior or even under the hood near the battery or inner fender panel.

What can cause a transmission to not shift?

Degraded Transmission Fluid. …
Faulty Clutch Master Cylinder (Manual Transmission) …
Worn Clutch (Manual Transmission) …
Bad Torque Converter (Automatic Transmission) …
Damaged Shift Interlock Solenoid (Automatic Transmission)

Does a Powerglide transmission have a vacuum modulator?

The vacuum modulator is a vital component of automatic transmissions. Simply adjust the screw inside the vacuum nipple for more or less diaphragm pre-load. …

What does a modulator valve do on an automatic transmission?

The modulator valve is attached to the intake manifold with a vacuum line. It senses intake manifold vacuum and shifts the transmission accordingly: When you press down on the gas pedal, the throttle plate opens and the vacuum is reduced. The modulator valve will cause the transmission to downshift.

What does the vacuum modulator on a Turbo 350 do?

The vacuum modulator is a vital component of automatic transmissions. It tells the transmission what kind of load is being put on it, allowing the transmission to react with the proper line pressures and shift points.

Can a vacuum leak cause a transmission to slip?

A vacuum leak will cause the engine performance to suffer, causing possible load and throttle position issues, which could indirectly affect transmission shifting.

What does a vacuum leak sound like when accelerating?

A car with a leaking vacuum line will often have a rough or uneven idling. … When you accelerate, the car will lack power and respond slowly to pressing down on the acceleration petal. Vacuum leaks often produce an audible hissing noise created by air being drawn through the failed hose.

Can a vacuum leak cause reduced engine power?

A vehicle with a vacuum leak will often have poor acceleration and reduced engine power. This is due to the escaping engine vacuum that reduces the overall force and pressure produced by the engine during combustion.

Can typically be replaced without removing the transmission from the vehicle?

The good news is that most car manufacturers make it easy for us to repair and replace components on your car when they break. … External components like shifter cables and bushings normally don’t require us to drop the transmission from your car either.

Why do automatics need vacuums?

With the assistance of an automatic transmission vacuum modulator, it is very important to monitor the load you apply on your car’s engine. This is because your car’s transmission can only shift the gears of your car properly by maintaining an appropriate level of vacuum load.

How do you test an EGR vacuum modulator?

(a) Disconnect the vacuum hoses from ports P, Q and R of the EGR vacuum modulator. (b) Block ports P and R with your finger. (c) Bllow air into port Q, and check that the air passes through to the air filter freely.

What are the symptoms of a bad EGR vacuum solenoid?

Your engine has a rough idle. …
Your car has poor performance. …
You have increased fuel consumption. …
Your car frequently stalls when idling. …
You can smell fuel. …
Your engine management light stays on.

Can you bypass an EGR valve?

There are several options available to you when it comes to the EGR valve. You can replace the valve with a new one. You can clean your valve with carb cleaner and refit it. Or, you can blank or bypass the valve completely.
