Does GMAW produce slag

In GMAW, inert or active shielding gas is supplied at the welding zone. … The flux (electrode coating) produces slag on weld bead. This slag can lead to defects or can hamper appearance.

Does MIG welding produce slag?

Slag is normally seen as elongated lines either continuous or discontinuous along the length of the weld. … Slag inclusions are usually associated with the flux processes, ie MMA, FCA and submerged arc, but they can also occur in MIG welding.

What type of welding produces slag?

Welding slag is a form of slag, or vitreous material produced as a byproduct of some arc welding processes, most specifically shielded metal arc welding (also known as stick welding), submerged arc welding, and flux-cored arc welding.

Why is there no slag in GMAW?

In GMAW, however, the electrode wire does not have a flux coating, and a separate shielding gas is employed to protect the weld. This eliminates slag, the hard residue from the flux that builds up after welding and must be chipped off to reveal the completed weld.

What type of welding does not produce slag?

Gas metal arc welding (GMAW or MIG welding) and gas tungsten arc welding (GTAW or TIG welding) both use an inert or semi-inert gas mixture to protect the welds from contamination, therefore producing no slag layer on the weld.

What are slag inclusions?

Slag inclusions are nonmetallic particles trapped in the weld-metal or at the weld interface. Slag inclusions result from faulty welding technique, improper access to the joint, or both. … Dipping the tungsten electrode in the molten weld-metal or using too high current that melts the tungsten can cause inclusions.

What is difference between flux and slag?

Hint: Flux is a substance which we add to molten metal to bond with impurities that can be removed afterwards, slag is a waste material which is removed. Fluxes are used during refining of metals and slag is impure residue.

Does FCAW produce slag?

Flux-cored arc welding (FCAW or FCA) is a semi-automatic or automatic arc welding process. … An externally supplied shielding gas is sometimes used, but often the flux itself is relied upon to generate the necessary protection from the atmosphere, producing both gaseous protection and liquid slag protecting the weld.

Is GMAW manual or semi-automatic?

GMAW and FCAW are semi-automatic processes.

What are the advantages of GMAW over MMAW?

The Advantages of GMAW GMAW can be fully automatic, resulting in higher productivity. GMAW can be used for all metals and alloys. GMAW can be used in all weld positions. GMAW produces lower levels of fumes as compared to FCAW or SMAW.

Article first time published on

Why slag is formed in welding?

It protects the weld from oxidation and contamination from the atmosphere. It also helps keep the molten weld pool in the joint as it cools, which is especially important for out-of-position welding. Slag forms when the heat from the arc breaks down the filler metal and the base material to form a molten weld pool.

How slag is formed?

The slag occurs as a molten liquid melt and is a complex solution of silicates and oxides that solidifies upon cooling. … These impurities consist of carbon as gaseous carbon monoxide, and silicon, manganese, phosphorus and some iron as liquid oxides, which combine with lime and dolime to form the steel slag.

Why fluxes are used in welding?

The main function of weld flux is to oxidize the base and filler materials during the welding process. … Flux dissolves the metal surface oxides that facilitate the molten metal wetting and acts as a barrier to oxygen and minimizes oxidation. Fluxes are used to generate a surface for wetting the solder.

Can you get slag in TIG welding?

Because the Argon gas protects the weld puddle from contamination, no flux is required or used in TIG welding and there is no slag to block your view of the weld puddle. Also, the finished weld will not have slag to remove between weld passes.

Why electrode is coated with flux?

The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.

What is the function of slag?

Slag floats on the surface of the molten metal, protecting it from oxidation by the atmosphere and keeping it clean. Slag forms a coarse aggregate used in certain concretes; it is used as a road material and ballast and as a source of available phosphate fertilizer.

What is electrolytic refining?

Electrolytic refining is a process of refining a metal (mainly copper) by the process of electrolysis. … The clean or pure metal is formed at the cathode when the electrical current of a sufficient voltage is applied by dissolving impure metal at the anode.

What is the difference between gangue and slag?

Complete answer: Gangue means the impurities present in the ore. The next term is flux. During the process of removing the impurities present in the ore some of the impurities or the gangue cannot be easily removed. … The substances which are formed when gangue and flux combine are known as slag.

What is the most probable cause of slag inclusion?

One of the most common causes of slag inclusions is the presence of coatings on certain metals. Aluminum, for example, is often coated in aluminum oxide, which forms rapidly when aluminum is exposed to air.

What are the remedies of slag inclusion?

Remedies of Slag Inclusion Adjusting the angle of the electrode. Using too low welding current. Increasing the current density. Insufficient space for the puddle of molten weld metals.

What causes undercut?

In welding, undercutting is when the weld reduces the cross-sectional thickness of the base metal. … One reason for this defect is excessive current, causing the edges of the joint to melt and drain into the weld; this leaves a drain-like impression along the length of the weld.

What type of output is in the GMAW?

The GMAW process commonly uses a constant voltage power source (GMAW-CV) that allows for a relatively constant welding voltage output over a range of welding currents.

Which of the below is an advantage of GMAW?

The Advantages of GMAW GMAW can be fully automatic, resulting in higher productivity. GMAW can be used for all metals and alloys. GMAW can be used in all weld positions. GMAW produces lower levels of fumes as compared to FCAW or SMAW.

What is the difference between SMAW and GMAW?

SMAW and GMAW differ in how they shield the molten electrode from atmospheric gases. SMAW encases the electrode in a layer of material known as flux. … For this reason, GMAW also goes by the name of metal inert gas welding, or MIG welding.

What is the difference between FCAW and GMAW?

GMAW employs a sloid wire-type electrode (diameter 2 – 5 mm). FCAW employs a hollow tubular electrode (diameter 0.9 – 3.2 mm). Based on the volume of the filler metal, GMAW electrode is cheaper. For same volume of filler metal, FCAW electrode is costlier.

How the FCAW process works?

Flux-Cored Arc Welding (FCAW) uses the heat generated by a DC electric arc to fuse the metal in the joint area. … The entire arc area is covered by a shielding gas, which protects the molten weld pool from the atmosphere. FCAW is a highly productive process for a range of plain carbon, alloy, stainless and duplex steels.

What is GMAW welding process?

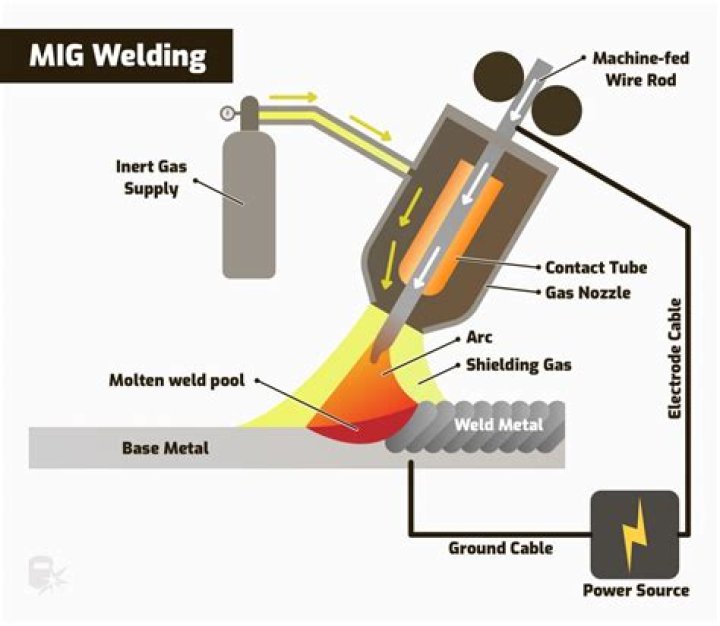

GMAW is a welding process which joins metals by heating the metals to their melting point with an electric arc and the arc is struck between a continuous, consumable bare (not covered) electrode wire and the work piece; whereas the arc is shielded from atmospheric contaminants by a shielding gas.

Where is GMAW used?

It quickly became popular because it was more cost-effective than GTAW. Today, GMAW is used in industries ranging from construction and manufacturing to car racing and vehicle production. Another term for GMAW is metal inert gas (MIG) welding.

What is the difference between SMAW and MMAW?

Manual metal arc welding (MMA or MMAW), also known as shielded metal arc welding (SMAW), flux shielded arc welding or stick welding, is a process where the arc is struck between an electrode flux coated metal rod and the work piece. Both the rod and the surface of the work piece melt to create a weld.

Is GMAW simple to learn?

In GMAW the electrode is a roll of wire which the welder feeds out of a ‘gun’ to the work piece. You control the speed of the wire, so you can make long welds without stopping to replace a rod. This type of welding is generally considered to be the easiest to learn.

What causes arc strikes?

Arc strike This is a defect caused by instantaneously striking an arc on the base material. In other words, an arc strike is a spot of failed arc ignition which was not fused by subsequent welding and remained on the base material. Arc strike may be the cause of cracking in the base material.
