How do gutters run underground

To direct the water farther away from your house’s foundation you can to install underground downspouts. These downspouts filter leaves and debris from the roof before they enter the ground and end several feet away from the foundation. The water simply drains into the ground at the end of the underground downspouts.

Where do gutters go underground?

Some homes connect their gutter downspouts to drains that go underground. We call these gutter drains “underground drains“. The purpose of the underground drain is to re-direct the water away from the home, usually to the street or the sidewalk. Sometimes they even connect directly to the sewer line underground.

Are underground gutters worth it?

Underground downspouts are considered the more effective alternative to above-ground downspouts because they’re easy to tuck out of the way. If you have a large lawn or just want to preserve the aesthetic of your landscaping, underground downspouts will keep your home safe without turning into an eyesore.

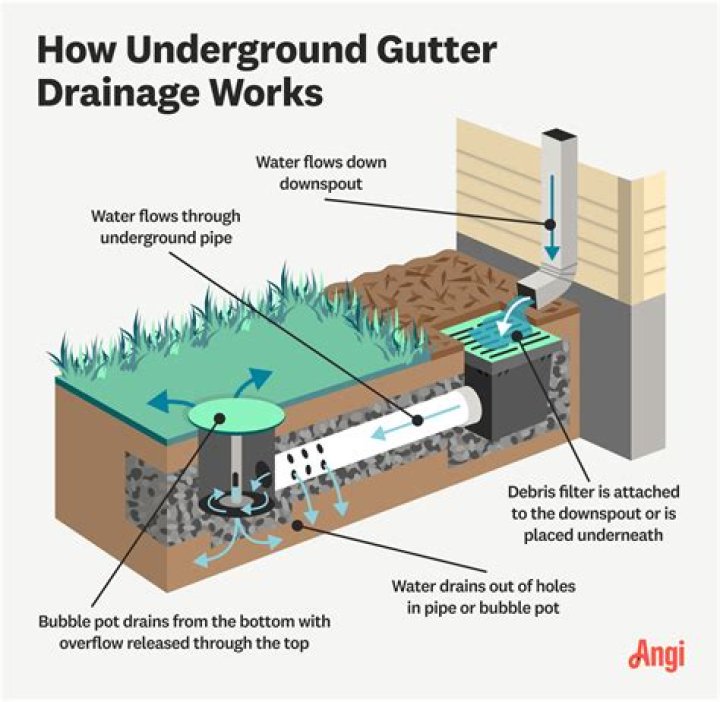

How do underground gutter drains work?

After you have installed your gutters and your downspouts, the downspouts will run to the ground at your foundation. … Pop up gutter drains are installed at the end of an underground pipe to return the water to the surface. The pop up gutter drain will help the water resurface and expel it onto the ground.

How deep do underground gutters need to be?

*Downspouts should be buried at least 12 inches, although the established frost line is between 36 and 48 inches. You’ll obviously have to dig more, but the extra effort could prevent you from having to thaw your gutters and downspouts during winter if you live somewhere cold.

How deep should I bury my gutter drain pipe?

I usually dig a trench about 12 to 14 inches deep for downspout drain lines. If the lot is fairly flat, the pipes will get deeper the farther they extend, as you should create 1/8 inch of fall for every foot the pipes run.

Where does gutter drain to?

On some homes, the downspout empties into a drainage system that brings the water away from the house. In some areas it empties onto the street and then travels downhill eventually finding its way back to the ocean. In other areas, it empties into an underground sewer system.

How do you drain underground gutters?

1. STEP 1: DIG TRENCHES FOR DRAINAGE PIPE. BEFORE digging, CALL 811 to have utility lines marked. …
2. STEP 2: ASSEMBLE AND PLACE THE CATCH BASIN. Now that the trench is dug, you can assemble the catch basin. …
3. STEP 3: LAY THE DRAINPIPE. …
4. STEP 4: ATTACH THE DRAINAGE POP-UP EMITTER. …
5. sTEP 5: BURY THE DOWNSPOUT WITH DIRT.

Can gutters drain into sewer?

And lastly to direct water out of your property to avoid flooding. But, can gutters drain into the sewer? Yes, the contractors installing the gutters can connect the gutter outlet to a sewer line. … If not maintained adequately, gutters can cause water overflows.

Why do people bury downspouts?

The water redirected from downspout tails can make parts of your lawn very wet and muddy. In addition, they just don’t look very aesthetically pleasing. Burying your downspouts gives you the power to choose which part of your property receives the rainwater and increases the curb appeal of your home overall.

Article first time published on

Can a French drain drain underground?

A professional can install an exterior French drain around two to three feet underground so it can move surface water away from your home and property. The drain length will depend on how far away you would like the water released.

What is an underground drain?

Underground drainage is the general term given to the system of pipes and fittings that is installed below ground level to transport foul drainage or rainwater flows to a sewage treatment facility or, in the case of rainwater, a soakaway or water course.

How far should gutters drain from the house?

Therefore, gutters should drain properly. Gutters should drain water to at least 4-6 feet but preferably 10 feet away from the house. Ensure you connect the gutter securely to the eave of the roof. Additionally, each downspout should drain a maximum of 35 feet of gutter.

How much does it cost to bury downspouts?

Gutter Drainage and Buried Downspouts. You’ll pay $100 to $300 per downspout if they must bury downspout extensions. If it’s a simple matter of connecting to an existing system, you may pay a little less. If you don’t already have a storm drainage system, you’ll need to install one for an additional $1,500 on average.

Where do downpipes drain to?

They are most commonly found attached to the corners of a building. The discharge from a downpipe can be: Directly connected to a drain discharging into a soakaway. Directly connected to a drain discharging into a surface water sewer.

How deep is the drain pipe?

Drainage Ditch Depth A typical drainage ditch is 12 to 18 inches deep and 6 inches wide.

How do you trace underground drain pipes?

1. Contact a city maintenance person and ask. In small towns there is usually one man who can tell you where the sewer lines are located.
2. Ask at city hall if you live in a larger town or city. …
3. Contact a plumber. …
4. Witch or dowse for the sewer line. …
5. Climb up to your roof sewer vent.

How do you find out where your drains run?

Perhaps the best way to obtain this information is to contact your local water authority, which is also the organization that would be responsible for any problems that may arise with shared drains. Another way to check and see if you have a shared drain is to check with the sewage company that services your area.

Can gutter water go into soil pipe?

Information on sizing gutters and rainwater pipes is given in Approved Document H. Additional rainwater pipes can discharge onto the ground, or into new or existing underground pipework. If you decide to allow rainwater pipes to discharge onto the ground, you need to make sure the water will not damage foundations (eg.

How deep should rainwater pipes be?

According to ‘The Department of the Environment’, they recommend that pipes should be buried at least 600mm (two feet) underground. At this depth, the soil acts as a natural insulator and prevents them freezing.

Does rainwater go into the sewer?

Surface water drainage occurs when rainwater from your property drains into the sewer. Your company collects and treats this surface water. There is a charge for this service.

Where does rainwater go from house?

The foul water from your property either drains into the main sewer or, if your property is not attached to a main sewer line, it drains into a septic tank. Surface Water: is water that is fairly clean. Surface water includes rainwater runoff from roofs, gutters, pond overflows, French drains, and driveways.

Why do we pay for rainwater removal?

Part of your water bill pays for us to take away the rainwater that falls onto your home – including your roof, your driveway, your path – and also the public highway. You’ll find this charge itemised on your bill, under the heading ‘Rainwater removal’.

Where does rainwater from gutters go?

Surface water drainage ensures that any rainwater which runs off your property’s roof or paved areas are drained away, to prevent flooding. Surface water is collected in drains and gullies to flow either into the public sewer system or a soakaway.

What are ground gutters?

A ground gutter is essentially a trench dug around your home that can divert water away from your property. Builders begin building a ground gutter by digging a trench along the foundation wall.

Why do French drains fail?

Over time, a French drain may become clogged. Tiny soil and clay granules slip through the pores of the landscape fabric and gradually build up inside the pipe. Another common cause of French drain clogs is root intrusion from grass, shrubs, and trees.

Where do French drains end?

Which End is Up? The two ends of a French drain system are: The drain field, or high end, where excess ground water enters the drain pipes. The drain exit, or lowest point, where water leaves the system.

How much does a French drain cost?

French drain Installation PricesMinimum cost$2,000Maximum cost$10,000

What fall should Underground drainage have?

A 110mm foul drain taking the discharge of less than 1 l/s should be laid at a 1:40 (25mm per metre) fall. A foul drain taking the discharge from a minimum of one WC can be laid at 1:80 (12.5mm per metre). Gullies incorporating in foul water or combined drainage systems must have a 50mm minimum water seal.

Can underground drainage be used above ground?

Above ground PVCu drainage pipe and fittings can only be used above ground. They will function if installed underground, but are not manufactured to the correct standards for this application, Building Regulations Part H state that PVCu materials for below ground gravity drainage should be to BS EN 1401 or BS EN 13476.

What is the minimum depth of a sewer line?

On average, trenches should be around 12-24 inches-deep, and wide enough to house your pipe comfortably before filling it in with soil and sod. As we’ve mentioned, in cold weather regions, this will need to be deeper or you’ll have problems with your sewage freezing.
