How do I adjust the pressure on my pressure tank
By Mason Cooper
With the pump breaker OFF, drain tank of all water by opening a faucet in the system.Remove protective air valve cap. … Check pressure in the tank with your pressure gauge.Release or add air as necessary to make the pressure 2 psi below the pressure switch pump cut-in setting.
How do you adjust the pressure on a bladder tank?
- With the pump breaker OFF, drain tank of all water by opening a faucet in the system.
- Remove protective air valve cap. …
- Check pressure in the tank with your pressure gauge.
- Release or add air as necessary to make the pressure 2 psi below the pressure switch pump cut-in setting.
What are the symptoms of a bad pressure tank?
You can check the gauge down at the bottom and if you’re running water of any sort and that pressure is bouncing up to your top, which is 60 PSI (usually), down to a 40, and it’s doing that a lot and its very frequent, then usually that is a bad tank.
What PSI should a water pressure tank be at?
Your well tank’s pressure should be set at 2 psi below the pressure switch’s cut-on point. This differs depending on your tank’s pressure settings. Most well tanks come set at 30/50. The cut-on pressure for the well pump is 30 psi, so the pressure of the tank should have a pressure of 28 psi.How do I increase water pressure in my water tank?

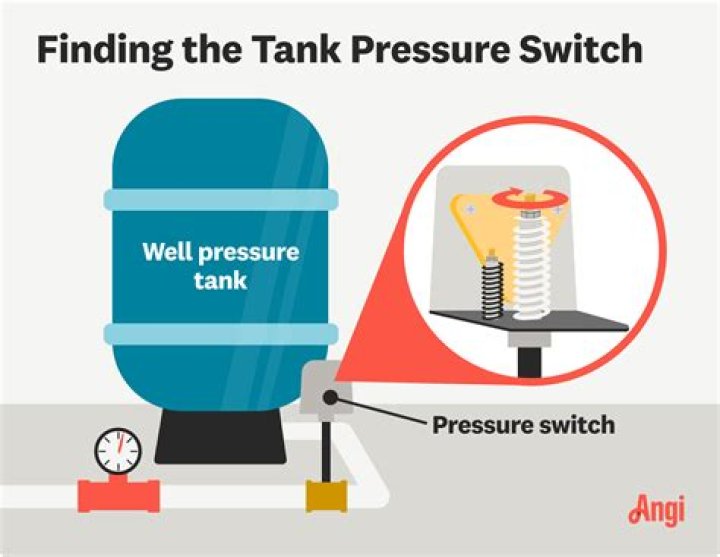

To raise the system pressure, first turn off the power to the pump and remove the cap on top of the pressure switch. Here you will see two threaded posts, one tall and one short, with a nut around each. Do not touch the short post. To increase water pressure, give the plastic nut on the tall post a clockwise turn.
Why is my pressure tank not filling with water?
Bladder tanks can become waterlogged for many reasons. Some of the more common reasons are: Sediment, such as iron and manganese, can coat the surface of the bladder, causing it to harden and become less flexible. Sediments can plug the fill or draw line, preventing the tank from filling and emptying normally.
Is 70 psi too high for water pressure?
How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.
Will a bigger pressure tank increase water pressure?
A pressure tank creates water pressure by using compressed air to bear down on the water. … The bigger the tank you have the larger the drawdown (actual amount of water stored) you will have. A larger drawdown means longer run time and therefore less cycles.How do I know if my pressure tank is waterlogged?
- When using water, you can hear the repeated “click, click, click” of the pressure switch. …
- Your water pressure may fluctuate or seem to “pulsate” …
- The pressure gauge reading will jump around. …
- Your well pump short cycles.
Normal well water pressure should fall between 40 and 60 psi, so if your pressure is outside the normal range, adjust the pressure switch.
Article first time published onWhat happens if pressure tank pressure is low?
If tank pressure drops, the bladder may have a tear or hole in it. A tank is waterlogged if it is completely filled with water or has too much water to function correctly. Waterlogged bladder pressure tanks contribute to the following problems : The pump motor cycles – turns on and off – too often.
What causes a pressure tank to lose pressure?
An inflated air bladder inside the storage tank imposes pressure on well water in the tank. As the water level in the tank drops from household demand, pressure in the tank declines to a preset minimum. The well pump then actuates to pump more water into the tank and restore pressure.
Why is my well pump not building pressure?
The water pump may have suffered internal damage to a seal, bearing, or impeller. The motor will keep running but the pump is unable to develop normal pressures. “Damage” may include a broken impeller blade, scale or debris clogging the impeller or other pump components, or a failing pump seal or bearing.
Why does my pressure tank keep turning on and off?
Short cycling of a water pump which is defined at SHORT CYCLING WATER PUMP means that the water pump or “well pump” turns on and off too rapidly or too frequently when water is being run in the building. … The most-common cause of pump short-cycling is loss of air in the water pressure tank.
Why am I getting air in my water lines?
The main cause of air in the water lines is water system maintenance. Cutting off the water supply for a period of time can allow air to enter the system. (Running faucets briefly usually resolves this problem.) Maintenance work on the water main may also introduce air into your system.
What happens when a well pressure tank goes bad?
Over time, your pipes may break. Water hammers can occur when a well pressure tank is no longer able to maintain a constant, optimal water pressure in your home. Instead, water flow is more apt to experience fluctuations that result in water hammers.
How do I increase water pressure in my cold water tank?
If your cold water tank is not in the loft space and is in a cupboard instead, you can increase your home’s water pressure by moving the cold water tank to a high position. This gives the water further to fall, which will increase the flow and pressure of the water through the pipes.
How do I turn my water pressure down?
- Turn Off the Water. Locate the water main and slowly turn the valve to the off position.
- Adjust the Pressure. The regulator will have a screw or bolt and a locking nut system. …
- Re-test the System. …
- Secure the Lock Nut. …
- Turn the Water Back On.
Is 100 psi water pressure too high?
If the pressure of the water entering your house is 100 psi or above, it can damage the plumbing. The pressure will cause dripping faucets and leaks in the pipes. It’s also harmful to water-using appliances, such as water heaters, dishwashers, and laundry machines.
How long does it take for a pressure tank to fill?
With the old conventional pressure tank method, the pressure tank fills at the rate the pump can produce, less the amount of water being used at the time. So if you have a 10 GPM pump and a tank with 10 gallons of draw down, the tank will fill in 1 minute if no one is using water.
Is there supposed to be water in a pressure tank?
Your pressure tank contains two things: water (at the bottom) and compressed air (at the top). … Once maximum pressure is reached (typically 50 to 60 psi), the pump shuts off. When you turn on the water in your home, the compressed air forces water out of the tank.
What is the life expectancy of a pressure tank?
A typical pressure tank can last 10-15+ years. However, just as the case with many water well products that you buy today, the quality of the tank will have the most influence on the longevity of your tank.
How do I know if I have a shallow or deep well?
The diameter of your well casing determines what type of well pump you need. If you do not have a well casing, you have a shallow well. … If your well casing is 4” or more in diameter, you can use either a jet well pump or a deep well submersible pump, depending on the depth of your well.
How do I adjust my air volume valve?
Turning the US Gauge WJ AVC screw counter-clockwise: Loosening the lock nut and turning the center adjusting screw counter-clockwise (backing the screw out, or to the left) will increase the amount of air vented from the tank or the rate at which it is vented until rising water level in the tank closes the valve.
Does the size of a water pressure tank matter?
An important thing to remember, the higher the operating pressure – the larger the tank must be. Pressure and tank size have a direct correlation – as one increases, so does the other. The higher the pressure setting, the less the drawdown is and thus, the need for larger tank capacity.
What size water tank do I need for a family of 4?
So with a family of 4 that has visitors staying occasionally, you could need 225,000 -250,000L of water per year. As your tank should fill up by the end of winter, you may not need a 250,000L tank but simply enough water in storage to get you through the 6-7 months of dry weather with a bit of buffer.
What size pressurized well tank do I need?
The minimum runtime rule of thumb is any pump operating at 10 gallons per minute (GPM) or under should be producing one gallon per minute of runtime. (For example, 10 GPM flow rate x 1 = 10 gallon drawdown capacity.) Anything above 10 GPM should be producing 1.5 gallons per minute of runtime.
Is 55 PSI water pressure good?
The water pressure in a plumbing system should be between 45 and 55 psi (pounds per square inch). If the pressure rises above 60 psi, it can create problems for the plumbing, including damage to the pipes. In most cases of high water pressure, a professional must analyze the problem and find a solution.
