How do I enable IGMP snooping

To enable IGMP snooping on a specific VLAN, use the ip igmp snooping vlan enable command in switch configuration mode. To return to the default, use the no form of this command. IGMP snooping can be enabled only on static VLANs. IGMPv1, IGMPv2, and IGMPv3 snooping are supported.

Do I need to enable IGMP snooping?

For a home based network, you should enable it when you frequently use any kind of streaming or mirroring from your devices to stream to Apple TV or Chromecast. In some brand firmware such as Asus, enabling IGMP Snooping can fix some of the Apple TV Airplay mirroring issues.

How do I enable IGMP on my router?

1. Select Switching > Multicast > IGMP Snooping > IGMP VLAN Configuration. A screen similar to the following displays.
2. Enter the following information: For Querier Admin Mode, select the Enable radio button. In the Querier IP Address field, enter 10.10. 10.1.
3. Click Apply.

Should I enable IGMP on my router?

IGMP proxying should be left enabled unless it causes problems. This allows the router to convert Multicast traffic into Unicast traffic, allowing for the network especially wireless devices, to work more efficiently.

How do I know if IGMP snooping is working?

1. Step 1: Select test modules and ports. …
2. Step 2: Ensure that IGMP snooping is disabled on the DUT.
3. Step 3: Enable IGMP emulation on the first destination test port. …
4. Step 4: Transmit multicast traffic from the source tester port. …
5. Step 5: Verify that the traffic is received on both of the destination tester ports.

What happens if IGMP snooping is disabled?

When IGMP snooping is enabled, the slider displays blue. When IGMP snooping is disabled, the slider displays white. Enable or disable the blocking of unknown multicast traffic by clicking the slider in the Block Unknown Multicast Address section.

Is IGMP snooping safe?

Especially in larger networks, IGMP Snooping switch reduces unnecessarily high traffic which can even lead to network congestion. Criminals can take advantage of this safe leak and flood individual hosts or the entire network with multicast packets to break them down, just like a typical DoS/DDoS attack.

What applications use IGMP?

IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows more efficient use of resources when supporting these types of applications. IGMP is used on IPv4 networks.

Does IGMP snooping slow down traffic?

IGMP Snooping generates no additional network traffic, which significantly reduces the Multicast traffic passing through your switch.

What is Unifi IGMP snooping?

The Internet Group Management Protocol (IGMP) is used to set up multicasting groups. IGMP snooping allows network switches to be aware of these groups and forward network traffic accordingly.

Article first time published on

What is IGMP snooping in router?

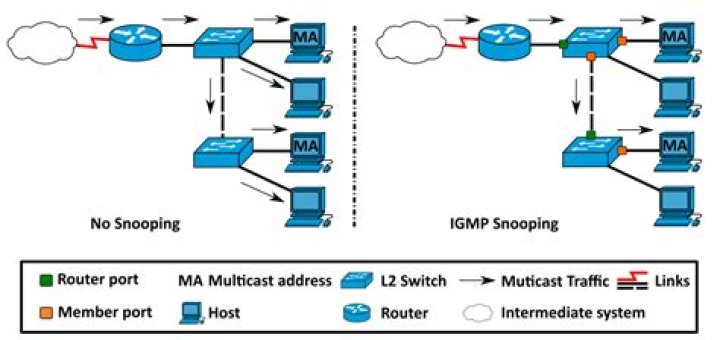

IGMP snooping is the process of listening to Internet Group Management Protocol (IGMP) network traffic to control delivery of IP multicasts. Network switches with IGMP snooping listen in on the IGMP conversation between hosts and routers and maintain a map of which links need which IP multicast transmission.

What is an IGMP querying router?

The IGMP/MLD Snooping Querier is used to support a Layer 2 Multicast domain of snooping switches in the absence of a Multicast router. For example, where Multicast content is provided by a local server, but the router (if one exists) on that network does not support Multicast.

What is IGMP feature?

The Internet Group Management Protocol (IGMP) is a protocol that allows several devices to share one IP address so they can all receive the same data. IGMP is a network layer protocol used to set up multicasting on networks that use the Internet Protocol version 4 (IPv4).

Is IGMP snooping on by default Cisco?

The Internet Group Management Protocol (IGMP) snooping software examines Layer 2 IP multicast traffic within a VLAN to discover the ports where interested receivers reside. … By default, IGMP snooping is enabled on the device.

Does chromecast use IGMP?

Here’s what you need to Set Up Chromecast (or a Mondo+ connection to your smartphone): Enable: Universal Plug and Play (UPnP), multicast, Internet Group Management Protocol (IGMP)

What is WMM no Acknowledgement?

With WMM enabled, you can select Enable no-acknowledgement. No-Acknowledgement refers to the acknowledge policy used at the MAC level. Enabling no-acknowledgement can result in more efficient throughput but higher error rates in a noisy Radio Frequency (RF) environment. To disable WMM, deselect Wi-Fi Multimedia.

How do I enable IGMP snooping on HP Procurve?

1. Step 1: See if IGMP is running. COMMAND: sh ip igmp config. …
2. Step 2: Turn ON IGMP. …
3. Step 3: Check status of IGMP. …
4. Step 4: On Layer two network only (to specify which switch will be the IGMP Querier) …
5. Step 5: Reference Documentation from HP.

Is IGMP a ping?

ICMP stands for Internet Control Message Protocol. While IGMP stands for Internet Group Message Protocol. 2. ICMP has PING features.

Why do we need IGMP?

IP hosts use IGMP to report their multicast group memberships to any immediately neighboring multicast routing devices. Multicast routing devices use IGMP to learn, for each of their attached physical networks, which groups have members.

What is IGMP join?

When an IGMP client connected to a switch port needs to receive multicast traffic from a specific group, it joins the group by sending an IGMP report (join request) to the network. (The multicast group specified in the join request is determined by the requesting application running on the IGMP client.)

How do I enable multicast on Ubiquiti?

Near the bottom of the Wireless Network page is an option titled “Multicast Enhancement” with a checkbox for “Enable multicast enhancement (IGMPv3)” simply check that box.

What is DHCP snooping Unifi?

DHCP snooping is a layer 2 security technology built into the operating system of a capable network switch that drops DHCP traffic determined to be unacceptable. The fundamental use case for DHCP snooping is to prevent unauthorized (rogue) DHCP servers offering IP addresses to DHCP clients. 1.

How do I disable IGMP snooping?

To enable the IGMP Snooping querier on a specific VLAN, use the ip igmp snooping vlan querier enable command in switch configuration mode. To disable the IGMP Snooping querier on the VLAN interface, use the no form of this command.

In which packet is IGMP packet carried?

Que.An IGMP packet is carried in an __________ packet.b.IPc.Ethernet framed.none of the aboveAnswer:IP

How does IGMP proxy work?

IGMP proxy enables the router to issue IGMP host messages on behalf of hosts that the router discovered through standard IGMP interfaces. The router acts as a proxy for its hosts. … You enable IGMP on the interfaces that connect the router to its hosts that are farther away from the root of the tree.

What are the message types used in IGMP?

Message TypeDescriptionv1 Membership ReportIdentifies this message as an IGMPv1 Membership Report.v2 Membership ReportIdentifies this message as an IGMPv2 Membership Report.v2 Leave ReportUsed by IGMPv2 hosts to announce that they are leaving a multicast group.

What does no IP IGMP snooping TCN flood do?

Having IGMP snooping, reduces the traffic from the Core Switch to each of the Access Switch from 5Gbps, to 200Mbps on the top switch, and 150Mbps on the bottom switch.

How do I disable IGMP snooping on Cisco Nexus?

1. SUMMARY STEPS.
2. switch# configure terminal.
3. switch(config)# ip igmp snooping.
4. switch(config)# vlan vlan-id.
5. switch(config-vlan)# ip igmp snooping.
6. switch(config-vlan)# ip igmp snooping explicit-tracking.
7. switch(config-vlan)# ip igmp snooping fast-leave.

What is IGMP snooping querier Cisco?

IGMP Snooping Querier. The IGMP/MLD Snooping Querier is used to support a Layer 2 Multicast domain of snooping switches in the absence of a Multicast router. For example, where Multicast content is provided by a local server, but the router (if one exists) on that network does not support Multicast.
