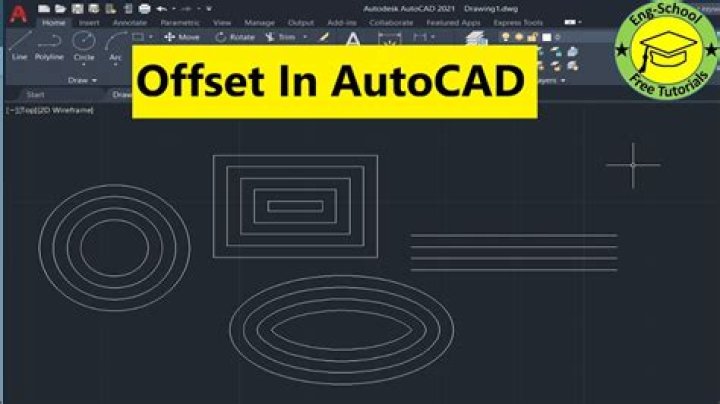

How do I fix offset in AutoCAD

Click Home tab Modify panel Offset. Find.Specify the offset distance. You can either enter a value or use the pointing device to determine a distance with two points.Select the object to offset.Specify a point to indicate whether the object is to be offset inside or outside of the original object.

How do I change the offset in AutoCAD?

1. Click Home tab Modify panel Offset. Find.
2. Specify the offset distance. You can either enter a value or use the pointing device to determine a distance with two points.
3. Select the object to offset.
4. Specify a point to indicate whether the object is to be offset inside or outside of the original object.

What is offset command and how do you use it in AutoCAD?

Creates concentric circles, parallel lines, and parallel curves. You can offset an object at a specified distance or through a point. After you offset objects, you can trim and extend them as an efficient method to create drawings containing many parallel lines and curves.

How do you remove offset in AutoCAD?

Select the Offset icon from the ribbon panel. Type O or offset on the command line or command prompt and press Enter. Type E or erase on the command line and press Enter. Type yes to erase the source object after offsetting.

In which toolbar of AutoCAD offset command appears?

We can invoke this command. from the modify panel in the Home tab. Or we can type ‘O’ (AutoCAD offset shortcut key) in the command bar and press the Enter key to offset an object.

What is chamfer command in AutoCAD?

The chamfer command in AutoCAD is used to create slanted edges. We are required to select the two adjacent lines to create chamfer between them as shown in below image: Here, 1 and 2 are the selected lines. We can create the chamfer by specifying either the chamfer distance or angle.

How many workspaces are available in AutoCAD?

How many workspaces are available in AutoCAD? Explanation: There are three workspaces available to switch between in AutoCAD. These are drafting and annotation, 3D basics and 3D modelling.

How do you offset lines in AutoCAD?

Make the object you want to offset a block, then draw your polyline, type “measure” at the command line and select the polyline, type “b” for block, enter the name of the block, then the distance. Somewhere in there it asks you if you want to align the block with the line, type “yes”. That should do it.

What is fillet command in AutoCAD?

The fillet command is used to create rounded edges between the adjacent lines and faces in 2D and 3D. It is also used to connect two tangent arcs in 2D. … Specify the radius of the Fillet and press Enter. Select the second object.

How do I offset dimensions in AutoCAD?

In the drawing area, double-click the dimension you want to edit. The Power Dimensioning Ribbon Contextual Tab displays. In the Power Dimensioning Edit Geometry dialog box, enter a numerical value in the Text offset from dimension line box. Click OK.

Article first time published on

How do you offset feet in AutoCAD?

Just type in 36 for three feet and it will still work properly. To further simplify the process, you can enter your distance as the number of inches followed by /12. For example, if you need to offset by 3 inches, enter an offset distance of 3/12. AutoCAD will do the math for you and offset your object by 0.25 feet.

What is offset surveying?

Offset is the perpendicular distance taken from either side of the chain line running in a particular direction. The purpose of offset is to locate the objects which lie in the vicinity of the main survey line.

What is the purpose of offset?

The main purpose of OFFSET is to allow formulas to dynamically adjust to available data or to user input. The OFFSET function can be used to build a dynamic named range for charts or pivot tables, to ensure that source data is always up to date.

Where can the ViewCube be found on the screen?

The ViewCube can be found in the upper right hand corner of the screen and you’ll notice as you hover your mouse closer to it, the navigation tools, along with the ViewCube, become brighter or more enabled.

What is subtract in AutoCAD?

With SUBTRACT, you can create a 3D solid by subtracting one set of existing 3D solids from another, overlapping set. You can create a 2D region object by subtracting one set of existing region objects from another, overlapping set.

How do you activate isometric axes in AutoCAD?

You can now select isometric plane for your drawing by pressing the F5 key. The three Isoplanes available for selection are Isoplane top, right and left. Press F5 key to activate Isoplane top and then select line command and click anywhere in the drawing area to start your line.

What are the three workspaces available in AutoCAD?

The explanation: There are three workspaces available to switch between in AutoCAD. These are drafting and annotation, 3D basics and 3D modelling.

How do I change workspace in AutoCAD?

1. On the status bar, click Workspace Switching, and select Workspace Settings.
2. In the Workspace Settings dialog box, change workspace settings as needed.

What are the different workspaces in AutoCAD?

Workspaces are sets of menus, toolbars, palettes, and ribbon control panels that are grouped and organized so that you can work in a custom, task-oriented drawing environment. When you use a workspace, only the menus, toolbars, and palettes that are relevant to a task are displayed.

How do I use chamfer in AutoCAD 2021?

Select the second object or line segment of a 2D polyline to define the chamfer. You can also hold down the Shift key before selecting the second object or line segment of a 2D polyline to extend or trim the selected objects to form a sharp corner.

What is sweep commands?

The 2D sub-object or object is swept along an open or closed path to create a 3D surface or solid using sweep command. The object enclosing the area is swept to create a 3D solid or surface, but an open-ended object is swept to create only a 3D surface.

What is the difference between a fillet and a chamfer?

A chamfer is the sloped or angled edges or corners of a part design. It is an antonym of the fillet. Instead of having a curved shape, a chamfer is straight and has a sharp angle. … If your design requires sharp corners to be efficient for its purpose, you should choose chamfer over the different fillet mechanics.

How do you reverse a fillet in AutoCAD?

Right-click on the misbehaving polyline and select Polyline > Reverse (or type Reverse) and fillet again. “This trick works in all versions of AutoCAD since 2010.”

What is necessary for setting the fillet command?

First Object Select the second object or line segment of a 2D polyline to define the fillet. You can also hold down the Shift key before selecting the second object or line segment of a 2D polyline to extend or trim the selected objects to form a sharp corner.

How do you use the fillet tool in Autodesk?

Create a Fillet Between Two Faces In the Fillet dialog box, select Face Fillet . In the graphics window, select the first face or face set. Select the second face or face set. Tip: When selecting more than one face per face set, clear the check box for Optimize for Single Selection.

How do you offset walls in AutoCAD?

1. Select a wall tool. …
2. Specify the wall segment start point. …
3. On the command line, enter O for Offset, or right-click and click Offset. …
4. Click to select the wall component to offset from or specify a point outside the wall segment. …
5. Specify the wall segment endpoint.

How do you offset in accounting?

Basics of an Offset In accounting, an entry can be offset by an equal but opposite entry that nullifies the original entry. In banking, the right to offset provides financial institutions with the ability to cease debtor assets in the case of delinquency or the ability to request a garnishment to recoup funds owed.

What is hatching in AutoCAD?

The Hatch command in AutoCAD is used to fill patterns inside an enclosed area. The patterns are hatched, gradient, and solid fill. The gradient patterns are defined as a smooth transition between two colors. … The Hatch Pattern Scale signifies the spacing between the lines in a particular pattern.

What is Circle command in AutoCAD?

The circle command is used to draw a circle by specifying the center point and radius. … Type Circle or C on the command line and press Enter. Specify the center point of a circle on the workspace or viewport. Specify the radius of the circle.

What is an offset line?

Also called offset line . a line a short distance from and parallel to a main survey line.

What is Dimension line offset?

The offset value given represents the distance from the dimension line to the end of the extension lines.
