How do I set up my Aprv ventilation

P-High. Transitioning from volume-cycled ventilation: set equal to plateau pressure. … P-Low. Set to zero.T-High. Set to 5 seconds.T-Low. Set to 0.5 seconds initially. … FiO2. Start high, titrate down rapidly based on oxygen saturation.Automatic Tube Compensation (ATC) must be turned on.

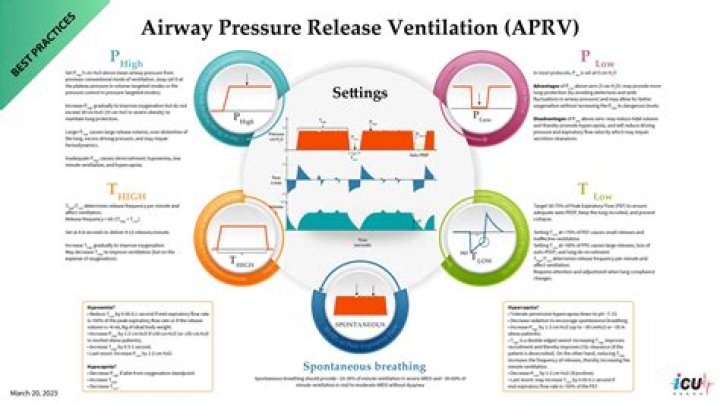

How do I set my APRV ventilation?

1. P-High. Start at 25-35 cm, most often ~28-30 cm. …
2. P-Low. Always set to zero.
3. T-High. Set to 5 seconds.
4. T-Low. Set to 0.5 seconds initially (or 0.8 seconds in patients with COPD).
5. FiO2. Start at 100%, aggressively wean this down as fast as possible.
6. Spontaneous breathing must be supported.

When do you use APRV?

APRV is used mainly as a rescue therapy for the difficult to oxygenate patients with acute respiratory distress syndrome (ARDS). There is confusion regarding this mode of ventilation, due to the different terminology used in the literature. APRV settings include the “P high,” “T high,” “P low,” and “T low”.

Do you set PEEP on APRV?

The airway pressure although set to zero, never reaches zero at the alveoli level; there simply isn’t time. This is why PEEP is not necessary in APRV.

What is P high in APRV?

P-high is what provides the driving pressure for the release breath, which is the mechanism whereby APRV provides mechanical support to the work of breathing. Inadequate P-high may cause inadequate ventilator support, causing increased work of breathing.

Is APRV good for ARDS?

It is premature to conclude that APRV is definitely superior to low tidal-volume ventilation. However, this study suggests that APRV is a legitimate front-line ventilator mode for patients with ARDS. Early use of APRV may allow avoidance of paralysis and deep sedation, facilitating more rapid weaning from ventilation.

Does APRV work for Covid?

Conclusions: APRV may improve oxygenation, alveolar ventilation and CO2 clearance in patients with COVID-19 and refractory hypoxemia. These effects are more pronounced with higher airway pressure and inspiratory time.

Is APRV same as bilevel?

The perceived differences between APRV and BIPAP have been described previously [4,5]. Essentially, APRV has a longer time phase on the high pressure level, while BIPAP usually does not exceed an inspiration:expiration time ratio of 1:1 [5].

Is APRV inverse ratio ventilation?

Airway pressure release ventilation (APRV) is inverse ratio, pressure controlled, intermittent man- datory ventilation with unrestricted spontaneous breathing. It is based on the principle of open lung approach.

Is APRV a spontaneous mode?

Airway pressure release ventilation (APRV) was described more than 20 years ago [1] as a mode that allows spontaneous breathing throughout the ventilation cycle.

Article first time published on

How do you set TLOW Aprv?

In order to adjust Tlow we need to observe the patients expiratory flow waveform on the ventilator, targeting >50% to 75% T-PEFR (see below). This will typically be between 0.2-0.8s in restrictive lung disease and 0.8-1.5s in obstructive lung disease.

What is P mean in ventilator?

positive end-expiratory pressure during mechanical ventilation.

How do you calculate plateau pressure?

Airway pressure = pressure in the circuit which exists while there is flow. Plateau pressure = the relationship between volume and compliance, in the absence of flow. Compliance = volume divided by pressure. Tidal volume = flow multipied by time.

How does APRV ventilation work?

Airway pressure release ventilation (APRV) is an open-lung mode of invasive mechanical ventilation mode, in which spontaneous breathing is encouraged. APRV uses longer inspiratory times; this results in increased mean airway pressures, which aim to improve oxygenation.

Is APRV the same as BiPAP?

BiPAP is identical to APRV except that no restrictions are imposed on the duration of the low CPAP level (release pressure) [5]. Based on the initial description, APRV uses a duration of low CPAP (release time) that is equal to or less than 1.5 s.

What is automatic tube compensation?

Automatic tube compensation (ATC) is a new option to compensate for the non-linearly flow-dependent pressure drop across an endotracheal or tracheostomy tube (ETT) during inspiration and expiration. ATC is based on a closed-loop working principle.

How do you increase oxygen on Aprv?

1. When possible wean FiO2 to <50% for a SpO2 >90% or a PaO2 >60 torr.
2. To improve oxygenation via higher PMean: Increase PHigh in increments of 2 cmH2O. Decrease TLow to be closer to 75% PEFR.

What is ASV mode on ventilator?

Adaptive support ventilation (ASV) is a positive pressure mode of mechanical ventilation that is closed-loop controlled, and automatically adjust based on the patient’s requirements.

What is Bivent ventilation?

Introduction: Biphasic positive airway pressure (BIVENT) is a partial support mode that employs pressure-controlled, time-cycled ventilation set at two levels of continuous positive airway pressure with unrestricted spontaneous breathing.

How does PRVC mode work?

In the PRVC mode, the ventilator delivers a volume-controlled breath. Using the plateau pressure from the previous delivered breath, the ventilator delivers the next breath. This allows the lowest delivery pressure, which is the target VT.

Is BiLevel and BiPAP the same?

BiPAP (also referred to as BPAP) is short for Bilevel Positive Airway Pressure and this machine has a very similar function to CPAP machine therapy. BiPAP and CPAP machines are very similar in function and design in that they are a non-invasive form of therapy for those suffering from sleep apnea.

Is CPAP a ventilator?

CPAP is Continuous Positive Airway Pressure. It is a type of non-invasive ventilation (NIV) or breathing support.

What does Simv stand for?

Synchronized intermittent mandatory ventilation (SIMV) is a type of volume control mode of ventilation. With this mode, the ventilator will deliver a mandatory (set) number of breaths with a set volume while at the same time allowing spontaneous breaths.

Where is the power button on servo U?

The ON/OFF switch is placed to the left of the gas inlets. The switch must be pulled down from lock position before it can be used. The Servo-u modules are interchangable between the Servo-n® and Servo-i® ventilator models (except the Y sensor modules).

What is automode in servo?

Automode. Automode helps your patients’ transition into spontaneous breathing with less need for staff intervention. It is an interactive mode that switches between controlled and supported ventilation conditional to patient effort.

Is Aprv a CPAP?

APRV applies continuous positive airway pressure (CPAP) with an intermittent release phase. First described 30 years ago. The application of CPAP (P high) for a prolonged time (T high) maintains adequate lung volume and alveolar recruitment.

How do you calculate driving pressure?

Driving pressure (ΔP) is calculated as the difference between plateau pressure (Pplat) and positive end-expiratory pressure (PEEP). Driving pressure is composed of two pressures: that distributed to the lung itself, the transpulmonary pressure (ΔPL), and that applied to the chest wall (ΔPcw).

What is Plow APRV?

Background: In airway pressure release ventilation (APRV), there have been questions about whether increases in pressure low (Plow) will impact flow characteristics while maintaining a time low (Tlow) of 75%.

Is PIP and paw the same thing?

Paw is airway pressure, PIP is peak airway pressure, Pplat is plateau pressure. Some researchers have suggested that plateau pressures should be monitored as a means to prevent barotrauma in the patient with ARDS.

What does paw high mean on a ventilator?

Background: Positive end-expiratory pressure increases mean airway pressure (Paw) in patients with mechanical ventilation.

Is PIP the same as peak?

BiPAP delivers positive pressure support during inspiration (IPAP = inspiratory positive airway pressure or PIP = peak inspiratory pressure) and expiration (EPAP = expiratory positive airway pressure or PEEP = peak end expiratory pressure) at two different pressures, augmenting the patient’s inspiratory effort.
