How do variable inlet guide vanes work
By William Howard
Inlet guide vanes impart a whirling motion to the inlet airflow in the same rotational direction as the impeller. This decreases the power required to deliver the rated airflow and pressure. There are opportunities for energy savings when the compressor inlet is throttled.
How are the variable inlet guide vanes operated?

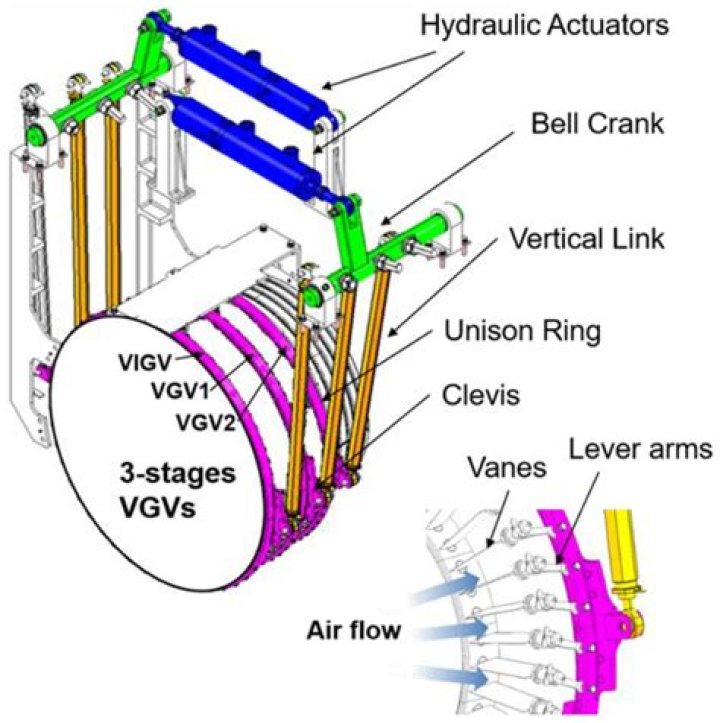

Full range of VIGV benefits Twin hydraulic actuators with Linear Variable Differential Transducers (LVDT) are mounted on the on the actuator ring. VIGV position is controlled by continuous measurement of LPC inlet temperature and High-Pressure Compressor (HPC) discharge pressure.
What is a variable inlet guide vane?
A gas turbine engine in which the angle of the inlet guide vanes can be changed to meet the requirements of the engine-operating conditions. These are normally in front of the first stage of an axial compressor and sometimes in the subsequent stages as well.
What do variable guide vanes do?
The variable guide vanes (VGV) of gas turbine engines are commonly utilized to expand operating range and to improve efficiency of the compressor. Guiding air flow using the VGVs in the compressor prevents aerodynamic instability by making proper incidence angle to the blades.What is the function of the inlet guide vanes?
Inlet Guide Vanes (IGVs) and Inlet Butterfly Valves (IBVs) perform an important task—to regulate the airflow and pressure that enters a centrifugal compressor’s first stage of compression. Historically, IBVs had been the industry standard for centrifugal compressors.
What is the function of inlet guide vanes in turbofan engines?
Inlet Guide Vanes (IGVs) deliver air to the inlet of a gas turbine’s axial compressor. While maintaining proper fuel-to-air ratio through various load ranges, they minimize the potential for unwanted emissions.
Do inlet guide vanes rotate?
Inlet guide vanes impart a whirling motion to the inlet airflow in the same rotational direction as the impeller. This decreases the power required to deliver the rated airflow and pressure. There are opportunities for energy savings when the compressor inlet is throttled.
What is the difference between a blade and a vane?
Blades must operate at high rotating speeds and temperatures, while vanes direct the stream propelled by the rotating blades to the next turbine stage with optimum efficiency. Both blades and vanes must be resistant to oxidation, corrosion and wear, and provide longevity in service.What is the function of guide vanes in a reaction turbine?
allow the water to enter the runner without shock. allow the water to flow over theory, without forming eddies.
What is the purpose of IGV?The purpose of adjustible inlet guide vanes (IGVs) is to enable the firing and exhaust temperatures to be maintained near the “full load” levels when the gas turbine is operating at “part load” (i.e., less than full load).
Article first time published onWhat is inlet guide vanes for gas turbine?
inlet guide vanes (IGV)- Fixed or variable vanes , also known as stators, located in front of the first stage of the compressor of a gas turbine engine. These guide vanes direct the air onto the compressor at the correct angle. Also called intake guide vanes .
What position do inlet guide vanes on a centrifugal compressor take upon compressor shutdown?
Inlet Guide Vanes or (IGV’s): These vanes, in the wide-open position, are parallel to the airflow, and at fully closed are at 90 degrees to air flow.
What is difference between IGV and damper?
Dampers ‘IGVs (Inlet Guide Vanes) are designed to pre-rotate or spin the air in the direction of fan/compressor rotation. … The butterfly damper does not decrease the power consumption when throttled, in contrast to IGV.
Why are guide vanes important in propeller turbines?
Guide vanes direct the water tangentially to the turbine wheel, known as a runner. This radial flow acts on the runner’s vanes, causing the runner to spin. The guide vanes (or wicket gate) may be adjustable to allow efficient turbine operation for a range of water flow conditions.
What is nozzle guide vanes?
Nozzle guide vanes (NGVs) are static components mounted into the casings of gas turbine engines as e.g. aircraft turbines. Typically, nozzle guide vanes are designed to convert part of the gas flow’s heat and pressure energy into a tailored kinetic energy from which rotor blades can generate power.
What is IGV in chiller?
Abstract. Variable inlet guide vane (IGV) is used to control the mass flow and generate prewhirl in centrifugal compressors. The efficient operation of IGV is limited to the range of aerodynamic characteristics of their vane profiles.
What are nozzle guide vanes made of?
Nozzle guide vanes (NGVs) are important structural parts of gas turbines [1]. NGVs are typically made from Ni-based superalloys because they have to withstand very high temperatures and aggressive environments [2].
What is the function of guide?
Tour guides lead visitors through tourist attractions and give information about the attractions’ natural and cultural significance. Often, they also act as interpreters for travelers who do not speak the local language. Automated systems like audio tours are sometimes substituted for human tour guides.
What is function of guide blade?
Guide or Stay vane: The basic purpose of the guide vanes or stay vanes is to convert a part of pressure energy of the fluid at its entrance to the kinetic energy and then to direct the fluid on to the runner blades at the angle appropriate to the design.
What is run away speed of turbine?
The runaway speed is the maximum speed that the turbine can theoretically attain. It is achieved during load rejection. The runaway speed of a water turbine is its speed at full flow and no shaft load. The turbine will be designed to survive the mechanical forces of this speed.
What is difference between impeller and vane?
As nouns the difference between impeller and vane is that impeller is something which or someone who impels, usually a part of a pump while vane is (countable) a weather vane.
What is turbine vane?
The nozzle guide vanes are of an aerofoil shape with the passage between adjacent vanes forming a convergent duct. The vanes are located (Figure 4–85) in the turbine casing in a manner that allows for expansion.
What are jet engine vanes?
In a free turbine the turbine driving the compressor rotates independently of that which powers the propeller or helicopter rotor. Cooling air, bled from the compressor, may be used to cool the turbine blades, vanes and discs to allow higher turbine entry gas temperatures for the same turbine material temperatures.**
What is the full form of IGV?
The Full form of IGV is Intrathoracic Gas Volume, or IGV stands for Intrathoracic Gas Volume, or the full name of given abbreviation is Intrathoracic Gas Volume.
Which turbine has adjustable guide vanes?
Kaplan turbine is a propeller turbine in which the vanes fixed on the hub are adjustable.
What is surging and stalling?
In elementary terms, stall is a disturbance of the flow in the tangential direction, while surge is a disturbance in the axial direction. During stalled operation, the average flow rate through the compressor is steady, but during surge, the flow rate will pulse—sometimes so violently that reversed flow is induced.
What causes surging in centrifugal compressor?
Surge occurs when there is no forward flow of gas through the compressor and a reversal of flow occurs. The gas that is being compressed gets pushed backward through the centrifugal compressor. When this surge (flow reversal) occurs, which can happen in milliseconds, the rotor is affected.
How does a compressor surge happen?
Surge is a condition that occurs in compressors when the amount of gas they are trying to compress is insufficient for the size of the compressor and the blades lose their ability to transfer energy from the shaft to the fluid, causing a reverse flow of the gas.
Why are variable inlet guide vanes sometimes used for supply fans?
One of the reasons that VAV (Variable Air Volume) systems are popular is because they pro- vide fan energy savings that constant volume systems cannot. As a general statement, fans consume more energy in a typical HVAC system than the compressors.
How does a propeller turbine work?
The propeller turbine is a type of inward flow reaction turbine with a propeller-shaped runner, which can be seen in ships and submarines. … In the propeller turbine, the water flow is regulated by adjustable guide vanes (or wicket gates). The vanes move the water into the runner to transfer its energy to the blades.
Which turbine is also called propeller turbine?
Kaplan turbine is an axial flow reaction turbine in which the water flows parallel to the axis of rotation of the shaft. For Kaplan, both the kinetic and potential energy is available at the inlet. Kaplan turbine has adjustable moving blades and so it is also known as a variable pitch propeller turbine.
