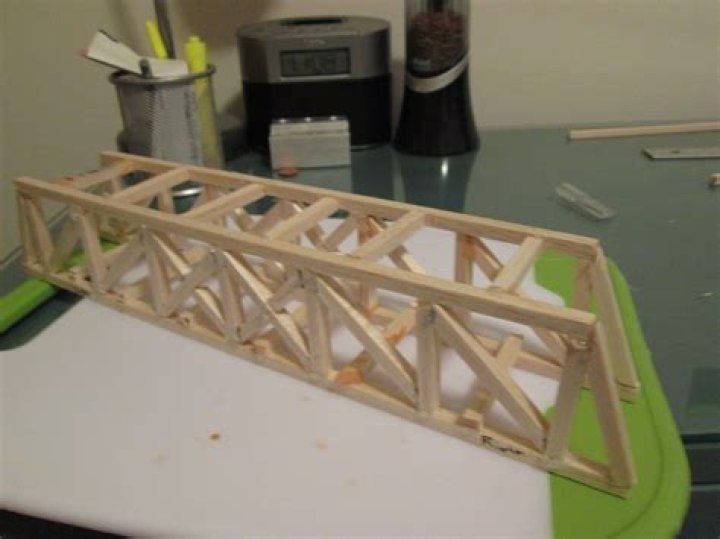

How do you build a balsa wood truss bridge

Restricting the physical size of the bridge. Restricting the size and shape of structural elements of the bridge (the individual pieces of balsa wood) Restricting the amount of glue that can be used during the construction. Limiting the types of glue that can be used for connecting pieces of balsa wood.

How do you make a balsa wood bridge stronger?

Restricting the physical size of the bridge. Restricting the size and shape of structural elements of the bridge (the individual pieces of balsa wood) Restricting the amount of glue that can be used during the construction. Limiting the types of glue that can be used for connecting pieces of balsa wood.

What is the strongest type of truss bridge?

In this experiment we have tested which type of truss bridge is the strongest, yet uses the least amount of material. Two of the most used truss bridges are of the Pratt and Howe design. Through our experiment it was found that the bridge design that minimized the maximum compression force was the Howe Bridge.

How tall should a balsa wood bridge be?

What materials are used to make a truss bridge?

Truss elements are usually of wood, iron, or steel.

What is a wooden bridge truss?

A truss is a series of individual members, acting in tension or compression and performing together as a unit. On truss bridges, a tension member is subject to forces that pull outward at its ends. Even on a “wooden” truss bridge, these members are often individual metal pieces such as bars or rods.

What is the easiest bridge to build?

A beam or “girder” bridge is the simplest and most inexpensive kind of bridge. According to Craig Finley of Finley/McNary Engineering, “they’re basically the vanillas of the bridge world.” In its most basic form, a beam bridge consists of a horizontal beam that is supported at each end by piers.

What's the strongest bridge design?

Even though the truss bridge design has been around for literally centuries it is widely regarded as the strongest type of bridge. The design itself looks extremely simple, so what makes it the strongest type of bridge and why?

Is it better for a bridge to be taller or shorter?

As you saw in the example bridges, by increasing the height of the bridge you decrease the load on the top (and bottom) chord. A decrease in load means you can make it smaller. Smaller means lighter in this case. … So that means the middle members will have to be made stronger the taller the bridge is.

What makes a bridge strong?

Suspension bridges work by using a force called tension. Tension is just pulling something tight. … Suspension bridges are strong because the force on the bridge gets spread out. The weight of the cars or trains or horses, whatever’s traveling across it, pulls on the cables, creating tension.

Article first time published on

What supports a truss bridge?

In a truss bridge, two long – usually straight members known as chords – form the top and bottom; they are connected by a web of vertical posts and diagonals. The bridge is supported at the ends by abutments and sometimes in the middle by piers.

What is the best glue for balsa wood bridges?

Elmer’s Wood Glue is inexpensive glue that is quite effective for holding balsa wood together. The glue is available at nearly every store that sells glue.

Can I use wood glue on balsa wood?

Wood glues are fine for balsa. While there are stronger glues, the added strength is usually unnecessary and strong enough should be sufficient.

Which truss bridge holds the most weight?

The arch bridge can hold the most weight, the deck bridge can hold an average amount of weight, and the beam bridge can hold the least amount of weight.

Why is the Pratt truss good?

Pratt Truss This simplifies and produces a more efficient design since the steel in the diagonal members (in tension) can be reduced. This has a few effects – it reduces the cost of the structure due to more efficient members, reduces the self-weight, and eases the constructability of the structure.

Is Pratt or Howe Truss stronger?

The Pratt truss deflected the least and had the highest load-to-mass ratio. The Pratt truss disspipated the load more efficiently than the Howe truss, although both truss bridges dissipated the force significatnly more effectively than the beam bridge.

What is Waddell a truss bridge?

– Significance: The bridge was designed in accordance with John Alexander Low Waddell’s patent of November 13, 1894 (#529,220). Waddell developed the “A” truss to meet the need for a reliable, easily erected, inexpensive, short-span railroad bridge. It is regarded as a transitional phase in bridge design.

What is the best material to use to build a bridge?

Best Material for Bridges: Steel Its strength and permanence are ideal for long-lasting structures, like bridges. The use of steel for bridges replaced earlier materials such as wood, concrete and stone.

What tools are used to build a bridge?

Aerial Lifts. The first piece is an aerial lift — a frequently used type of bridge access equipment. …
Vertical Masts and Hydro Platforms. …
Telehandlers. …
Excavators. …
Skid Loaders. …
Backhoes. …
Cranes. …
Air Compressors.

What is the best angle for a truss bridge?

Design engineers normally try to keep it at 45° as it is the best compromise. There are advantages in having a steeper angle for the diagonal members and also disadvantages. Greater depths with lesser number of panels and steeper angles result in lesser chord forces.

How many types of truss bridges are there?

4 Types of Truss Bridges: Which is Worth the Weight? The four most basic categories in the truss bridge arena are the Warren, Pratt, Howe and K Truss. Each utilises the basic ‘triangle’ design, characteristic of the truss bridge, however, each varies slightly in the way they distribute compression and tension.

Is the Golden Gate Bridge a truss bridge?

More specifically, there are many types of truss bridges. One popular truss bridge is the Golden Gate Bridge, which is located in San Francisco, California.

How thick does concrete need to be for a bridge?

For the bridges tested, spans ranged from 8 ft to 20 ft, widths ranged from 26 to 47 ft, aspect ratios from 0.17 to 0.68 and slab thickness from 10 to 18 inches.

What is the typical span of a truss bridge?

FRP truss bridges typically span from 25-80 feet long; they can even reach up to 100 feet in length.

What are the three strongest types of bridges?

My hypothesis was that the arch bridge would be the strongest. The experiment involved building and testing the strength three bridge types (arch, beam, and truss) by increasing the amount of weight on each bridge while measuring how much each deflected (bent), and at what point the bridges failed (broke).

Which bridge design can have the longest span?

Suspension bridges have the longest spans of any type of bridge. Cable-stayed bridges, the next longest design, are practical for spans up to just over 1 kilometre. Therefore, as of 2021, the 29 longest bridges on this list are the 29 longest spans of all types of vehicular bridges (other than floating pontoon bridges) …

What are the three main types of bridges?

Three basic types of bridges used in transportation are: beam and truss bridges, arch bridges and suspension bridges.

What are the 5 main bridge types?

Beam Bridge. A beam bridge is known for being the simplest and most cost-effective bridge to build. …
Cantilever Bridges. …
Suspension Bridges. …
Arch Bridge. …
Short-Span Bridge. …
Beam Bridge. …
Cantilever Bridges. …
Suspension Bridges.

How do you structure a bridge?

For designing safe bridge structures, the engineering design process includes the following steps: 1) developing a complete understanding of the problem, 2) determining potential bridge loads, 3) combining these loads to determine the highest potential load, and 4) computing mathematical relationships to determine the …

What is the strongest part of a bridge?

Strength. An arch bridge is stronger than a beam bridge, simply because the beam has a weak point in the center where there is no vertical support while arches press the weight outward toward the support.

What design shape supports a bridge the best?

In other words, they do not want the structure to fall down when a force is applied to it. For example, bridges must be able to hold up the materials that make the bridge, as well as all of the traffic travelling across it. One of the shapes that can bear weight very well is the triangle.
