How do you calculate PaO2 from FiO2

PaO2 should = FiO2 x 500 (e.g. 0.21 x 500 = 105 mmHg)

How do you calculate PaO2?

At sea level without supplemented inspired oxygenation, the alveolar oxygen partial pressure (PAO2) is: PAO2 = (760 – 47) 0.21 – 40 / 0.8 = 99.7 mm Hg.

How do you calculate PaO2 without ABG?

Look at your patient’s SpO2 > this will allow you to approximate both your patient’s PaO2 and P/F ratio. If your patient’s spo2 = 90%, your patient’s PaO2=60mmHg. If your patient’s spo2=99%, your patient’s PaO2=90mmHg.

What is the difference between FiO2 and PaO2?

FIO2, the fraction of inspired oxygen in the air, is thus 21% (or . 21) throughout the breathable atmosphere. PaO2 declines with altitude because the inspired oxygen pressure declines with altitude (inspired oxygen pressure is fraction of oxygen times the atmospheric pressure).

Does FiO2 increase PaO2?

Increasing altitude decreases the atmospheric pressure; thus, for any given FiO2, there is a lower PO2 in the atmosphere and a lower PAO2 in alveoli.

How do you calculate PAO2 gradient?

1. PAO2 is the ‘ideal’ compartment alveolar PO2 determined from the alveolar gas equation.
2. PAO2 = PiO2 – PaCO2/0.8.
3. A normal A–a gradient for a young adult non-smoker breathing air, is between 5–10 mmHg.
4. However, the A–a gradient increases with age (see limitations)

How do you calculate ABG from FiO2?

How to Calculate FIO2 from Liters. Example: A patient has a pO2 of 85mmHg on ABG while receiving 5 liter/minute of oxygen. 5 L/min = 40% oxygen = FIO2 of 0.40, the P/F ratio = 85 divided by 0.40 = 212.5.

What is PaO2 SaO2 and SpO2?

SpO2 = oxygen saturation as measured by pulse oximeter. SaO2 = oxygen saturation as measured by blood analysis (e.g. a blood gas) PaO2 = partial pressure of oxygen in the blood, as measured by blood analysis. .dyspnea.

Is PaO2 the same as SpO2?

PaO2 values are always much lower than oxygen saturation values. This is simply a reflection of the oxygen saturation curve (figure above). For example, a saturation of 88% correlates to a PaO2 of ~55mm. We’re generally comfortable with a saturation of 88%, but a PaO2 of 55mm may cause concern.

What is FiO2 on a ventilator?

FiO2: Percentage of oxygen in the air mixture that is delivered to the patient. Flow: Speed in liters per minute at which the ventilator delivers breaths.

Article first time published on

Can we calculate spo2 from heart rate?

The beat-to-beat mode has the highest possible resolution for SpO2 measurements. With every pulse beat, based on the absorption of red and infrared light, the oxygen saturation is calculated.

How do you calculate AA ratio?

Information regarding the alveolar/arterial (A/a) gradient can be estimated indirectly using the partial pressure of oxygen (Po2) (obtained from blood gas analysis) in a simple mathematical formula: A/a gradient = Po2 in alveolar air (estimated from the alveolar gas equation) – Po2 in arterial blood (measured from a …

What is the difference between PAO2 and PAO2?

With PAO2 representing alveolar oxygen pressure and PaO2 representing arterial oxygen pressure.

What does FiO2 70 mean?

70 Comments / Respiratory / By Joanne Reading. Oxygen, we all need it! We do not need a lot of it under normal circumstances, with 0.21 being the fraction of inspired oxygen (FiO2) of room air. FiO2 is defined as the concentration of oxygen that a person inhales.

What FiO2 is 6l?

What FiO2 is 6 LPM of supplemental oxygen? At 6 LPM, the approximate FiO2 is 44%.

What is normal PaO2?

Normal Results Partial pressure of oxygen (PaO2): 75 to 100 millimeters of mercury (mm Hg), or 10.5 to 13.5 kilopascal (kPa) Partial pressure of carbon dioxide (PaCO2): 38 to 42 mm Hg (5.1 to 5.6 kPa) Arterial blood pH: 7.38 to 7.42.

What would the PaO2 be for a patient with an SpO2 of 90%?

An O2 sat of 90% corresponds to a PaO2 of 60 mmHg. This is the minimum oxygen concentration providing enough oxygen to prevent ischemia in tissues.

What's the difference between SaO2 and SpO2?

The mean difference between SpO2 and SaO2 was -0.02% and standard deviation of the differences was 2.1%. From one sample to another, the fluctuations in SpO2 to arterial saturation difference indicated that SaO2 could not be reliably predicted from SpO2 after a single ABG.

What does a PaO2 of 50 mean?

If PaO2 is < 80 mmHg/10.7 kPa, the patient has arterial hypoxemia. 79 – 70 mmHg (10.6 – 9.4 kPa) = mild hypoxemia. 69 – 60 (9.3 – 8.0 kPa)= moderate hypoxemia. 59 – 50 (7.9 – 6.6 kPa)= severe hypoxemia. < 50 (6.6 kPa) = extreme hypoxemia.

What is PIO2 and FiO2?

PIO2 = Inspired Oxygen Tension (mmHg) FIO2 = Fraction of inspired O2 (fraction)

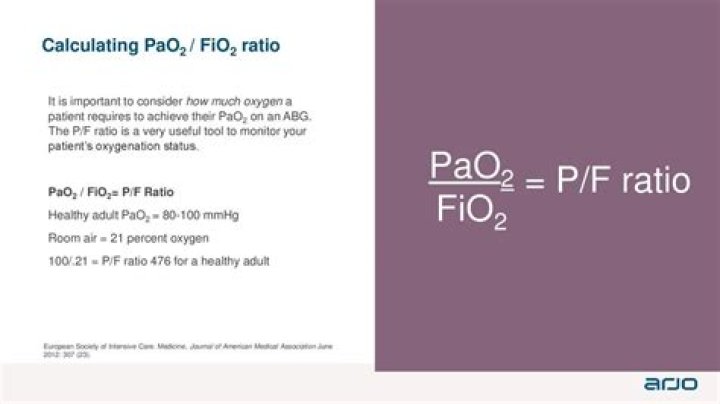

What is the normal range for PaO2 FiO2?

The New P/FP Ratio of 300 to 200 is mild, 200 to 100 is moderate and less than 100 is severe Adult Respiratory Distress Syndrome (ARDS) for all the different levels of PEEP values.

What is considered normal for the PaO2 FiO2 ratio?

PaO2/ FiO2 or 60/0.21 = about 300. A normal P/F Ratio is ≥ 400 and equivalent to a PaO2 ≥ 80 mmHg on room air. Okay, P/F is easy to calculate, but how does it help us? There are many health providers learning how to apply respiratory physiology in the trenches of the pandemic.

What is FiO2 and peep?

Initial Adult Ventilator Settings. You have to start somewhere ✓ Fraction of inspired oxygen (FiO2)—100% ✓ Positive End Expiratory Pressure (PEEP)–5 cmH20 ✓ Respiratory Rate—12 breaths per minute ✓ Tidal Volume 6-8 ml per weight in kilograms (ideal body weight). Most adults will require at least 500 ml.

Is 95 a good oxygen level?

A normal level of oxygen is usually 95% or higher. Some people with chronic lung disease or sleep apnea can have normal levels around 90%. The “SpO2” reading on a pulse oximeter shows the percentage of oxygen in someone’s blood. If your home SpO2 reading is lower than 95%, call your health care provider.

What is SpO2 in pulse oximeter?

What is SpO2? SpO2, also known as oxygen saturation, is a measure of the amount of oxygen-carrying hemoglobin in the blood relative to the amount of hemoglobin not carrying oxygen. The body needs there to be a certain level of oxygen in the blood or it will not function as efficiently.

What is PR BPM in oximeter?

Your pulse is measured by counting the number of times your heart beats in one minute. For example, if your heart contracts 72 times in one minute, your pulse would be 72 beats per minute (BPM). This is also called your heart rate.

How do you calculate AA Usmle gradient?

A-a gradient = (Age + 10) / 4.

What is the A Agradiant?

, or A–a gradient), is a measure of the difference between the alveolar concentration (A) of oxygen and the arterial (a) concentration of oxygen. It is an useful parameter for narrowing the differential diagnosis of hypoxemia. The A–a gradient helps to assess the integrity of the alveolar capillary unit.
