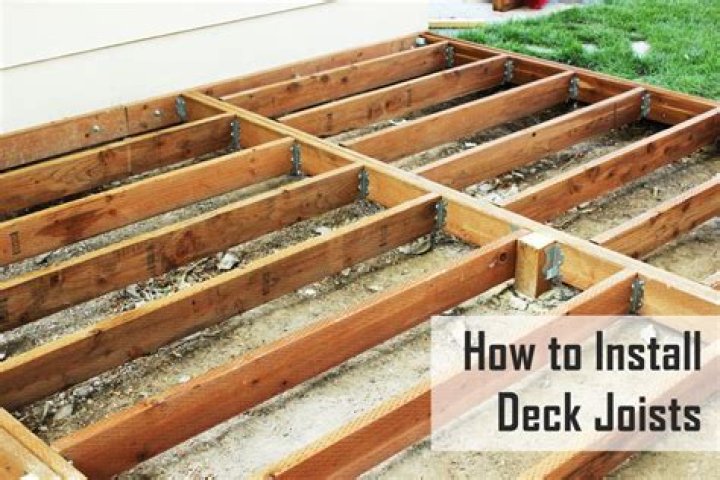

How do you fasten deck joists

Nails driven through the hardware will damage it. The rim joist can be fastened to the ends of the joists with 3 – 10d galvanized nails but the nails can pull out over time and the joists can then twist. … The IRC calls for joists to be fastened to the beam with 4 – 8d galvanized nails or metal connectors.

How can joists be fastened?

How do I fasten my deck rim joists?

Step 1: Attach Rim Joist Measure and cut the rim joists to length. Set one edge of a rim joist on the beam with the top edge of the other end flush with the ledger. Fasten the boards with two 3-inch deck screws. Fasten the other rim joist the same way.

Can you screw deck joist?

joist hanger nails for nailing into the side of the joist (Photo 5); for double hangers, use 8d or 10d nails. … The manufacturers agree: Never use galvanized deck screws or drywall screws to install joist hangers. Those screws don’t have the shank size and toughness to support joist loads.

Should I use nails or screws to build a deck?

The Consensus: For a deck build it’s best to use a combination of nails and screws. … Screws are superior for laying down the decking. They hold things flush better and have a better fastener/tensile strength, which keeps boards from popping up over time.

Are joist hangers stronger than screws?

Joist hangers are better because they allow for more accurate placement of joists. They also allow for toe-nailing, plus support the underside of the joist. This makes the hanger stronger than a toe-nail. While joist hangers are an expense, the ease and increased strength make them a better choice.

Should you use nails or screws for joist hangers?

Nails do matter. The length and size of nail is usually specified by the joist hanger manufacturer. Avoid the temptation to leave some nail holes in each hanger unfilled, however much you are tired. … Never use deck screws or drywall screws to install joist hangers.

Do you use joist hangers on rim joist?

Method 2: Installing hangers If it’s not convenient to stand on the outside of the rim joist to through-screw the fasteners, installing hangers to the rim joist before fastening it in position is a good option.

How do you reinforce deck joists?

A: The easiest way is to repair a joist is to install a sister joist to strengthen the damaged area. Use a hammer and chisel to chip away the damaged wood. Liberally apply two coats of waterproof sealer over the damaged joist. Cut a reinforcing sister joist from lumber that is the same dimension as the damaged joist.

How do you nail a rim joist?

The rim joist should be toe nailed into the top plate below using the appropriate nail size (likely 12d or 16d nails, depending on the material). Toe nailing is accomplished by nailing through the face of the rim board diagonally down into the top of the wall plate.

Article first time published on

Should deck boards be butted together?

We recommend butting treated deck boards together because as the moisture dries from the wood, the boards will shrink and naturally form gaps to allow water drainage. (Depending on moisture content, cedar, cypress and especially hardwood decking may require deliberate spacing for consistent joint sizes.)

Do you need to pre drill for deck screws?

Deck screws installed in the field, not close to the board’s end or edge, need not be predrilled. Predrilling is required near the end of deck boards to make room for the screw. As the screw is acting like a wedge, driving between the wood fibres. That screw pushes against the decking, splitting open the board.

Can I use a nail gun for decking?

Use a nail gun primarily for affixing the decking and trim (or fascia) boards, with stainless-steel-finish nails to avoid rusting. For adequate penetration, nails should be one-and-a-half inches longer than the boards.

What screws to use with joist hangers?

Common Joist Hanger Fasteners In general, connector manufacturers recommend 16d and 10d framing nails for anchoring joist hangers to headers or walls and shorter nails, called joist hanger nails, for anchoring the joists to the joist hangers.

How do you hang joists without a hanger?

Alternatives to using metal joist hangers are ledger strips, sliding dovetails or mortising and dowels. The methods vary depending on whether it is an exterior deck or an interior platform. When it comes to outdoor decks, the only plausible do-it-yourself technique would be to use a ledger strip to support the joists.

When nailing 2x6 inch joists What nail should be used?

In a 2×6 joist I’d use a total of 8 8d or 10d nails, 4 per side, typically 8d in size or in some cases 10d – these are the most-commonly-used nail sizes when toe-nailing 2x framing lumber as unless you’re using box nails, larger nails tend to split the lumber, especially when, as in your photo, they’re nailed too close …

What is the proper spacing for deck joists?

Deck joists are typically spaced either every 12 inches or 16 inches on center. The maximum joist spacing you can use will depend on the size and allowable span of your joists.

Are nails or screws stronger?

When deciding between nails and screws, keep in mind that nails are less brittle, so they provide greater shear strength. … Screws, on the other hand, may not be as forgiving, but their threaded shafts hold better in wood and draw boards together much more tightly and they have greater tensile strength.

Can you use a nail gun for joist hangers?

I have a feeling none of my guys or myself will EVER hand nail joist hangers again. These metal connector nail guns are amazing. … The nail actually sticks out of the end of the gun far enough so you can “place” the nail in the hanger hole prior to firing it.

How much weight can a 2x8 joist hanger hold?

Joist SizeMin Capacity lbs2x64002x85002x106002x12700

Is toe nailing stronger?

TOE-NAILING In contrast, toe-nailing produces a strong joint. The technique requires a pair of nails, driven at opposing 45-degree angles. It isn’t suitable for all joints, as the grain of one workpiece needs to be at an angle to the other.

How can I make my joists stronger?

As incremental parts of a building’s structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called “sistering,” or reduce wobbly floors with block inserts between the joists, called “blocking.”

How can I make my deck more sturdy?

To stiffen the deck, go underneath and install a row of 2×8 blocks down the center, perpendicular to the joists. Stagger them with enough room to nail or screw them in place through the end grain, then fasten the treated 2x4s to the underside of the joists so they run from corner to corner, forming an X.

How do I keep my deck joists from rotting?

Ventilation Dries Deck Joist Extending their Life.
Seal the Joist with a Water Repellant Sealer.
Allow Water to Escape Helps Preserve Deck Joist.
Overhang your decking, direct water away from the joist.
Slope Joist.
Flash the ledger and beam.
Remove Protruding Post Railing.

How do you secure a 4x4 post to a deck?

The quickest and most secure way to mount a wooden 4×4 or 6×6 deck post to an existing deck surface is via a Titan Post Anchor. Titan Anchors provide a solid, powder-coated steel connection point for your wooden post to attach to surface below.

How do you reinforce a deck post?

Reinforce post connections Strengthen post connections with carriage bolts. Drill holes, knock the bolts through, then tighten a washer and nut on the other side. Ideally, posts should sit directly under the beam or rim joist to support the deck.

What can I use for deck beams?

Pressure-treated lumber is the logical choice for the structural part of your deck—the posts, joists, beams and other members you normally don’t see. Pressure-treated lumber can support more weight and span longer distances than cedar, redwood or other woods commonly used for building decks.

Is it OK to splice a deck beam?

It is always best to use a continuous beam without seams for higher strength. … However, if your span is greater than 20′ (like the image below) you will likely need to splice some boards to form a beam. In order to do this you should overlap the individual parts of the beam so they are staggered if possible.

What kind of nails do you use for a deck?

The best nails for decking are stainless steel nails as they offer the greatest resistance to rust with minimum discoloration to woods such as cedar. However, stainless steel nails are considerably more expensive than other nails.

What is a joist header?

Header joists – A header, or rim joist, is used to frame an opening in the floor. It provides lateral stability. Floor joists – Floor joists are large wood framing members that are positioned on their narrow ends. They are evenly spaced and are connected to the sill plate.

What is the rim joist on a deck?

In the framing of a deck or floor system, a rim joist is attached perpendicular to the joists, and provides lateral support for the ends of the joists while capping off the end of the floor or deck system. … It is also confusingly called a header (header also refers to other framing components) or rim board.
