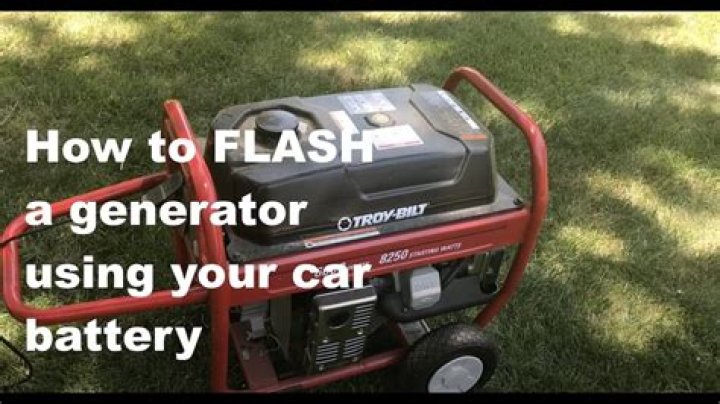

How do you flash a generator with a battery

Connect F+ to the positive pole of the battery. Hold the F- lead by the insulated portion of the lead wire, touch F- to the negative pole of the battery for about 5 to 10 seconds, then remove. Reconnect F+ and F- to the regulator. Repeat the procedure if the generator fails to build voltage.

How do you Remagnetize a portable generator?

Using this principle, you can plug an electric motor into a generator, start the generator and then turn the motor to generate an electric current. The current “flashes” the field windings in the generator and remagnetizes them.

How do I re energize my portable generator?

While depressing the trigger on the drill, spin the drill chuck in reverse direction. This will excite the field and the generator will now produce electricity. If spinning the chuck one direction does not work, try spinning the chuck in the other direction as you may have the reverse switch positioned backwards.

How do you flash a generator when output is lost due to loss of excitation?

1. Remove exciter field leads F+ and F- from the voltage regulator. …
2. Measure the exciter field resistance from the F+ to the F- lead. …
3. Connect F+ to the positive pole of the battery.

How would you get a generator to work after it has lost all of its residual magnetism?

All Answers (6) If a generator lost its residual magnetism, it should be excited separately i. e. from an external power source up to gaining the essential magnetism. This is also done for the first time operation of a new generator.

What is the residual magnetism of generator?

Residual magnetism is defined as the amount of magnetization left behind after removing the external magnetic field from the circuit. … This phenomenon of the residual magnetism is widely seen in the transformers, generators, and motors. It is also called as Remanence.

What can cause a generator not to supply light?

• Loss of Generator Production? …
• Loss of Residual Magnetism (Most Common) …
• Poor Connections. …
• Excitation Circuit Wiring Error or Blockage. …
• Tripped Breaker. …
• Broken or Grounded Generator Excitation Winding. …
• Worn Brushes. …
• Defective Breaker.

Does a generator slowly lose its residual magnetism with time?

When self exited generator is not used for long time, there is a loss of residual magnetism. A loss of residual magnetism can be built up by connecting field.

Can I use a car battery to start my generator?

The engine of a standby generator is a lot like a car engine. Although you need fuel to make the engine run, you also have to have a battery that runs the electronic components. … So essentially, the generator does start with the battery, as it wouldn’t be able to start without it.

How does a generator exciter work?

In the past, the exciter was a small DC generator coupled to the same shaft as the rotor. Therefore, when the rotor rotates this exciter produces the power for the electromagnet. … This output from the exiter then controls the magnetic field of the rotor to produce a constant voltage output by the generator.

Article first time published on

Why do you need to excite a generator?

Generators turn mechanical energy into electrical energy by moving electrical conductors in a magnetic field. Excitation creates the electromagnetic field to make this mechanical to electrical conversion occur.

How many volts should a portable generator put out?

Home standby generators and most portable generators can supply either 120 volts or 240 volts and do it at the same time. Different voltages make it important to understand why we rate generators in watts.

What is field flashing in synchronous generator?

If the machine does not have enough residual magnetism to build up to full voltage, usually provision is made to inject current into the rotor from another source. … Since this initial current is required for a very short time, it is called “field flashing”.

How does a generator work without electricity?

When the generator detects a power outage, the engine starts automatically and turns a power generating unit called an alternator. The alternator converts the mechanical energy of the internal combustion engine into electrical energy.

What generates electricity in a generator?

Electric generators work on the principle of electromagnetic induction. A conductor coil (a copper coil tightly wound onto a metal core) is rotated rapidly between the poles of a horseshoe type magnet. … The magnetic field will interfere with the electrons in the conductor to induce a flow of electric current inside it.

What happens if you don't polarize a generator?

A generator, unlike an alternator, can run off both positive and negative current. … As a result, if the generator is not polarized to a positive charge and positive current is sent into the terminals, the generator can be damaged as well as the other motors and switches on the same current.

How do you hook up a voltage regulator to a generator?

1. Weld the regulator mount to the tractor frame. …
2. Attach the regulator to the mount. …
3. Connect the positive battery cable wire — usually red — to the regulator. …
4. Polarize the generator or alternator through the regulator.

How do you polarize a battery?

Clip your jumper wire to your battery terminal. Find the terminal marked “F” (for fuel terminal) on the regulator. Touch the free end of the jumper wire to the “F” terminal twice for less than a second each time. You have now polarized your regulator.

What happens to a generator when the power comes back on?

The generator system detects a power outage immediately and waits a few seconds for the power to return. … It all happens just seconds after the power goes out. When the utility power is restored, the system reconnects the utility lines and shuts the generator down.

Which type of generator must be self excited?

Modern DC generators with field coils are self-excited generators which get started with the initial current in the field coils. When generator is switched off, a small magnetism is developed in rotor iron which induced electromotive force in the armature due to which current is produced in the field windings.

What does a capacitor do in a generator?

Capacitor. The capacitor has two functions; it induces voltage into the rotor as well as regulates voltage. A bad capacity will result in a low voltage reading from the generator as the power being generated will be from the residual magnetism of the rotor (usually about 2-5V).

Can generators lose their magnetic field?

Residual magnetism in the generator exciter field allows the generator to build up voltage during start-up. This magnetism is sometimes lost due to shelf time or improper operation, among other reasons.

What kind of battery does a generator use?

Most generator sets use a standard lead acid battery. There are two types of batteries available: Maintenance Free – Often referred to as a sealed battery. Cannot add electrolyte or check specific gravity of battery.

How long can you run a generator without a load?

At some point, generators will undoubtedly need to be run at less-than-optimal load. When it is not a regular and prolonged occurrence, this does not have to cause any damage whatsoever to your generator. No load operation should never exceed 15 minutes.

How do you test a generator capacitor?

1. Use your digital multimeter (DMM) to ensure all power to the circuit is OFF. …
2. Visually inspect the capacitor. …
3. Turn the dial to the Capacitance Measurement mode. …
4. For a correct measurement, the capacitor will need to be removed from the circuit. …
5. Connect the test leads to the capacitor terminals.

What is flashing the field?

Flashing The Field. A maintenance procedure for a DC generator that restores residual magnetism to the field frame, A pulse of current from a battery is sent through the field coils in the direction in which current normally flows.

How do you flash a brushless generator?

1. Start the generator. …
2. Insert the steel rod into the chuck of the corded drill. …
3. Insert the other end of the steel rod into the cordless drill. …
4. Plug the corded drill into the generator. …
5. Hold both drills tightly. …
6. Press the trigger switch of the cordless drill, so that it spins the chuck of the corded drill.

What happens when there is loss of excitation for a generator?

When a generator loses its excitation, the rotor current decreases gradually and the field voltage slowly decays as dictated by the field time constant. As a final outcome, the generator starts to consume reactive power from the power system instead of supplying it.

How do brushless generators work?

What is a brushless generator? A brushless generator uses a motor without carbon brushes to create electricity. Instead, a brushless motor uses a small generator on the end of the equipment to transfer electrical current. Brushless alternators are suitable for primary generators and capable of long-term use.
