How do you grade a foundation slope

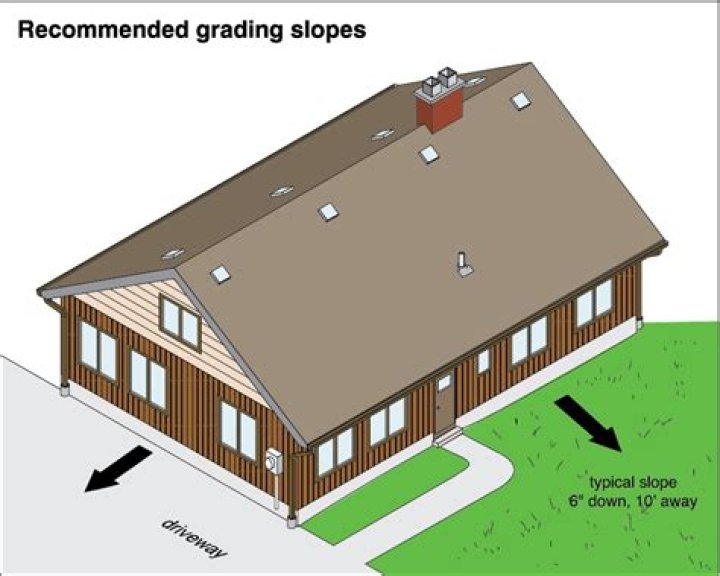

The rough grade must be low enough against the foundation to allow an 8-inch reveal between the bottom of the exterior finish and the final grade and landscaping. Slope the rough grade away from the home to meet local code, typically so that it falls a minimum of six inches within the first 10 feet from the foundation.

How do you grade a slope?

How do you calculate the percentage grade of a slope? Slope can be calculated as a percentage which is calculated in much the same way as the gradient. Convert the rise and run to the same units and then divide the rise by the run. Multiply this number by 100 and you have the percentage slope.

How much does it cost to grade a slope?

Slopes. Leveling a slope costs between $1 and $15 per cubic yard of dirt. Basic lawn re-sloping to prevent erosion and fix drainage averages at $1,900 for most homeowners.

How do you grade a slope away from a foundation?

Ideally, the ground should drop 1 inch for every 1 foot that you move away from the house for the first 5-to-10 feet around your house. While this is not always possible, the ground should never be sloping upwards as you move away from your house foundation.

How do you grade a yard that slopes toward the house?

The only way to correct lawn that slopes towards the house (other than re-grading), is to use a drain. In your situation, with paving along the perimeter of your home, there would be two types of drains. This would be a perforated pipe that is installed along the foundation of your house.

How do I raise the grade around my foundation?

Wet down the ground around the foundation with a sprinkler for several hours to soften the soil if it is hard and dry. Wait at least 24 hours and then till the area with a tiller, avoiding areas where utility lines are buried. Spread 3 inches of fresh topsoil over the surface and till it in to the existing soil.

How steep is a 20 percent slope?

DegreesGradientPercent2.86°1 : 205%4.76°1 : 128.3%7.13°1 : 812.5%10°1 : 5.6717.6%

How do you fix negative grading on a house foundation?

Remove landscaping around the home where you have the negative drainage issue. …
Scoop out grass around the natural area and set it aside. …
Fill the natural area with additional soil to raise the grade. …
Add more soil out from the natural area, sloping it away from the house.

What is the minimum grade fall away from foundation walls?

Lots shall be graded to drain surface water away from foundation walls. The grade shall fall a minimum of 6 inches (152 mm)within the first 10 feet (3048 mm).

How do you level uneven ground?

Rake the area to further level the ground. Move the rake forward and backwards over the land, spreading the soil evenly across the area of the plot. Use the teeth of the rake to break up any clumps that remain. Use the back of the rake to level areas that are particularly uneven.

Article first time published on

What can I do with a downward sloped backyard?

Add a Deck. Constructing a deck over a steep downward slope affords level space for entertaining and great views of a garden. …
Build a Banked Border. …
Design Terraces Around Different Themes. …
Plant a Living Mural. …
Keep Plantings Loose and Low-Maintenance. …
Install a Rail. …
Create Zones. …
Lay a Feature Path.

How do you divert water runoff from home?

Clean Your Gutters. This task is both simple and free. …
Extend Your Downspouts. …
Create A Rain Garden. …
Install A Rain Barrel. …
Seal The Driveway. …
Install A French Drain. …
Improve The Grading. …
Install A Sump Pump.

Can I use topsoil for grading?

Before you do any grading on your property, call the local utilities so they can mark where buried lines are on your property. … Place the topsoil in a location where you can access it easily to reapply it to the lawn once you finish grading.

What type of soil is used for grading away from the house?

Foundation Soil Grading If your foundation soil is pitched towards your home, it’s recommended that you add dirt to the area until the slope moves away from the house (this is known as “grading”). This soil should be dense- preferably clay soil.

What material is best for grading around house?

Best Soil for Grading Around House The ideal fill is a mix of silt and clay, which is impermeable enough to divert water away but also has enough gaps so that it won’t hold it against the structure. It is important to avoid very sandy or high clay content soils.

How much of my foundation should be exposed?

Typically the codes say the amount of exposed foundation should be between a minimum of 4 and 6 inches above the finished soil that touches up against the foundation.

How steep is a 13 percent grade?

SlopeAngle (degrees)GradientGrade (%)13123.114124.915126.8

How steep is a 30 percent grade?

Slope (%)Approximate degreesTerminology15 – 308.5 – 16.5Strong slope30 – 4516.5 – 24Very strong slope45 – 7024 – 35Extreme slope70 – 10035 – 45Steep slope

What is considered steep slope?

Steep slopes are legally defined as hillsides having a 15 foot, or greater, vertical rise over 100 feet of horizontal run, or 15% slope (Figure 1). They are often undesirable ar- eas for development due to the difficulty of building on steep grades.

How do you add dirt to a slope?

Spread the soil, starting at the lowest point where it is needed. Dump wheelbarrow loads in a line across the slope, building up the lowest area to the approximate height desired. Continue dumping loads of soil to create a roughly level area on the slope.

What is the minimum slope for water drainage?

For efficient drainage, paved surfaces should have a minimum 1-percent slope. Turf or landscaped areas should have a minimum slope of 2 percent.

What is the recommended slope for drainage away from the foundation wall of a house?

You must have a minimum five-degree slope away from your home, on all sides. What’s a five-degree slope? If you measure six feet away from the foundation, the ground should be three inches lower than the ground next to the house. Having a five-degree slope prevents water from pooling around your foundation.

What is code for concrete slope?

The bottom line is that: The 2018 International Residential Code (IRC) Section 309.1 stipulates that a garage floor must slope towards the garage door or a drain. There is no code on how much the slope should be. Between 1-2% is considered as the best practice and will ensure good drainage.

How much slope is a yard?

The first rule of grading is that the ground should slope away from your house in all directions dropping at least two or three inches every ten feet. The maximum slope in a lawn should be twelve inches for every four feet.

What should I use to level ground?

If you are leveling a small area, you can tamp the soil using your foot and the bottom of your rake. If you are leveling a large area, or it is especially important to keep the ground level (such as if you are building a structure), get a tamper or plate compactor to compact the soil.

What equipment is needed to level a yard?

Basic equipment needed to level your lawn is pretty simple: a hand rake, landscape rake, plastic leaf rake, a large push broom, a shovel, an edger, and a wheelbarrow. Additionally, the tool I use is a leveling rake, like the Accuform AccuLevel by Par Aide or a similar one on Amazon.

How do you level a ground with a 2x4?

STEP 1: Determine your location and remove any large rocks or debris. …
STEP 2: Place 2x4s on the site and place a level on top. …
STEP 3: Add or take away soil until the ground is level. …
STEP 4: Repeat the process until the entire area is flat. …
STEP 5: Rake any remaining rocks or debris and tamp the ground.

Can you put a pool in a sloped yard?

The short answer is yes. By working with professional pool builders and landscapers, you can pursue pool installation even when you’re dealing with a slope. … You can use the retaining walls to ensure runoff won’t end up in the pool or even create water features or ledges for sitting and entertaining.

What do you do with a steep sloped backyard?

Break Out in Tiers. 1/11. …
Build Some Stairs. 2/11. …
Make a Natural Staircase. 3/11. …
Design a Waterfall. 4/11. …
Lay a Winding Path. 5/11. …
Erect a Retaining Wall. 6/11. …
Cultivate a Rock Garden. 7/11. …
Devise a Destination Fire Pit. 8/11.

Can I grade my yard myself?

If your ground is relatively level, gently sloped, and has no major impediments like huge boulders, you probably can grade your lawn yourself. The tools you need for soil grading are simple. First, because you may need to haul soil from a higher spot to a lower spot, make sure that you have a wheelbarrow and shovel.

How do you level a yard with a slope?

Step 1: First Seek Permission.
Step 3: Grade.
Step 4: Measure the Rise and Run of your Land.
Step 5: Calculate and Mark the number of Terraces.
Step 6: Water the Ground.
Step 7: Build Retaining Wall(s)
Step 8: Fill with Sand. Make it Compact.
Step 9: Plant New Grass Seed or Sod.
