How do you graph linear inequalities
By Victoria Simmons

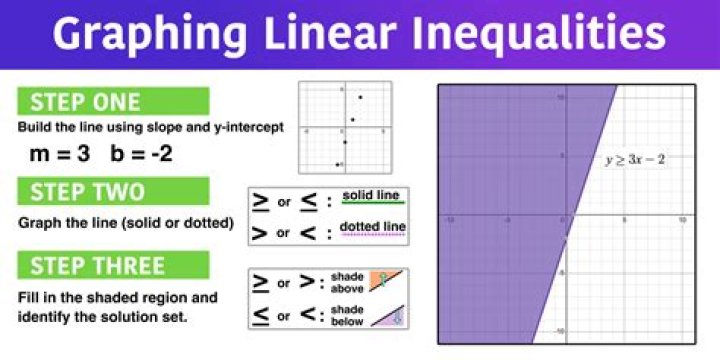

Rearrange the equation so “y” is on the left and everything else on the right.Plot the “y=” line (make it a solid line for y≤ or y≥, and a dashed line for y< or y>)Shade above the line for a “greater than” (y> or y≥) or below the line for a “less than” (y< or y≤).
How do you graph linear inequalities step by step?
- Step 1: Solve the inequality for y. …
- Step 2: Graph the boundary line for the inequality. …
- Step 3: Shade the region that satisfies the inequality. …
- Step 4: Solve the second inequality for y. …
- Step 5: Graph the boundary line for the second inequality. …
- Step 6: Shade the region that satisfies the second inequality.
How do you show inequalities on a graph?
An inequality can be represented graphically as a region on one side of a line. Inequalities that use < or > symbols are plotted with a dashed line to show that the line is not included in the region. Inequalities that use ≤ or ≥ symbols are plotted with a solid line to show that the line is included in the region.
How did you graph each of the linear inequalities?
To graph a linear inequality in two variables (say, x and y ), first get y alone on one side. Then consider the related equation obtained by changing the inequality sign to an equality sign. The graph of this equation is a line. If the inequality is strict ( < or > ), graph a dashed line.How do you graph a linear equation?
To graph an equation using the slope and y-intercept, 1) Write the equation in the form y = mx + b to find the slope m and the y-intercept (0, b). 2) Next, plot the y-intercept. 3) From the y-intercept, move up or down and left or right, depending on whether the slope is positive or negative.
What is the graph of a linear function?
Linear functions are those whose graph is a straight line. A linear function has the following form. y = f(x) = a + bx. A linear function has one independent variable and one dependent variable. The independent variable is x and the dependent variable is y.
How do you graph inequalities on Excel?
- Create a column of data points in the “A” column. …
- Enter the equation of the inequality in cell “B1” and replace “x” with “A1.” For example, if your inequality is y<3x, you would enter “=3*(A1).”
- Copy the contents of cell “B1.”
What are two ways to graph a linear equation?
There are three basic methods of graphing linear functions. The first is by plotting points and then drawing a line through the points. The second is by using the y-intercept and slope. The third is applying transformations to the identity function f(x)=x f ( x ) = x .How do you graph a linear inequality Class 11?
Step 1) First of all, draw a graph of the equation but remember to replace the inequality sign with an equal sign. Step 2) Use a dashed line if the inequality involves either < or >. Use a dotted line if they include ≤ or ≥ . Step 3) If the line itself constitutes a part of the solution, use a solid line.
How do you graph linear programming?- Step 1: Formulate the LP (Linear programming) problem. …
- Step 2: Construct a graph and plot the constraint lines. …
- Step 3: Determine the valid side of each constraint line. …
- Step 4: Identify the feasible solution region. …
- Step 5: Plot the objective function on the graph. …
- Step 6: Find the optimum point.
What type of graph does a linear equation has?
A linear equation is an equation with two variables whose graph is a line. The graph of the linear equation is a set of points in the coordinate plane that all are solutions to the equation.
Can you graph inequalities on a TI-84 Plus CE?
The Inequality app on your TI-84 Plus calculator is a powerful mathematics tool. … Press any key to enter the Inequality Graphing app. If Inequality Graphing is already running, you see the third screen. Press [1] to re-enter the app.
How do you graph a function on a TI-84 Plus?
On the TI-83 and TI-84, this is done by going to the function screen by pressing the “Y=” button and entering the function into one of the lines. After the function has been entered, press the “GRAPH” button, and the calculator will draw the graph for you.
Can you graph one variable?
To visualize one variable, the type of graphs to use depends on the type of the variable: For categorical variables (or grouping variables). You can visualize the count of categories using a bar plot or using a pie chart to show the proportion of each category.
How do you tell if a graph is a linear function?
How Can You Tell if a Function is Linear or Nonlinear From a Table? To see if a table of values represents a linear function, check to see if there’s a constant rate of change. If there is, you’re looking at a linear function!
How do you graph a less than or equal to inequality?
When graphing a linear inequality on a number line, use an open circle for “less than” or “greater than”, and a closed circle for “less than or equal to” or “greater than or equal to”. The solution set for this problem will be all values that satisfy both -3 < x and x < 4.
What is a linear equation in 2 variables?
An equation is said to be linear equation in two variables if it is written in the form of ax + by + c=0, where a, b & c are real numbers and the coefficients of x and y, i.e a and b respectively, are not equal to zero. For example, 10x+4y = 3 and -x+5y = 2 are linear equations in two variables.
What is slack inequality?
(v) Inequalities involving the symbol ‘≥’ or ‘≤’ are called slack inequalities. For example, 3x – y ≥ 5, x ≤ 5. 6.1.2 Solution of an inequality. (i) The value(s) of the variable(s) which makes the inequality a true statement is called its solutions.
