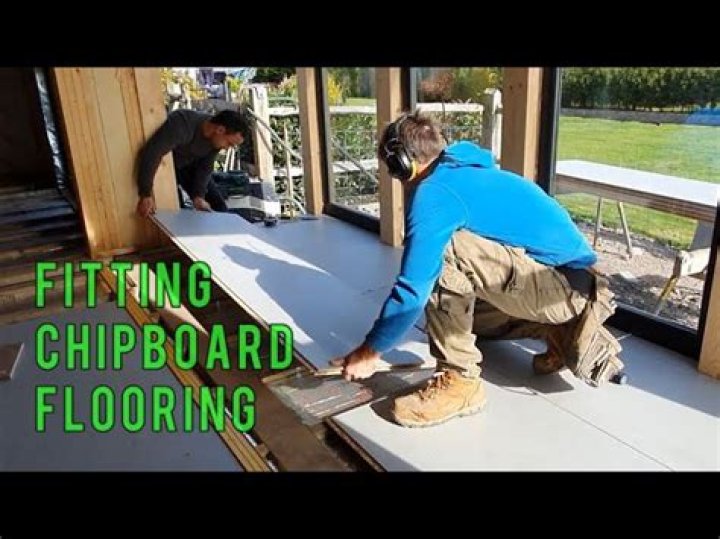

How do you install chipboard flooring on joists

Firstly, apply a continuous bead of adhesive to the joists and noggins on which the chipboard panels will be laid. Then lay a chipboard flooring panel down, adding a screw to the tongue at each tongue and groove joint, to secure it to the joist below.

Do you have to join chipboard flooring on a joist?

Always make sure the joists are clean and free of any dust before laying boards down. … Continue to lay chipboard flooring across the joists for the rest of the floor, ensuring the joints along the 600mm edges are staggered – always avoid joining on the same joist wherever possible.

How do you secure chipboard flooring?

Connecting chipboard flooring Firstly, apply a continuous bead of adhesive to the joists and noggins on which the chipboard panels will be laid. Then lay a chipboard flooring panel down, adding a screw to the tongue at each tongue and groove joint, to secure it to the joist below.

Do you need underlay on chipboard flooring?

The chipboard subfloor should be flat and level before any hardwood flooring is fitted. … If engineered wood flooring is being installed, fibre boards can also be used to even out small undulations in the subfloor. Do not use underlay to level a subfloor. Use a moisture meter to ensure the chipboard subfloor is dry.

Which way up does tongue and groove chipboard go?

Boards are laid lengthways across the joists and ‘printed side’ up. Loose lay the first board so that its grooved side is towards the wall. Align it so that it is square with the joists and leave a 10mm gap along the wall edge to allow for expansion.

Do you need noggins for chipboard flooring?

Structurally it’s not necessary, the chipboard is designed to carry itself but it can creak and squeak after a while without a noggin. Always use plenty of glue on the chipboard joints.

What are the best screws for chipboard flooring?

You want either No8 or 4mm screws at the length needed. The 4mm gold screws only go up to 50mm long. Dont forget to drive 5/32″ (4mm) clearance holes through the chipboard.

What goes on top of joists?

Sub-floor Its sturdy structural part resting on top of the floor joists It acts as a foundation of the underlayment and the floor covering. … Sub-floor generally holds all the above layers plus people, furniture, pets, and everything in the house. the subfloor can be made from particleboard, OSB, Plywood, or concrete.

Is 18mm chipboard OK for flooring?

Chipboard flooring is available in 18mm and 22mm thicknesses, and the tongue & groove sheets are 2400m x 600mm (approx. 8′ x 2′) in size. The sheets use high-density particleboard and are suitable for both domestic and commercial flooring.

Can you put floor over joists?

To answer directly the question – Yes, it is entirely possible to install hardwood flooring directly on top of the joists. Both solid wood and engineered can be fitted this way.

Article first time published on

Why do floating floors fail?

The most common cause of peaking is no expansion in your floating floor between the walls/vertical surfaces, or the overzealous use of water. This “expansion gap” allows for the entire floor to expand/contract in situations of changeable weather conditions, for example when it is raining or when the weather is warm.

What underlay is best for solid wood flooring?

A slotted underlay can be used with solid wood flooring or engineered wood flooring. Glue is applied into the slots of the underlay using a barrel gun which helps make the application quick and mess free. The wood flooring is then fixed on top and held to the subfloor by adhesive through the slots.

What kind of flooring can you put over particle board?

As far as hard surface flooring is concerned, particle board subflooring will limit you to a vinyl plank floor or a laminate floor. Sublfoor leveling is a very difficult and costly task on particle board. If the subfloor is not smooth enough for a plank floor, then we would only be able to install carpet.

What is the best glue for chipboard flooring?

D4 PU Chipboard Flooring Glue is a one-component, high waterproof wood adhesive designed for bonding the board to the joist, as well as within the tounge and groove joint itself.

How should board ends be fastened to a joist?

Fix the board to each joist by driving a nail into the tongue of the board at a 45º angle. If your boards do not stretch across the room, the ends must butt together over a joist. Cut and scribe the final board and secure using round lost-head wire nails.

Do you start with the tongue or groove?

Begin the first row of flooring by placing the planks with the tongue side facing the wall. Install the second plank next to the first by aligning the tongue into the groove and press the plank down to snap it in place.

Which side is the tongue and groove?

Which side is the tongue, which the groove, and which goes first during installation? The tongue is the side that you will want to place against the wall as you start your laminate-flooring installation.

Are chipboard screws self tapping?

Chipboard Screws The nibs help to countersink the screws into the wood less difficult so that pre-drilling is unnecessary which, along with the fact they are self tapping, saves them both time and money.

Can you screw straight into chipboard?

Chipboard screws are self-tapping screws most commonly designed with a single thread that runs all the way from the base of the head to the tip. … Therefore, the screw will go through the soft material a lot quicker. Chipboard screws come in two common types: smooth shank and full thread.

How long should flooring screws be?

You’ll want the screw to go about an inch past the plywood into the joist or underlying layer beneath it. So if your subfloor is 3/4 of an inch thick, any screw about 1 3/4 inches long will do the trick. If the plywood subfloor you’re placing is 5/8 of an inch thick, you need a screw about 1 5/8 inches long.

Does chipboard flooring expand?

Acclimate Chipboards Depending on the environment, the boards will expand or contract in response to the temperature of the room. If this occurs after they are already fitted, they might crack or shrink, leaving gaps in the flooring and reducing the strength of the structure.

Is 18mm chipboard OK for loft flooring?

18mm is fine for storage,you could try 22mm but consider the extra weight.

What does P5 mean on chipboard?

Most manufacturers now promote the moisture resistant flooring (P5) version, as the price difference between standard grade flooring (P4) and moisture resistant flooring (P5) are negligible, but the advantages of a P5 board (moisture resistant chipboard) out way the slight cost increase.

What is P5 chipboard?

Stable, durable and easy to lay, Caberfloor P5 – 22mm is a high-strength wood particleboard engineered for all domestic and most other floors. Available in 18 or 22mm thickness, the moisture resistant variant is the UK’s most widely used particleboard flooring panel.

What thickness should floorboards be?

When choosing a joist spacing, check that your floorboards (or sheets) are strong enough to span over the width chosen. As a general rule – floorboards should be a minimum 16mm thick for joist centres up to 500mm and 19mm minimum for centres up to 600mm.

Can you lay hardwood flooring on joists?

If installing a secretly nailed floor over joists, the joists need to be seasoned timber or Cypress as secret nailing cannot be re-punched. If the joists shrink away from the floor, movement of boards on the fixings is likely to cause excessive squeaking.

What Wood goes over floor joists?

Plywood and OSB subfloors over joists are most common in newer homes and new construction, typically in homes with basements or crawlspaces.

How do you nail floorboards to joists?

Use two nails at each point the board passes over a joist. Position the nails centrally on the joist and about 25mm in from the edge of the board. When the board is nailed all the way along its length, go back and use a nail punch to make sure the nail heads are below the surface of the wood.

What direction do floor joists run?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.

What goes under floor joists?

What Is a Subfloor? Subflooring provides a base for finish flooring and also serves as a platform during construction. It may be made of boards laid either at right angles or diagonally across joists. Or the subfloor may be made of plywood or other panel products that are laid perpendicular to the joists.

What are the codes for drilling or notching joists?

Holes bored in joists shall not be within 2 inches (51 mm) of the top or bottom of the joist, and the diameter of any such hole shall not exceed one-third the depth of the joist. Notches in the top or bottom of joists shall not exceed one-sixth the depth and shall not be located in the middle third of the span. R502.
