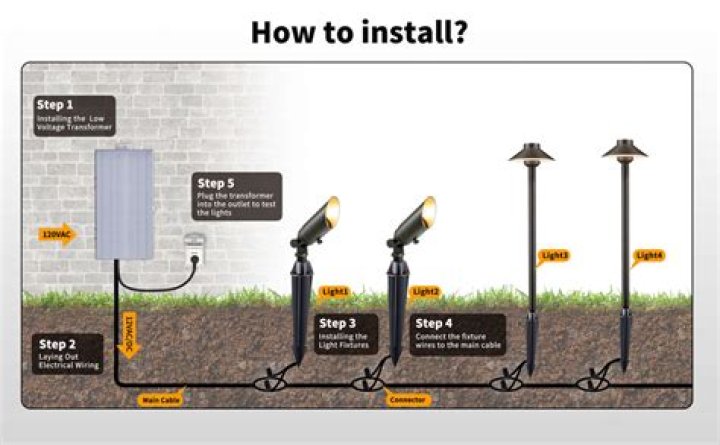

How do you install outdoor ground lights

Answer Not Found

Can I attach ground wire to mounting screw?

Hook the screw loop around the green ground screw on your mounting bracket or light fixture and tighten the screw to hold it in place. If your light fixture has its own green ground wire you will need to connect the two ground wires using a wire nut.

How do ground lights work?

The Ground Detection Lights are designed for operation on a 3 Phase, Ungrounded System or Hi Resistance Grounded System. It will not work on any type of Solid Grounded System. … When one phase of the power system shorts to ground, the Light the Ground is on will go out, the other 2 lights will be at Full Brightness.

Where do you connect the ground wire?

Ground wires are typically attached to a ground screw or screw terminal connection on either the light fixture, receptacle outlet, or electrical devices or components including the electrical junction box, or ground lead wire from light fixtures and other the electrical devices which provide a connection for the ground …

Do exterior lights need a box?

If you’re wondering how you install a light fixture without an electrical box, the short answer is that you don’t. The electrical box, or junction box, is a code requirement that was established to prevent fires and other electrical accidents.

Where do you put ground wire without ground screw?

If there are no ground screw hole available in the box; attach the ground wire to the box using a green ground clip (captures the wire and slips over the edge of the box, holding the ground wire in good contact with the box). Ground screws and clips will be available at big box or good hardware stores.

How do you light a long driveway?

Adding hanging lights offers another solution for lighting a long driveway. If you have a lot of trees along your driveway, you may hang electric or solar-powered lanterns from the trees to light the path. For less lighting, carefully placed spotlights will highlight curves and other obstacles along the driveway.

What to do if there is no ground wire on light fixture?

If by chance you are installing an electrical light fixture that has no ground wire into an electrical box with no ground wire as well, then simply connect together the hot wire from the electrical box to the hot (black or red) wire on the light fixture.

Should ground wire be attached to metal box?

If a metal box is being used, best practice is to insert a green grounding screw into the threaded hole in the back of the box or enclosure. The equipment-grounding wires then connect to the screw, making the metal box part of the grounding system.

Do outdoor lights need to be grounded?

Every light fixture in your house must be properly grounded, and this requirement is even more important for those outside. If a fixture isn’t grounded, someone can get a shock just by touching it, and that’s more dangerous in moist outdoor conditions than it is indoors.

Article first time published on

Do you need a ground wire for light fixture?

In the US, a ground wire is required. The lighting fixture must have a place to install a ground wire if it has any metal parts that are not conducting. Whether in the US or not, it is highly recommended that all metal parts are grounded. Do not run new wire without a ground.

Does ground wire need to be connected?

Ground wires must be firmly connected at all points. And if conduit or sheathing is used as a ground path, connections must be tight. If you’re not sure if your outlets are grounded, a receptacle analyzer will tell you. This section shows how to install grounding in outlets, fixtures, and switches.

Where should garden lights be placed?

The fixtures and lamp strengths are specified according to the mature size of the plant or the size of the hardscape area to be illuminated. Well-lights are extremely effective for aiming light up a tree or column. They should be located 2 to 4 feet from the trunk base for small ornamental trees to light the canopy.

Does outdoor wiring need to be in conduit?

Generally speaking, yes, outdoor wiring needs to be in conduit to protect it from physical damage. Type UF cable needs conduit when exposed, no need for conduit on the buried sections.

What type of cable is used for outside lights?

Once outdoors, you should supply your lights via 1.5mm² three core steel-wire-armoured cable (SWA). Make sure that you only fit weatherproof lights that are suitable for outdoor use and that your circuit is RCD-protected.

Can you wire a outside light to a plug?

There are two wiring options. One is to hardwire the lights to the switch itself. The other is to wire it to an exterior outlet with a transformer. The switch would turn on the outlet which would activate the transformer.

How do you install motion sensors outside lights?

1. Pick an outdoor motion sensor kit online. First, make sure the existing light has an opening to screw into.
2. Turn the power off to the light, and remove the cover. …
3. Remove the insert. …
4. Run the wires into the light. …
5. Connect the wires. …
6. Adjust the sensitivity.

Do motion lights need a switch?

Seeing as motion detector lights were created to turn on without you having to flip a switch, you do not have to have a switch to have motion detector lights. Having a switch that attaches to your lights, however, expands your lights’ capabilities.

How do you attach string lights to siding?

To attach them to the hooks, I just used an old wire coat hanger to loop through the screw holes in my boxes, twist, and hang them up. The little hooks made it really easy to string our outdoor lights to the corner of our house too. The only bummer is the hooks only work if you have vinyl siding that can be separated.

Do you need to caulk outdoor light fixtures?

Rain will often find its way into a wall if the exterior light fixture is not properly caulked. Therefore, proper caulking will help prevent water from entering into a wall; helping prevent damage and mold.

Why do I need a junction box?

A junction box performs several essential functions: Encloses the wiring connections and protects them from physical damage. Provides a means for mounting the electrical device and securing the electrical cable(s) serving the device. Prevents accidental contact with live wires and terminals.
