How do you measure a hacksaw blade

Length of hacksaw blade is measured from Centre of one pin hole to the centre of other pin hole.

How do you determine the size of a hacksaw blade?

Measured the Length of a Hacksaw Blade Points : Measured the Length of a Hacksaw Blade, How is measured the length of a hacksaw blade The length of the blade is the distance between the centers of the holes at each end. The common lengths are 8”, 10”, and 12”. The point is measured by the number of teeth per inch.

What do the numbers on a hacksaw blade mean?

Blades are also described by the number of teeth per inch (TPI). Blades have 14, 18, 24, 32 teeth per 25mm (inch). A blade with 14 TPI is coarse whilst a blade with 32 TPI is very fine. Blades eventually wear or break and need replacing.

Is a standard hacksaw blade 10 to 12 inches?

Standard hacksaw blade lengths are 10 to 12 in (250 to 300 mm). Blades can be as small as 6 in (150 mm). … The blade chosen is based on the thickness of the material being cut, with a minimum of three teeth in the material.

How are hacksaw blades specified?

A hacksaw blade is specified by its length.

What is a 32 TPI hacksaw blade used for?

For a job that requires medium-duty cutting, like a thin wall electrical conduit, a 24-teeth per inch blade would do a better job. When cutting light metals like aluminum, a 32-teeth per inch blade should easily do the trick.

What is the fine pitch size of hacksaw blade?

ClassificationPitchCoarse1.8 mmMedium1.4 mm & 1 mmFine0.8 mm

Which way do teeth go on hacksaw?

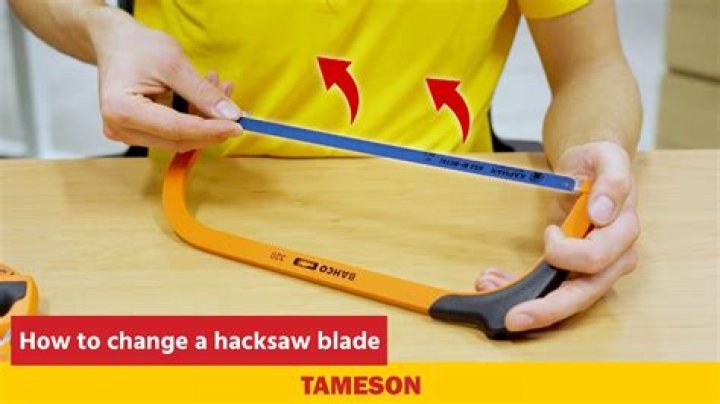

Should hacksaw teeth face forward or backward? Install the hacksaw blade so the teeth face forward. The saws are designed so the blade will cut when it’s pushed (the forward stroke) rather than when pulled (see photo). Some blades have an arrow that shows the correct installation (the arrow points toward the handle).

What are the three standard lengths of hacksaw blades?

Hacksaw blades The standard hacksaw blade is nominally 12 inches long (actually 12 3/8 inches). Ten-inch blades are also made, and the typical hacksaw frame is adjustable to take blades 8, 10 or 12 inches long.

Which hacksaw blade is used for cutting along curved lines?

Flexible blade: Only the teeth are hardened. Because of their flexibility, these blades are useful for cutting along curved lines.

Article first time published on

How do I choose a hacksaw blade?

Hacksaw blades are selected by choosing the correct tpi (teeth per inch) for the type of metal that needs to be cut. The higher the tpi, the more aggressive the cut.

Why do hacksaw blades have different numbers of teeth?

Why are Hacksaw Blades Made with Different-Sized Teeth? Different-sized teeth provide varying levels of cutting power. Large blades with fewer teeth are better suited to tough materials, while smaller blades with a greater number of teeth are designed for finer work.

How many teeth per inch should a hacksaw blade have?

Hacksaw blades are available in grades from coarse to very fine, based on the number of teeth per inch. Again, this number is generally stamped on the side of the blade. Most do-it-yourselfers should keep a few medium (18 teeth per inch) and fine (24 teeth) blades on hand, and buy coarse or very-fine blades if needed.

What safety measures should be taken while performing hacksaw?

Select correct blade for material being cut.
Secure blade with the teeth pointing forward. …
Keep blade rigid, and frame properly aligned.
Cut using steady strokes, directed away from you.
Use entire length of blade in each cutting stroke.

What saw to use to cut metal?

The hack saw is the most common hand saw used to cut metal. The hack saw’s most recognizable characteristic is a rigid, C-shaped frame attached to a pistol grip handle. A thin, slightly flexible blade runs across the open portion of the hack saw’s frame.

How many teeth per inch does a 16 point hacksaw blade have?

Manufacturer‎FeinSize‎16-Inch, 8 Teeth/InchMaterial‎High Speed SteelItem Package Quantity‎1Included Components‎Unit^Instruction Guide

What are the two categories of hand hacksaw blades?

Hacksaws consist of two main elements: a frame with a handle and a blade. Hacksaw blades are generally classified as either hardened or flexible, though variations in terms of coarseness, teeth pitch and length should also be taken into consideration when choosing the proper hacksaw for your task.

What is coarse pitch hacksaw blade?

COARSE PITCH TEETH. The coarse pitch blade has 14-18. teeth/25 mm. It is used to cut thick. and soft work pieces.

What is the best TPI for cutting nails?

Blades in the 3 – 11 TPI range are typically best for wood and demolition work. Pruning blades tend to be at the low end, and demolition/nail-eating blades tend to be around 8-11 TPI. General purpose wood cutting blades are in the middle, often around 6 TPI, and can also cut nails.

What is the finest hacksaw blade?

Starrett KBS1224-2 Bi-Metal Unique High Speed Steel Safe-Flex Hacksaw Frame Blade.
Hacksaw Replacement Blades High Speed 24 TPI.
LENOX Tools Hacksaw Blade.
HAUTMEC 12″ Hacksaw Blades Replacement Bi-Metal 32 TPI High Speed Steel Grounded Teeth HT0018-CT.
LENOX Tools Hacksaw Blade.

What is the best hacksaw blade for cutting PVC pipe?

18-24 TPI is the range of metal cutting, PVC cutting and finish cut blades. The blades cut faster then the higher TPI blades and create a smooth edge on the material, the edge is not as smooth as what a higher TPI blade would primarily cut. 24-32 TPI is the range of metal cutting, PVC cutting and finish cut blades.

What is an adjustable hacksaw?

The STANLEY® Adjustable Hacksaw provides efficient cutting power in a durable all metal frame. … Its adjustable frame accepts replacement 10 in. or 12 in. blades and features a tool free blade change mechanism. The ergonomic contoured grip allows for comfortable extended usage on the jobsite.

Which way does a saw blade spin?

Like miter saws, table saw blades rotate clockwise, meaning the teeth should be pointing down.

What pitch hacksaw blade should be selected to cut?

1.8 mm pitch blade For tool steel, high carbon, high-speed steel etc. For angle iron, brass tubing, copper, iron pipe etc. For conduit and another thin tubing, sheet metal work etc.

Can a hacksaw cut nails?

If you want to cut through the shank of a screw or nail to separate the two pieces of wood, metal or plastic that it’s holding, you best bet is a saw with a metal-cutting blade. … A hacksaw has a straight blade and a large frame that keeps the blade tight and makes sawing easier.

How many teeth do I need on my saw blade?

Combination: 10-inch blades with 50 teeth and 12-inch with 60 teeth. Ripping: 10-inch blades with 24-30 teeth and 12-inch blades with 40 or fewer teeth. Crosscutting: 10-inch blades with 60 teeth and 12-inch with 80 teeth.

How many teeth should a saw blade have?

Framing blades have 24 teeth and are effective for jobs like rough carpentry where speed is more important than getting a clean cut. Plywood blades have 100 or more fine teeth designed to create a finish with minimal splintering. Thin-kerf blades have a narrow profile for faster, easier cutting and less material waste.

How many teeth should my table saw blade have?

Joinery work: Use a 40-tooth to 50-tooth all-purpose combination blade. Cutting MDF and man-made materials: Use a 50-tooth to 80-tooth blade. 60-tooth and up blades often make better cuts in dense materials. Plastic laminate: Use an 80-tooth cross-cut blade.

How many teeth per inch are used on a hacksaw blade for cutting hardmetal?

It depends on what your cutting. For metal 24 TPI is a good for metal, wood (course cut) 8–10 TPI, PVC 18 TPI, the food thing has not teeth it’s twisted metal with some thing impeded. The blades also come in different blade widths.

What is the important lesson given by a saw blade has width?

The width of the “kerf” – the slot the blade cuts in the material – is another important consideration. Most obviously, the kerf width determines the amount of material that is expended in the cutting process.

When using a hacksaw observe the following procedures?

Crossfiling. Before attempting to use a file, place a handle on the tang of the file. …
Drawfiling. …
Rounding Corners. …
Removing Burred or Slivered Edges.
