How do you measure soil compaction

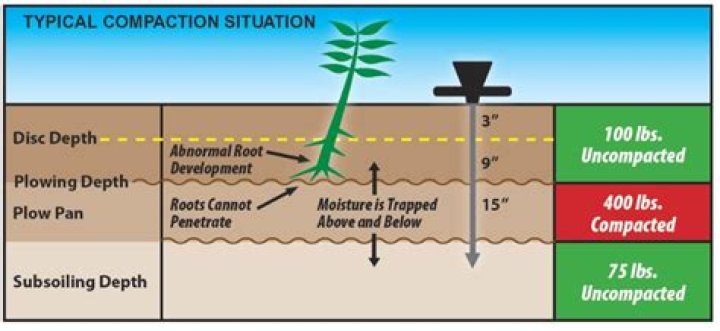

Soil compaction occurs below the surface, so it’s hard to spot. The best way to test is to probe the soil with a compaction tester to a depth of 36″ to 48″. The testing rod should move down through the soil with steady, even pressure, Hard, compacted soils resist penetration with the rod.

What does it mean to have 95% compaction?

95% compaction means that the soil on the construction site has been compacted to 95% of the maximum density achieved in the lab. … It means that when you conduct compaction test(in the laboratory) on a small soil sample of a particular site. You get some value of maximum dry unit weight at certain moisture content.

What is standard compaction test?

Standard Compaction Test Proctor compaction test measures the maximum unit load that a particular type of soil can be compacted to use a controlled compact force at an optimal water content.

How do you measure quality of compaction?

Quality control for compaction of earth fills is commonly performed by measuring the in situ density using the sand cone method. In situ density measurements from sand cone testing are highly operator-dependent; in addition, the test procedure is tedious and time-consuming.

How do you calculate compacted soil volume?

Your calculation of the area for a 20′ x 20′ wide with a depth of 6″ would give you a volume needed of 20 * 20 * . 5 = 200 cubic feet. From the first example, the compaction factor = 1.237 based on 15% swell and -7% shrink for this material. 7.4 cubic yards * 1.237 = 9.15 cubic yards.

How would you check that the desired compaction is achieved in the field?

Determination of adequate compaction is done by determining the in-situ density of the soil and comparing it to the maximum density determined by a laboratory test. The most commonly used laboratory test is called the Proctor compaction test and there are two different methods in obtaining the maximum density.

How do you calculate compaction in a field?

Compaction Percentage calculates by dividing the dry density by maximum dry density.

How does a compaction test work?

A soil compaction test begins with samples. … Once the soil is prepped the soil will go into a cylindrical mold to be compacted at various moisture contents and weighted. The test is to see how much of the material can be compacted into the same volume at the various amounts of moisture.

What is soil compaction in construction?

Soil compaction is defined as the method of mechanically increasing the density of soil. In construction, this is a significant part of the building process. If performed improperly, settlement of the soil could occur and result in unnecessary maintenance costs or structure failure.

What is soil compaction?

What is compaction? Soil compaction occurs when soil particles are pressed together, reducing pore space between them (Figure 1). Heavily compacted soils contain few large pores, less total pore volume and, consequently, a greater density. A compacted soil has a reduced rate of both water infiltration and drainage.

Article first time published on

What is compaction ratio?

Compaction ratio is waste industry term that refers to reduction of waste and loose space provided by a compactor. It is a proportion that describes the the volume of compacted waste that can be placed in the same storage space occupied by noncompacted waste.

How do you measure compaction for fill dirt?

Length in feet x Width in feet x Depth in feet (inches divided by 12). Take the total and divide by 27 (the amount of cubic feet in a yard). The final figure will be the estimated amount of cubic yards required.

How is compaction factor calculated?

By dividing the value of partially compacted concrete by the value of fully compacted concrete, the compaction factor is calculated and to the nearest second decimal place, it shall normally be stated.

How do you test the compaction of soil on field?

1. 1) The Sand Cone Method. One of the most common test to determine the field density of soil is the sand-cone method. …
2. 2) California Bearing Ratio. The California bearing ratio (CBR) is used as a determine the quality of strength of a soil under a pavement. …
3. 3) Soil Permeability.

How do you test for compaction of sand?

How to check if the compaction of sand is 95% – Quora. Relative density Test can be performed in laboratory and minimum and maximum density can be obtained. Generally sand is compacted to achieve 70–80% relative density. After compaction, field density can be found by performing sand replacement test on field.

How do you calculate field density of soil?

1. Volume of cylinder is calculated ; V = ((pi x d x d ) / 4 ) x h ; where d is internal dia of mould; h is height of the mould.
2. Moisture content m of the soil is calculated as stated above.
3. Bulk density of soil is calculated as : weight of wet soil / volume of cylinder.

How much does compaction testing cost?

Soil Compaction Test Cost Soil compaction tests cost $75 to $150 each plus $200 to $500 for an onsite technician if it’s required by local regulations. This investigates the density after compaction. You’ll find it used most often under foundations and for roads.

Is code a compaction test?

This part which was first published in 1965 and revised in I974 covers the method of test based on heavy compaction. The method of test based on light compaction is covered in IS : 2720 ( Part 7 )-1’~80*.

What are the methods of compaction?

The method of compaction is primarily of four types such as kneading, static, dynamic or impact and vibratory compaction. Different type of action is effective in different type of soils such as for cohesive soils; sheepsfoot rollers or pneumatic rollers provide the kneading action.

How do you measure soil density by hand?

The hand test is the oldest means of measuring soil compaction and requires no special equipment. Simply grab a handful of soil you want to test and squeeze it into a ball. If the soil crumbles apart into many pieces and will not reform when you squeeze it again, then the soil is uncompacted and dry.

How do you calculate the number of compaction passes?

Begin with a lift of 15cm and add 7.5 cm until you find the optimum lift thickness and number of passes for the given condition. One can use strip test to determine the number of passes and equipment types to achieve the required degree of compaction for the given soil type and condition.

How do you conduct a compaction test?

1. Obtain about 3 kg of soil.
2. Pass the soil through the No. …
3. Weight the soil mass and the mold without the collar (Wm).
4. Place the soil in the mixer and gradually add water to reach the desired moisture content (w).
5. Apply lubricant to the collar.

How do you perform a field density test?

1. First, take the weight of the empty sand cone and then fill it with dry sand and then weigh again.
2. Collect the excavated soil from the hole and measure the weight.
3. After weighting, collect the specimen of soil to determine the water content in it.

What is soil compaction ratio?

Divide the weight of the dry soil by the volume of sand required to fill the hole to find the soil density in pounds per cubic foot. For example, if the weight of the soil is now 1 lb. and the volume of the sand in the hole is . 5 cubic feet, the density would be 1 lb/. … per cubic foot.

What is the compaction factor of soil?

MaterialTypical Bulking FactorsTypical Compaction FactorsClay1.30.8Soil1.250.9Sand & Gravel1.120.88Rock (blasted)1.51.3

How do you calculate compacted cubic yards?

Multiply the three dimensions together to find the number of cubic feet (0.5 feet x 12 feet x 12 = 72 cubic feet) Divide the cubic feet by the number of cubic feet in a cubic yard (27) to find the number of cubic yards (72 ÷ 27 = 2.67 cubic yards).

How do you calculate soil volume?

To estimate soil volume for any area, all you need is a tape measure. “The basic formula is simple: Length x Width x Height = Volume,” says Michael Dean, co-founder of Pool Research. Then divide the number of cubic feet by 27. So one cubic yard = 27 cubic feet = 1,728 cubic inches.

How do you calculate compacted gravel?

Multiply the length (L), in feet, by the width (W), in feet, by the height (H), in feet, and divide by 27. This will tell you how many cubic yards of crushed stone you need. When using this equation, make sure all of your measurements are in feet.

How much does 1 cubic yard of dirt weigh?

Soil: Weighs about 2,200 pounds per cubic yard, depending on the moisture content. Sand, Gravel, Stone: Can tip the scales at upwards of 3,000 pounds per cubic yard.

Why soil compaction test is done?

Compaction test of soil is carried out using Proctor’s test to understand compaction characteristics of different soils with change in moisture content. Compaction of soil is the optimal moisture content at which a given soil type becomes most dense and achieve its maximum dry density by removal of air voids.
