How do you overhang a granite countertop

A general rule with granite countertop overhang is to avoid cantilevering more than one-third the total width of the countertop. So, if your countertop is 3-feet wide, your base would need to be at least 2-feet wide to support a 1-foot overhang without an additional support system.

How far can a granite countertop overhang?

According to the Marble Institute of America, you can safely overhang granite that is 1 ¼ inches thick up to 10 inches without support. However, the cantilevered portion cannot be more than one-third the total width of the countertop.

How do you support a granite overhang?

Fasten your countertop supports to weak supporting structure and expect them to hold up your counter. Use wimpy fasteners to attach your support brackets. Leave raw steel brackets unpainted as they will rust over time. Use inadequate aluminum or thin gauge shelf brackets to support your countertops.

How much overhang can a granite countertop have without support?

The length of granite overhang available without support depends on a few factors: Granite thickness – granite tops with a thickness of 3 cm can have an 8-10 inch overhang without additional supports. If your granite top has a 2 cm thickness, we recommend attaching a support system should the overhang exceed 6 inches.

How do you support a granite countertop overhang on an island?

Use granite countertop support brackets to support countertops with overhanging stone. Considering that granite, marble, and limestone can have overhangs weighing hundreds of pounds, and considering how brittle granite countertops can be, granite support brackets are imperative.

How much should a countertop end overhang?

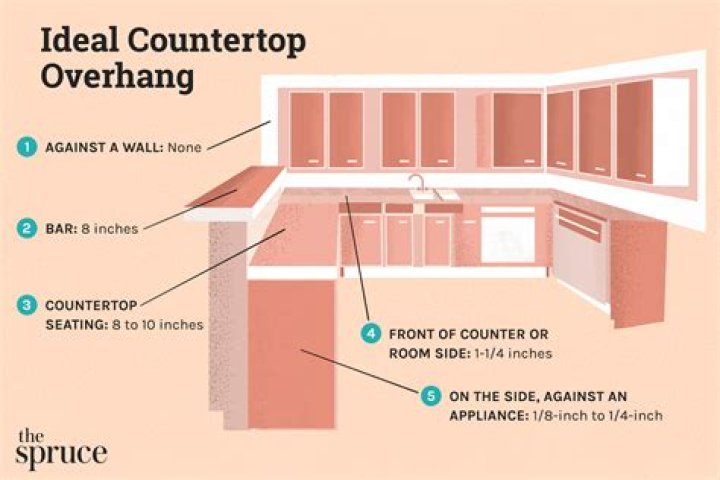

Generally, the standard overhang of a countertop is 1 to 1 ½ inches from the cabinet, while the exposed ends of a countertop will usually have a ½ inch overhang, and the ends that meet a wall don’t have any overhang at all to keep the fit flush to the wall.

Is 12 inch overhang enough?

According to Atlantic Shopping, if you want to be able to eat at your kitchen island, you’ll need at least 12 inches of overhang to make adequate knee space. It’s also important to remember than an overhang of over 12 inches requires support to make it sturdy enough to lean on and eat off of.

Do I need plywood under granite countertop?

When installing granite countertops, you will not need an underlayment of plywood if the granite has a thickness of 3 centimeters (about 1 1/4 inches). … However, 2 centimeter granite needs support under it since it is less sturdy, so having a plywood underlayment is a must.

Can I sit on my granite countertop?

Granite is fairly thick, often at the very least ¾ of an inch. … While granite is tough and can handle a lot of weight, granite technicians highly discourage sitting or standing on them. If you have to stand or sit on the countertops, place sturdy plywood on the counters where you will now stand or sit on.

What is the minimum overhang on a kitchen island?

The height of an island usually matches the height of a countertop at 36 inches. If your island has seating, the counter should overhang at least 15 inches. An island with a taller height for bar stool seating should be 42 inches high and the overhang should be at least 12 inches.

Article first time published on

How do you support a counter overhang?

You should use a countertop bracket that extends within four inches of the countertop edge. This prevents too much pressure and weight on the countertop without proper backing. Fasten these brackets with fasteners to keep them securely in place.

How much overhang should a kitchen island have without support?

Different countertop materials have different requirements. Solid Surface countertops can overhang 6 inches without additional support (e.g. plywood decking). 3 cm Quartz (engineered stone) can handle a 14 inch overhangs and 3 cm Granite overhangs should not exceed a 10 inch overhang without additional support.

Is a 10 inch island overhang enough?

The overhang of a kitchen island or purpose built bar is the amount of countertop that extends beyond the body of the actual bar. … A typical overhang for a comfortable seating area should be around 25-30cm (10-12”), this should leave enough knee room and adequate space between the countertop edge and the person seated.

Are corbels necessary?

Do you need them for support, want them for a specific aesthetic, or both? While corbels are functional in that they support your countertop they can also be used as a design element. You may simply want corbels to adorn your home, but keep in mind that their main purpose is utility.

How much should a countertop overhang on an island?

The standard overhang of an island countertop — on the side designed to sit at and tuck stools underneath — is 12 inches. If you plan to extend the counter farther, you need to add supports such as legs, or wood corbels or metal L-brackets that extend half the overhang’s distance.

What is the minimum overhang for a breakfast bar?

The overhang of your breakfast bar should be between 8 inches and 15 inches. This measurement depends on the amount of space you have available to dedicate to your breakfast bar, the height of the people using it, and the type of material you are using for the counter.

How far can a quartz countertop overhang without support?

Quartz is one of the best materials for those looking to create a countertop overhang. The strength and durability ensure it can support up to a 14-inch overhang without extra support.

How much should a bar overhang?

The bar top overhang should be a minimum of 8-1/2” and could be as much as 10” so your knees do not hit the bar front. For our extra tall customers the 10” overhang maybe necessary.

Can you use Clorox wipes on granite?

You should avoid using acid-based cleaners — lemon, orange, vinegar or bleach-based — on granite. … That means those Clorox disinfecting wipes (which contain citric acid) that make cleanup so easy are actually quite bad for your granite’s seal.

Can I put hot pans on granite countertops?

Homeowners don’t need to worry about damaging their countertops with everyday use because granite is quite heat resistant. Placing a hot pan on a well-maintained granite slab will not cause it to crack or weaken. Just remember that repeatedly placing a very hot pan on the same spot may cause granite to discolor.

Can you use Windex on granite?

Since granite countertops have a sealant on them to keep them shiny and stain-resistant, you want to avoid using anything too acidic or basic on the granite. Frequent use of vinegar, Windex or bleach will dull the granite and weaken the sealant. Instead, a little soap and water should do the trick.

Do you have to glue down granite countertops?

Granite is frequently used as a countertop material in kitchens and bathrooms. This heavy stone is cut to fit the shape of the cabinets it is installed on and requires an adhesive to help hold it in place because granite cannot be screwed down.

Is 2cm or 3cm granite better?

The material itself: granite, marble, or other stone – is inheritably stronger when thicker. So yes, a 3cm slab of granite is stronger than a 2cm slab.

How do you secure granite to wood?

To attach granite to wood, apply a solid/squiggly bead of silicone, glue, or construction adhesive on the wooden table. Then, center the granite top to the wooden table. Clamp the top, or add weight to ensure a tight bond.

How do you attach legs to granite countertops?

1. Spread the old blanket or rug out on a flat surface larger enough for your piece of granite to fit on. Place the granite on the blanket, good side down.
2. Determine the exact location for the table legs. …
3. Screw the table legs into the adapters that are glued onto the granite.

How do I support a granite countertop?

To be on the safe side, support the stone wire mesh or plywood as well as with corbels or brackets placed at equidistant intervals along the width of the bar top. Put them closer together if you have 2-cm granite slabs for your bar top. Your overhang should not exceed 24 inches.

How far apart should granite supports be?

How many granite brackets will you need? Countertop brackets are generally spaced 18 – 24 inches apart. Start with a bracket at each end of the countertop set 4 – 6 inches away from the end.

How deep should a peninsula overhang be?

The standard recommendation is 15″ I think, not to say that you couldn’t do less, it’s just not as standard.
