How do you read electrode classification

Electrodes are manufactured for different purposes and welding types and are classified by a five-digit number like E7011-M. Each number and letter corresponds with a piece of information, including recommended welding position, tensile strength and penetration depth. The “E” in the classification stands for electrode.

How do you read electrode codes?

The prefix “E” designates an arc welding electrode. The first two digits of a 4-digit number and the first three digits of 5-digit number indicate minimum tensile strength. For example, E6010 is a 60,000 psi tensile strength electrode while E10018 designates a 100,000 psi tensile strength electrode.

What does the 8 in 7018 mean?

8 – the ‘8’ indicates that the rod has low hydrogen potassium with iron powder coating and that it can be used with all polarities (DC+, DC-, or AC). The final number, ‘8’ in the case of our E7018 rod, requires more explanation.

How do you read welding wire classification?

1 = with flux-cored arc welding wires, the digit after the as-welded tensile strength designation is used to define the welding position capability of the wire; a “0” indicates flat or horizontal only, whereas a “1” indicates all positions including vertical and overhead.

What does 6013 mean?

DESCRIPTION: 6013 is a high titanic coated electrode. This electrode was primarily designed to provide good wetting and shallow penetration for thin sheet metal applications (using smaller diameter electrodes), but with sufficient penetration for welding medium gauge steel.

Which electrode is used in welding?

The carbon electrode is a non-filler metal electrode used in arc welding or cutting, consisting of a carbon graphite rod that may or may not be coated with copper or other coatings. The tungsten electrode is defined as a non-filler metal electrode used in arc welding or cutting, made principally of tungsten.

What does the 60 in 6010 mean?

The “60” in 6010 means 60,000 pounds’ tensile strength (the ability to resist being pulled apart) per square inch. The “1” means it can be run in any position—flat, horizontal, vertical, or overhead.

What electrode is used for MIG welding?

The metal inert gas (MIG) process uses a consumable electrode, which is usually in the form of a copper-coated coiled wire. Argon is used to shield the weld, and direct current with the electrode being positive to generate more heat for melting.

Which electrode is used for TIG welding?

Tungsten Inert Gas (TIG) welding is a popular type of welding that utilizes tungsten electrodes to join various metals. The tungsten electrode is a critical component in the process, as it channels the current required to establish the arc. The tungsten electrodes can be alloyed with a variety of metals.

What GMAW electrode wire is most commonly used?

There are many other choices (some are better) for gas but the C2 is the most common used. Here is the electrode designation: ER– An electrode or filler rod that is used in either a MIG wire feed or TIG welding. 309 – The grade of the Stainless Steel Electrode.

Article first time published on

What is the difference between 6011 and 6013 welding rod?

The 6013 electrode is best used for light to medium penetration on a thin metal, or sheet metal. The 6011 electrode offers more penetration than the 6013 so you can weld a slightly thicker material.

What does the 1 and 8 represent for the electrode E7018?

The 7018 Welding Rod The “E” in E7018 electrode indicates a tool used for an arc-welding process. The 70 means it makes welds that are very strong (70,000 psi). The 18 means two things: The “1” means the electrode can be used in any position, and the “18” means low hydrogen and usually DC current.

What is the difference between 6013 and 7018?

The Last Two Numbers Higher numbers mean the rod has more coating. A 7018 rod will have more coating, while a 6013 rod will have less coating.

What is DCEN DCEP?

This results in either Direct Current Electrode Positive (DCEP) or Direct Current Electrode Negative (DCEN). DCEP was also historically known as Direct Current Reverse Polarity (DCRP) or simply “Reverse”, whereas DCEN was also known as Direct Current Straight Polarity (DCSP) or simply “Straight”.

What is 6011 rod used for?

E 6011 electrode is a general-purpose electrode performs welding in all positions and efficiently in vertical-up and over-head positions; it is used mainly for sheet metal welding and low silicon deposit application. The electrode arc is easy to control and produces a flat weld bead with light slag formation.

What does the 13 in E6013 stand for?

E6013 = High titania potassium flux. AC, DCEP, or DCEN for flat, vertical, overhead, and horizontal positions. E7018 = low-hydrogen potassium, iron powder flux.

What is the meaning of E6010?

Welding Current The “E” indicates an arc welding electrode. The first two digits of a 4-digit number and the first three digits of a 5-digit number stand for tensile strength. For example, E6010 means 60,000 pounds per square inch (PSI) tensile strength and E10018 means 100,000 psi tensile strength.

Why is 6010 so hard?

Modern stick welders won’t run E6010 electrodes because they do not have the right components to stabilize the aggressive arc these electrodes create. All welders must have big inductors, output enough welding voltage, and inverter welders must include suitable software to handle the whole procedure.

What is a 5P electrode?

A 5P welding rod is also known as an E6010 rod. It consists of an all-purpose filler metal designed for use with direct current (DC) and suitable for welding pipes.

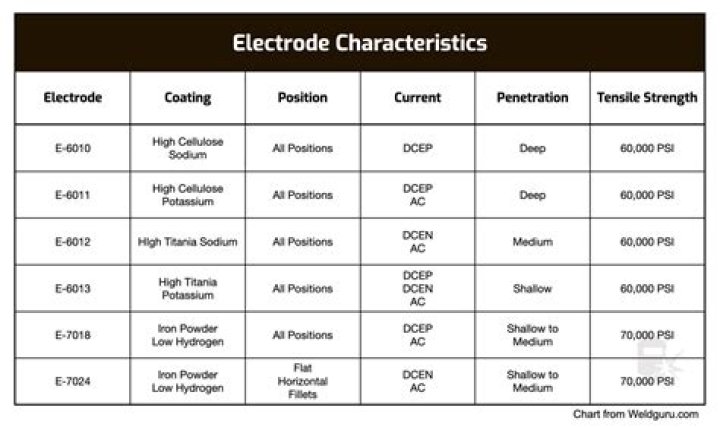

What are the different classification of electrodes?

ClassElectrode CoatingCurrent TypeExxx4Rutile, Iron, Powder, MediumExxx5Low Hydrogen, Sodium, MediumDCEPExxx6Low Hydrogen, Potassium, MediumAC, DCENExxx7Iron Powder, Iron, OxideAC, DCEP

What are 4 types of welding electrodes?

Common electrodes used in Stick welding are 6010, 6011, 6013, 7018 and 7024 with the most common diameters ranging from 1/8- to 5/32-in. Each of these electrodes offers all-position welding capabilities (except 7024).

How do electrodes work in welding?

In electrode welding, contact between the rod electrode and workpiece ignites the arc. This creates a short circuit for a fraction of a second between the two poles, meaning that current can then flow. The arc burns between the workpiece and the electrode. This creates the required fusion heat.

What is the difference in tungsten electrodes?

Ceriated tungsten electrodes (AWS classification EWCe-2) contain a minimum of 97.30 percent tungsten and 1.80 to 2.20 percent cerium and are referred to as 2 percent ceriated. … Ceriated tungsten has slightly different electrical characteristics than thorium, but most welders can’t tell the difference.

What are the 5 types of electrodes?

Gas Electrodes: …
Examples of gas Electrodes:
Standard Hydrogen Electrode (SHE): …
Chlorine gas electrode: …
Oxygen gas electrode: …
Metal-Sparingly Soluble Metal Salt Electrode: …
Metal – Metal Ion Electrodes: …
Examples of metal – metal ions electrodes:

Why electrode is coated with flux?

The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.

How do you calculate welding rods?

1) Calculate the weld area (cross section of the weld) including root and cap reinforcement in square millimetres. 2) Multiply weld area by pipe circumference (weld length) to give a weld volume in cubic millimetres. 3) Divide this answer by 1,000,000,000 to give weld volume in cubic metres.

What does the 70 in the electrode classification indicate?

For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi. The third digit represents the welding position(s) for which the electrode can be used.

What are the three types of welding wire?

Solid gas metal arc welding (GMAW) wire.
Composite GMAW (metal-cored) wire.
Gas-shielded flux-cored arc welding (FCAW) wire.

What welding rod is stronger 6011 or 6013?

The 6013 has a more mild penetration with a larger pool that doesn’t cut through rust like the 6010 or 6011. This electrode is a favorite for structural welders based on its smooth arc. Its mild penetration and bigger pool leave larger, stronger, less defined beads.

Can you weld stainless with 6013?

You can use 6013, depending on your welders capacity. It’s much like 6011 which i’ve used on SS before.

What does the 8 mean in E7018 1 H4R?

H8 = Less than 8 ml/100 g. Meets requirements of absorbed moisture test. E7018-1 H4R. Mild Steel Covered Electrodes, SMAW Process.
