How do you reduce the anode heel effect

anode angle: by increasing the angle, the amount of target material perpendicular to the anode is decreased resulting in less resorption of x-rays produced. target-to-film distance: increase in distance reduces heel effect by allowing more divergence of the beam which produces a more uniform image.

How can we reduce anode heel effect?

anode angle: by increasing the angle, the amount of target material perpendicular to the anode is decreased resulting in less resorption of x-rays produced. target-to-film distance: increase in distance reduces heel effect by allowing more divergence of the beam which produces a more uniform image.

What is anode heel effect in radiography?

The anode heel effect in radiography is a well-described physical phenomenon,1,2 whereby radiation intensity varies along the anode–cathode axis of the X-ray tube, decreasing towards the anode. Photons emitted towards the tube’s anode side are attenuated more than those emitted towards the cathode.

What factors affect the heel effect?

• Source to Image Distance (SID) The distance from the anode (source of X-rays) to the image receptor greatly influences the apparent magnitude of the anode heel effect. …
• Beam and receptor size. Diagnostic X-ray beams can be collimated to large or small beams. …
• Anode angle.

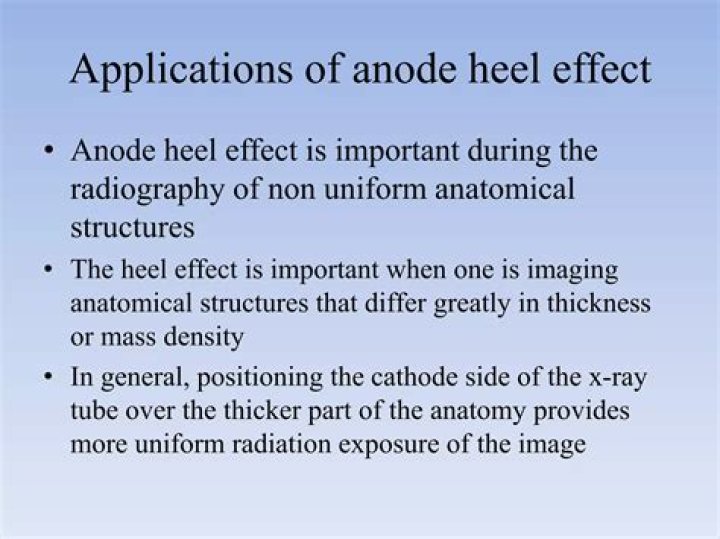

How is heel effect used in mammography?

In the digitized mammography, the percentages of the optical density of all the pixels of the analyzed image are also calculated. The Heel effect causes a Gaussian distribution around the anode–cathode axis and a logarithmic distribution parallel to this axis.

Which of the following exposure modifications will increase the anode heel effect?

Which of the following exposure modifications will increase the anode heel effect? Decreases the SID increases the anode heel effect. Decreasing the SID requires the operator to use more of the extreme edges of the x-ray field where there is a very large difference in intensity.

What increases as collimation increases?

As collimation increases, the quantity of scatter radiation decreases, and radiographic contrast increases; as collimation decreases, the quantity of scatter radiation increases, and radiographic contrast decreases.

What is air gap technique?

Air gap technique is a well-known method to reduce the amount of scattered x-ray radiation reaching the detector, thus reducing noise and improving image contrast. 1. It is rather commonly utilized instead of a conventional grid in plain radiography.

Is anode positive or negative?

CathodeAnodeA cathode is an electrode where the electricity flows out of or given out.An anode is an electrode where the electricity moves into.A cathode is a negative sided electrode.An anode is a positive sided electrode.

What is the developing time of film in automatic film processor?

Usual developing time is 5 minutes at 29 oC, when done manually. In automatic film processors, these factors are taken care of by the processor and thus the image quality is more consistent. Developing is followed by rinsing in water (for about 30 seconds) to remove the chemicals etc. before the film is fixed.

Article first time published on

Why does beam hardening occur?

Beam hardening is the phenomenon that occurs when an x-ray beam comprised of polychromatic energies passes through an object, resulting in selective attenuation of lower energy photons.

What is off focus radiation?

During x-ray generation, off-focus radiation refers to the emission of x-ray photons which originate outside of the anode focal spot. Essentially a form of scatter, photons produced in this manner may result in blurring and are of no use for diagnostic purposes.

What is the advantage of a rotating anode over a stationary anode?

Rotating anode systems can shoot longer and at a higher dose. If you intend to perform longer scans like run-offs or cross laterals, or scans requiring higher dose for larger patients, you’ll be sending a lot more electricity into your cathode and a lot more heat to your anode.

How does AEC work in radiography?

Automatic exposure control (AEC) is a device incorporated into radiographic and mammographic imaging systems. Its function is to automatically terminate exposure when a preset amount of radiation has been detected.

Which material is used for filtration in diagnostic radiography?

Filters for medical radiography are usually made of aluminum (Al). The amount of both the inherent and the added filtration are stated in mm of Al or mm of Al equivalent. The amount of filtration of the x-ray beam is specified by and based on the voltage potential (keV) used to produce the beam.

How can you compensate for the heel effect?

To compensate for the heel effect, we developed a heel effect compensation (HEC) filter. The HEC filter rendered the dose distribution uniform and reduced the dose by an average of 25% for free air and by 20% for CTDI phantoms compared to doses with the conventional filter.

What is anode angle?

The anode angle refers to the angle the target surface of the anode sits at in relation to the vertical. Most x-ray tubes have an anode angle of 12-15 degrees but greater or lesser angles can also be used depending on the application.

What is the relationship of line focus principle and heel effect?

Limitation of the principle Firstly, for a given apparent focal spot size, the real area covered by the electron beam is larger for smaller target angles which, as stated above allows a greater area over which to dissipate the heat. … A decrease in angle below six degrees will result in anode heel effect.

What is the best way to reduce the production of scatter radiation?

To reduce the scattered radiation, possible methods are smaller fields-of-view (FOV), larger air gap between object and detector, and the use of an anti-scatter grid.

Does collimation affect spatial resolution?

The use of collimation in fluoroscopy does not significantly affect the overall image quality in terms of spatial resolution or scatter when the II input field of view is unchanged.

What happens to the total number of photons when collimation is increased?

Increasing collimation decreases the number of photons that strike the patient and decreases the amount of scatter radiation produced.

What is the anode heel?

Anode heel effect refers to the lower field intensity towards the anode in comparison to the cathode due to lower x-ray emissions from the target material at angles perpendicular to the electron beam.

What does kV stand for in radiology?

In screen film radiography, the choice of x-ray tube voltage (kV) affected the image contrast; this is no longer the case for any digital radiographic system.

What are the signs of cathode and anode?

During discharge the positive is a cathode, the negative is an anode. During charge the positive is an anode, the negative is a cathode.

What is another name for anode?

conductorcathodeelectrodeproberod

What reaction occurs at the anode?

The reaction at the anode is oxidation and that at the cathode is reduction. The electrons are supplied by the species getting oxidized. They move from anode to the cathode in the external circuit.

What is high kV technique?

high-kV tech·nique chest radiography using a kilovoltage of at least 125 kVp, usually 140-150 kVp, to reduce patient dose and increase latitude.

What is the Bucky factor?

The Bucky factor is the ratio of radiation on the anti-scatter grid to the transmitted radiation. Hence, the Bucky factor reflects the increased radiation dose required from anti-scatter grid use, as any increase in mAs proportionally increases dose. The Bucky factor changes with: change in kVp.

What is contrast scale?

One such term is long scale contrast. This is a description of an image which demonstrates many different and subtle shades of grey to black. When the density differences are very subtle, it is said to have low contrast or long scale contrast.

Can you fix film for too long?

Any fixer will bleach highlight details if left too long, regardless of pH. But as I said films quite resilient and with warm-tone papers the bleaching can take as little as 5 minutes in fresh fixer to become just noticeable.

What are the 5 steps of film processing?

Film processing, whether it is manual or automatic, comprises five basic steps: (1) developing, (2) rinsing or stop bath, (3) fixing, (4) washing, and (5) drying. The first step in learning how to process a film is a basic understanding of the processing solutions.
