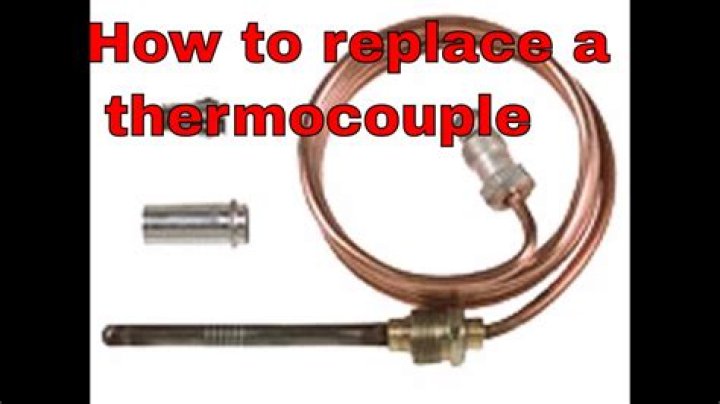

How do you replace a thermocouple on a GE water heater
By Andrew Hansen
The No. 1 cause of pilot lights that won’t stay lit is a worn-out thermocouple. It’s easy to replace and a new one costs $5 to $10. Rather than trying to unfasten the thermocouple inside the water heater’s burning chamber, it’s easier to remove the whole burner and thermocouple assembly.
Can I replace a thermocouple myself?
The No. 1 cause of pilot lights that won’t stay lit is a worn-out thermocouple. It’s easy to replace and a new one costs $5 to $10. Rather than trying to unfasten the thermocouple inside the water heater’s burning chamber, it’s easier to remove the whole burner and thermocouple assembly.
What are the symptoms of a bad thermocouple?
If you can’t get the flame to light at all, and you’re sure the gas is on, there’s probably an obstruction in the pilot tube. If the flame lights and goes out when you release the gas control knob after holding it in for the recommended 20 to 30 seconds, that’s the sign of a thermocouple malfunction.
How do I know if my thermocouple is bad on my water heater?
A worn out thermocouple is one of the most common gas water heater problems. When thermocouples wear out, the pilot light goes out, the burner won’t light, and you will have no hot water.How much does it cost to replace a thermocouple on a water heater?
The cost to replace the thermocouple on a water heater is $100 to $325. The thermocouple detects whether the pilot light is lit and signals the gas control valve to turn on the gas flow. Thermocouple replacement is the most common repair needed for gas tank water heaters.
What tools do I need to change a thermocouple?
Use an adjustable wrench as needed to remove thermocouple from the gas valve. Detach the thermocouple from the pilot assembly. Some thermocouples can be pulled free, while others require screws to be detached with a screwdriver first.
What causes a thermocouple to go bad?
Changes in temperature can cause regular expansion and contraction in metal, which will cause thermocouples to weaken over time. After enough time, metal fatigue can cause a thermocouple to break. … If thermocouples start to give out unusual readings, it may be suffering from metal fatigue.
How do you clean a thermocouple on a water heater?
Clean the thermocouple – using the emery cloth sandpaper, sand the ends of the thermocouple and then give it a finishing touch with the lint-free cloth. Hopefully, you can get to the ends of the thermocouple without having to detach it from the assembly, but you may have to do that.How do I know which thermocouple to buy?
You want to get one that is about the same length as the one you have. They are sold in in 6″ increments for the shorter lengths, 18″, 24″, 30″ and so on. For a water heater, 18″ and 24″ are common, although longer ones are possible. Remove the old thermocouple and measure it to see what length you need.
How do you troubleshoot a thermocouple?Place one test lead on the side of the thermocouple and the other to the end that screws into the gas valve. If the thermocouple has proper continuity, a small resistance reading should be visible on the multimeter. Many multimeters also indicate continuity with an audio alert.
Article first time published onDo Thermopiles go bad?
Like the other component parts in your furnace, the thermocouple can wear down over time, producing lower voltage than it should when heated. And the worst part is that you can have a bad thermocouple without even knowing. Therefore, inspecting and testing your thermocouple should be part of your furnace maintenance.
What happens if thermocouple is too long?
Thermocouple cannot have kinks, but copper can be rolled if thermocouple is too long. … The electromagnet holds open the safety valve as long as the pilot flame is heating the thermocouple. If the pilot light is out, the electromagnet closesa valve, and no gas can enter gas contrtol.
How much does it cost to replace thermocouple?
It costs $150 to $250 to replace a thermocouple. It checks to make sure the pilot light is on. It will shut the gas off if it’s not.
Does cleaning a thermocouple help?
Yes, you can clean a thermocouple, but the task must be done with a light touch. Remove the thermocouple from the process assembly, using a steel wool or emery cloth, lightly clean the tip removing any build up. Cleaning a thermocouple is not a fix for an issue, such as inaccurate readings.
Can I bypass a thermocouple?
Can You Bypass Thermocouples on Patio Heaters? Constant heat supply ensures that your patio heater pilot light is lit at all times. If your unit is receiving no heat, this won’t be so. To temporarily sort the situation, you can bypass thermocouples until you have funds to replace them.
Can a water heater thermocouple be cleaned?
You can use Emery cloth sandpaper to gently clean any debris or build-up from the end of the thermocouple. If present, you should also clean off any corrosion where the power wire connects to the thermocouple terminal. Be aware, you may need to detach the thermocouple from the burner assembly to clean it thoroughly.
What does it mean when your pilot light keeps going out?
A faulty, misaligned, dirty, or damaged thermocouple is often the culprit behind your pilot light going out. The thermocouple is an automatic safety shutoff device that prevents the gas valve from opening if the pilot light is out.
Will a pilot light stay lit with a bad thermocouple?
A thermocouple senses the heat of the pilot and allows gas to flow to the burner. A bad thermocouple will shut off gas to both the pilot and the burner so the pilot light won’t stay lit.
Is a flame sensor and thermocouple the same thing?
People tend to use the terms “flame sensor” and “thermocouple” interchangeably. In truth, while they basically perform the same job, they’re not the same thing. If your furnace uses an electronic controller, it’s got a flame sensor. Thermocouples are used on standing pilot furnaces that have pilot lights.
Are thermocouples universal?
Honeywell, White Rodgers, and other manufacturers make universal replacement thermocouples, usually with a 30-millivolts (mV) rating for standing-pilot furnaces. … Electronic flame sensors are much less universal, and you must find the exact part specified for your furnace model.
What causes water heater pilot to go out?
Some of the most common reasons that water heater pilot lights go out include: A faulty thermocouple. … Over time, thermocouples can begin to malfunction and shut off the gas supply to the pilot light even if it’s burning properly. A bent or dirty thermocouple.
Are thermocouples interchangeable?
Commercial thermocouples are interchangeable, economical, and supplied with standard connectors. Unlike most other temperature measurement devices, external form of excitation is not required for thermocouples because they are self-powered.
Do newer water heaters have a thermocouple?
Not all gas water heaters have a thermocouple. Some newer models have an advanced temperature control system. Essentially, it is a microprocessor that constantly monitors and controls burner operation and maintains consistent and accurate water temperature levels. The flashing LED indicates that the pilot is on.
Where is the thermocouple located in a hot water heater?
The thermocouple is part of the water heater’s burner assembly and is positioned next to the pilot light. It slides into a bracket and is held in place by a couple of clips. The thermocouple line runs outside the heater and is connected to the gas control valve, which is located on the outside of the tank.
What's a thermocouple look like?
The thermocouple looks like a piece of metal tubing smaller than a soda straw. To find it, first locate the gas control box. This is the box that the main gas line enters, where you turn the gas on in the furnace. (On most furnaces, it also houses the button that you hold open or push to relight the pilot.)
How long do thermocouples last?
In effect, new thermocouples were installed into contaminated tubes, causing the degradation of the sensors and generating greater than a 100°F shift in accuracy. In this scenario, thermocouple life, which should have been close to one year, was shortened to within a week.
What do thermocouples do?
A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.
Should the pilot light always be on in a gas heater?
Most furnaces with electronic ignition have a device called a hot surface igniter. … The difference is that the flame is only lit (by an electronic spark) when your furnace is ready for a heating cycle. When the pilot light is not needed, it is completely off, saving you money on gas.
Why does my gas heater keep cutting out?
If your furnace keeps shutting off, it could be due to low airflow. There are several indirect issues that cause low airflow. Dirty Air Filters. If you don’t change your air filters often enough, the filters will become dirty and clogged, which means the heat exchanger retains heat and eventually causes it to overheat.
