How do you rewire a utility trailer

If your trailer is more than five years old, then you can bet your top dollar that you need to replace the wire harness. This is a four to five-hour project, but it doesn’t take much skill to complete. It certainly isn’t as complicated as rewiring used outdoor boat motors.

How long does it take to rewire a trailer?

If your trailer is more than five years old, then you can bet your top dollar that you need to replace the wire harness. This is a four to five-hour project, but it doesn’t take much skill to complete. It certainly isn’t as complicated as rewiring used outdoor boat motors.

Does trailer have to be on ball for lights to work?

My question is does the trailer need to be grounded to my truck for lights to work? … In some cases trailer lighting will ground through the hitch ball but that’s typically only if the actual ground circuit is insufficient. This is not an ideal setup. It needs to ground through the wiring of the trailer harness.

What color wires go together on a trailer?

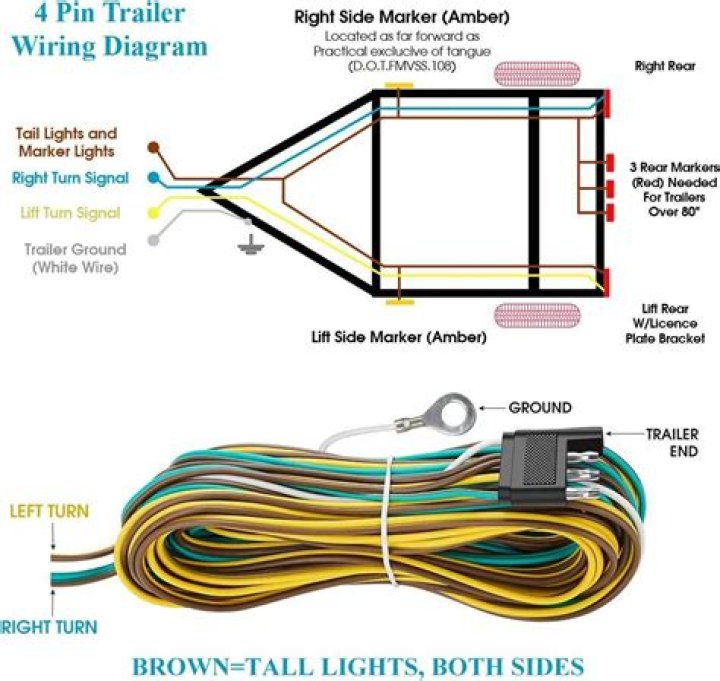

Trailer Wiring Has 5-Wires White, Yellow, Green, Yellow/Brown, and Green/Brown On a 4-Way flat trailer wiring harness, white is the ground, brown is running lights, yellow is left turn signal and green is right turn signal.

How do you connect trailer wires?

Connect the wires from the lights to the new wiring. Before connecting each wire slide an appropriately sized piece of heat shrink over each wire. Connect each colour wire on a light to the corresponding wire of the same colour on the trailer wiring. Slide the heat shrink over the join and apply heat to seal.

What are the 4 wires on a trailer plug?

The four colors that make up your 4 wire trailer cable’s color code are brown, green, yellow, and white. Each color in a 4 wire trailer wire has a specific function. Usually, if you screw up a trailer’s wiring, you will end up with a blown fuse.

What is the blue wire for on a 7 pin trailer plug?

It is an auxiliary wire typically used to connect the reverse lights from the tow vehicle to the reverse lockout solenoid located directly behind a surge brake actuator. When properly connected it allows you to disengage the trailer brakes in order to back the trailer up (without getting out of the vehicle).

Are all 7 pin trailer connectors wired the same?

Helpful Expert Reply: Yes, there is only one type of 7-way blade connector.

Do trailer lights need to be grounded?

Each lamp needs to be grounded either through its mounting studs being in direct contact with the trailer frame or by having a jumper wire ran from the lamp to the trailer frame. Ground the trailer connector at the front of the trailer, which will use the trailer frame as a ground wire.

Do I need trailer lights during the day?

Trailers weighing a minimum of 2,500 pounds must have turn signals and two red or amber rear stop lights that are visible from at least 100 feet during the day and night. Vehicles with a gross weight of under 3,000 pounds must have a single stop light if the trailer’s load obscures the stop light on the towing vehicle.

Article first time published on

How do you keep trailer plugs from corroding?

Your best bet to eliminate corrosion in your 7-way connector is to use some Dielectric Grease for Electrical Connectors, item # 11755.

What gauge wire is trailer wiring?

Recommended Gauge of Wiring for Trailer Lights Trailer wiring generally uses 16 gauge wire, part #16-1-1. However, with a long trailer like yours you may want to go with a larger like 14 gauge #DW07550-1 or even 12 gauge #12-1-1. Each size is sold by the foot.

What color is the ground wire?

According to Mark Dawson, chief operating officer of Mister Sparky, “green insulated wires are used for grounding.” Green is the most common ground wire color, but “green-yellow” (green wire with a yellow stripe) and “bare” wire (copper wire without colored insulation) can also be used.

What color are the wires?

FunctionlabelColor, commonProtective groundPGbare, green, or green-yellowNeutralNwhiteLine, single phaseLblack or red (2nd hot)Line, 3-phaseL1black

What color is the left turn signal wire?

The 4-way system is designed so the right brake light wire and right turn signal are green. The left brake wire and left turn signal are yellow.

What is the red wire on a trailer plug?

The red wire is the turn signal wire and will be run to the green wire of your harness if its the right turn signal side, and the black wire will run to the brown wire of your harness.

Do trailers ground through the ball?

In some instances the trailer will try to ground itself between the hitch ball and coupler if the trailer’s own ground connection is weak or poor. The best solution is to re-establish the trailer’s own ground connection. Find the trailer’s main ground wire at the trailers electrical connection.

When I hit my brakes my trailer lights go out?

It sounds like you have a ground issue. When trailer lighting does not have a sufficient ground many different scenarios can show up, but the most prevalent is when the most amperage is applied, like tail lights on and brake pedal pressed, the lights go out. All lights must be properly grounded for proper function.

What is the white wire for on trailer lights?

The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.

What is the difference between a 6 pin and 7 pin trailer plug?

Many different harness types are used to connect tow vehicles’ power sources to the electrical wiring on trailers. The difference between a 6-pin system and a 7-pin is that the 7-pin has a connection for backup lights. What systems are required by law for your trailer depends on where you live.

What is the black wire on a 6 pin trailer plug?

1. Green: Right turn/brake light.
2. Yellow: Left turn/brake light.
3. Brown: Tail/running lights.
4. White: Ground wire.
5. Blue: Brake controller output.
6. Red or Black: Battery hot lead.

What is the black wire on a trailer?

The black wire of the Hopkins 7-Way Molded Trailer Wire Connector # HM20048 carries the 12 volt accessory circuit. This is the circuit that will typically power interior lights or charge a trailer’s battery.

What is the difference between 4 pin and 7 pin trailer plug?

The only real functional difference between them is that on part # 37185 the 4-pole trailer connector is located to the side of the 7-way, rather than under it as with # HM47180. Both adapters plug in at an existing 4-pole vehicle connector and re-format those lighting signals to the 7-way configuration.
