How do you separate a neutral subpanel from a ground
By Andrew Hansen
When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.
Can ground and neutral be on same bar in subpanel?
When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

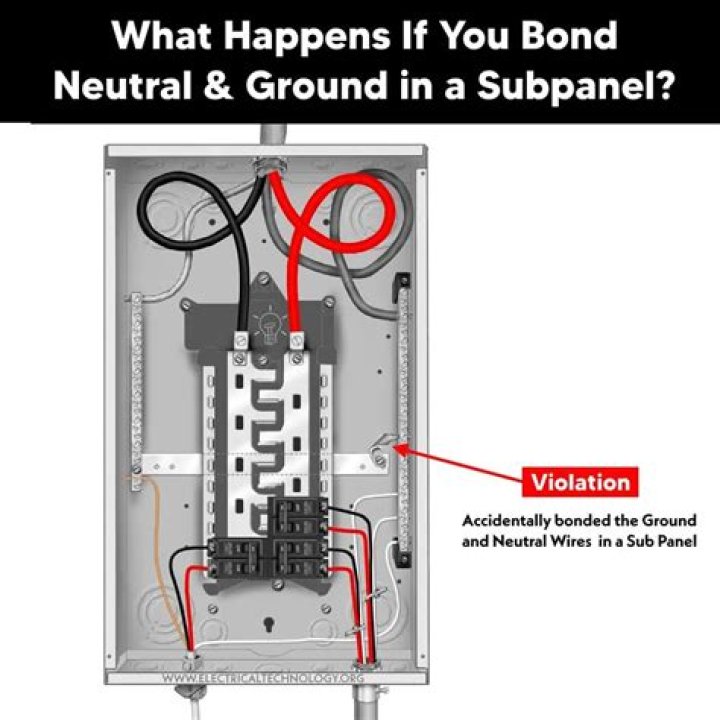

Why does the neutral and ground have to be separated at the sub-panel?
With ground and neutral bonded, current can travel on both ground and neutral back to the main panel. If the load becomes unbalanced and ground and neutral are bonded, the current will flow through anything bonded to the sub-panel (enclosure, ground wire, piping, etc.) and back to the main panel. Obvious shock hazard!
Do you have to separate neutral and ground in main panel?
There should always be a Separate Ground Bar in every panel. . . . Only Neutral wires should be in the Neutral Bar and only Ground wires in the Ground Bar. .Can I tie my neutral and ground together?
No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.
How do you wire a subpanel to a separate building?
Connect the bare wire to the ground strip in the subpanel. Strip back the white wire and connect it to the neutral bus strip. Connect the red and black wires to the two screws on the hot bus strip of the subpanel. Tighten all the screws to hold the wires in place, then attach the subpanel cover.
Does a subpanel require a ground rod?
Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.
Should neutral and ground be bonded?
Whenever you have an auxiliary panel the neutral and ground should not be tied together because the ground wire becomes a parallel path for current with the neutral wire (any current going through the neutral wire will be shared with the ground wire because they have the same connections at both ends).Should subpanel be bonded?
Rule #3: In a subpanel, the terminal bar for the equipment ground (commonly known as a ground bus) should be bonded (electrically connected) to the enclosure. The reason for this rule is to provide a path to the service panel and the transformer in case of a ground fault to the subpanel enclosure.
Why are the neutral and ground bonded at the main panel?2 Answers. The reason the neutral and ground are separate other than at the main panel is to prevent a parallel ground path. The power received from the power company (in the US is 240VAC) This is derived from a step down transformer close to you home.
Article first time published onAre ground and neutral the same?
a ground and a neutral are both wires. unless they’re tied together with other circuits, and not a ‘home run’ back to the panel, there is no difference between the two where they both end up on the same bus bar in the box. They are both wires, but they serve very different purposes in a residential home circuit.
What happens if neutral is not grounded?
If the grounded (neutral) service conductor is opened or not provided at all, objectionable neutral current will flow on metal parts of the electrical system and dangerous voltage will be present on the metal parts providing the potential for electric shock.
How far should a ground rod stick out of the ground?
You need to drive your rod all the way into the ground. The electrical code states that it must have 8 feet (2.4 m) of contact with the ground, so you need to drive it all the way down.
How deep should a ground rod be?
In general, grounding rods put in vertically need to be about 8 feet deep into the soil, or, if in a very rocky area, about 2.5 feet deep when installed horizontally. In some areas, such as those with very sandy “soil” at the top layer, the rod may need to go deeper to be effective since it needs to connect with soil.
How far can a sub panel be from the main panel?
The panel must be easily accessible, so don’t install it too far above the floor; 4.5 to 5 feet is about right. The cable you run from the main panel to the subpanel also depends on the amperage rating.
Can you feed a subpanel with 3 wires?
Grounds and neutrals were isolated to provide separate paths back to the panel. Another way to wire a subpanel was with a three-wire feed; two hots and a neutral, with grounds and neutrals connected together at the subpanel. In this case, the grounds and neutrals have to be connected together.
How many wires does a sub panel need?
This is typically a three-wire cable with three insulated conductors plus a bare copper ground wire. The cable must have a wire gauge sufficient to the amperage of the subpanel—a 100-amp subpanel requires #4 copper wires or, more commonly, #2 aluminum wires, for example.
Does a detached garage need a ground rod?
Yes, you need a grounding electrode (ground rod) local to the detached building.
Why does a subpanel need 4 wires?
The current NEC code requires a 4-wire feeder so there is a separate grounding connector between the Main and Sub panels. The neutral and ground are not bonded in the subpanel.
Where do you bond your neutral at a service?
Neutral wires are usually connected at a neutral bus within panelboards or switchboards, and are “bonded” to earth ground at either the electrical service entrance, or at transformers within the system.
Why is the neutral grounded?
The neutral provides the path for electrons to move from phase through any electrical equipment. All the neutral lines are grounded so that the system (all the equipments connected) has the same electrical potential which ensures the quality and security of power distribution.
Can the neutral wire shock you?
One line provides all the power to each outlet connected to the main service panel. The neutral wire is normally at the same potential as the active wire in an AC circuit. So, if you touch the neutral wire at any point, you will not get a shock.
Does neutral wire carry voltage?
Voltage is carried by the live conductor, but a neutral conductor is also necessary for two important functions: Serving as a zero voltage reference point. Completing the circuit, providing a return path for the current supplied by the live conductor.
Do all switches have a neutral wire?
Combined with a power source and ground wire, you have the makeup of a contemporary light switch, but earlier switches operate without the neutral. … Most homes built after the 1980s have a neutral wire throughout the space, case closed.
What happens if neutral wire is loose?
Answer: A loose neutral wire can cause abnormal arcing around its point of connection, usually resulting in the neutral wire becoming unusually hot, burning its insulation off and even causing damage to its surroundings. A loose NEUTRAL WIRE is also the cause of the majority of electrical fires in your house.
Does neutral have to be grounded?
The grounding of the neutral wire is not related to the operation of electrical equipment but is required for reasons of safety.
Why are 2 ground rods required?
Suppose you drive the first ground rod for a system. If it has a ground resistance of 25 ohms or more, 250.56 of the 2005 NEC requires you to drive a second rod. … Ground rods spaced less than two rod-lengths apart will interfere with each other because their effective resistance areas will overlap (Fig.
Can you cover grounding rods?
Member. The ground rod is fine but you’ll more than likely have moisture & corrosion problems with the ground wire connection being covered in dirt! That’s why most ground wire-to-ground rod connections are above the dirt.
