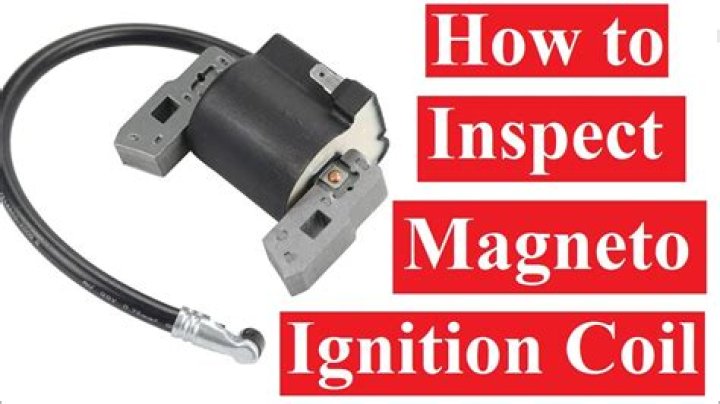

How do you test a small engine ignition coil

Engine misfires.Rough idle.A decrease in car power, especially in acceleration.Poor fuel economy.Difficulty starting the engine.Check engine light is on.Exhaust backfiring.Increased hydrocarbon emissions.

What are the symptoms of a bad coil on a small engine?

• Engine misfires.
• Rough idle.
• A decrease in car power, especially in acceleration.
• Poor fuel economy.
• Difficulty starting the engine.
• Check engine light is on.
• Exhaust backfiring.
• Increased hydrocarbon emissions.

How many ohms should a small engine coil have?

A working ignition coil will give a reading of between 2.5 – 5 k ohms. Set the positive lead of the multi-meter in position where the spark plug would usually insert – ensure it has made good contact.

How do I know if my lawnmower coil is bad?

Replace the original wire with the in-line spark tester, and attempt to start the motor. Watch for the same intensity of a spark that you saw when the mower was cold, If there is little or no spark, the ignition coil is bad and needs replacement.

How many ohms Should a coil read?

You should have a resistance reading of at least 3-4.5 ohms. A bad coil will show a higher reading then 3-4.5. Next, place the red or black lead from the meter to the centre of the coil , and to either one of the terminals positive or negative. You want 9500-10000 Ohms, a little less is ok but no more.

Why do small engine ignition coils fail?

Because the ignition module is electronic and does not utilize moving components, it is normally one of the most reliable part of the engine. When it does fail, it is usually due to heat caused from improper wiring of the ground wire to battery voltage.

Can you test a magneto with a multimeter?

Set the multimeter into the ohms function, or just use an ohmmeter. Manually set the dial or button on the meter to the 40 k range. Do not use auto ranging, as it is unreliable with a magneto. … Replace the magneto if the meter reads “OL.” This indicates an internal short in the magneto.

How do you test a flywheel magnet?

Mark the magnets on the flywheel by labeling them in the position they sit with a small piece of masking tape on the flywheel. You can test the magnets for position by using another small ceramic magnet. If the magnet is repelled, label the flywheel magnet R, and if it is attracted, label the flywheel magnet A.

How do you test a 2 stroke ignition coil?

Attach the ends of a multimeter to the coil connections for input and to ground, testing electrical resistance in the unit. Replace the coil unit with a new one, if the reading shows as infinity or zero. This means that there is no resistance the unit is burned out.

Do lawn mower ignition coils go bad?

Your mower may have a bad coil, especially if you cannot re-start your mower while it is still hot. If you have to wait for the mower to cool to start it, you should probably replace the ignition coil.

Article first time published on

How do you test a lawn mower coil with a multimeter?

Testing Procedure Scratch the lead on the plate to ensure it’s in contact. Touch the meter’s black lead to the metal coil housing and watch the meter. If the meter’s display indicates a value of 2.5 to 5 K ohms, then the coil is good.

How do you troubleshoot an ignition coil?

1. Plug the tester into the coil.
2. Attach the ground wire.
3. Plug in the coil connector.
4. Adjust the spark gap to the correct measurement.
5. Start the engine.
6. If there’s spark, great, it works! If there’s no spark, it’s a bad coil.

What are the symptoms of a bad magneto?

Most “bad mag checks” are spark plug related. The spark plug is fouled and shorted to ground or is open and the magneto, which is functioning normally, is unable to fire it. A typical bad plug will cause an immediate drop of 250 or more RPM, at the mag check. The key indicator is the suddenness of the drop.

How many volts should a magneto put out?

BACK TO CONTENTSQuestions or comments?© Alaska Native Knowledge Network

Should magneto touch flywheel?

The magneto should not touch the flywheel. In fact, you have to adjust the gap between the coil and flywheel magnets so that the flywheel magnet lines up directly with the magnetic coil and feeler gauge tool.

Are small engine coils interchangeable?

Currently most all automotive ignition coils are application-specific and are not interchangeable from one manufacturer to another. If you are asking about a different type or use of an ignition coil then repost the question with the specifics.

What should the gap be between ignition coil and flywheel?

An ignition armature must be set at a precise distance from the flywheel. Your engine repair manual will provide the proper gap for your engine. Common armature gap ranges are . 006 – .

Can flywheel magnets go bad?

yes the magnet in the flywheel could be weak.

Why is my lawn mower turning over but not starting?

The most common reason for a riding mower cranking over but not starting is bad gas, but other possible reasons include: Gas Valve Off. No Gas. Choke Fault.

Why is my lawn mower not getting spark?

If no spark appears, check for broken wires, shorts, grounds or a defective stop switch. Once you have confirmed that the stop switch is working, reconnect the spark plug lead.

What is a magneto on a small engine?

The magneto is a self-contained generator of high voltage that provides ignition to an engine through spark plugs. … The moment the contact points open, a rapid magnetic flow generates a high voltage in the secondary coil, which ignites the spark plug, thus firing the engine.
