How do you wind a regulator clock

To wind the clock use the enclosed key. Turn key clockwise until it stops (about 3 1/2 turns on the left winder and about 4 1/2 turns on the right winder. Wind the center winder until the weights are at the top. Wind gently so the weights do not suddenly reach the stopping point at the top.

What are the 3 holes on a wind up clock?

The middle hole will wind the spring that powers the timekeeping function of the clock. The right hole, as you’re looking at the clock, powers the chimes of the clock. Finally, the left winding hole, as you’re looking at the clock, powers the hourly strikes of the clock.

Why does the pendulum on my clock keep stopping?

The reason a clock pendulum often stops swinging, after being moved, is because the clock case now leans at a slightly different angle then it did at its former location. … A clock is “in beat” when the tick and the tock are evenly spaced.

Which keyhole winds the clock?

Don’t force the key further. In clocks with more than one keyhole, the left-most hole usually controls the hourly chime, and in clocks with three keyholes, the center keyhole is typically for the quarter-hour chime, although again this can vary from model to model.

Can you fix an overwound clock?

Solutions to overwound clocks Begin by removing the outer shell of the clock, exposing the mechanism. … You can also apply small amounts of clock cleaning fluid, which should be available to find online with a bristle brush if required, however most find that warm water may tackle the job just as well.

How do you wind an old mantle clock?

The most effective way to wind your clock would be to open the front door, insert the crank, hold the clock steady with your left hand, and turn the crank with your right hand. After winding the clock, set the correct time by moving the minute hand either clockwise or counterclockwise.

How do you set a wind up pendulum clock?

1. Locate the winding points on the clock face. …
2. Insert the key or crank into a winding point. …
3. Continue turning the key or crank until it won’t turn any further. …
4. Wind the other one or two winding points the same way if your clock chimes on the hour or quarter-hour.

What causes a pendulum to eventually slow down and stop swinging?

When the swing is raised and released, it will move freely back and forth due to the force of gravity on it. The swing continues moving back and forth without any extra outside help until friction (between the air and the swing and between the chains and the attachment points) slows it down and eventually stops it.

Can you over wind a clock?

Luckily, the truth is that you can’t over-wind your clock. Over-winding is basically a myth! Let’s take a look at what actually causes a clock to quit running or chiming after winding it up… … The other end hooks onto either the inside of a drum or on the corner post of the clock movement.

Why is my wind up clock losing time?

Regulating your clock is adjusting the rate of timekeeping or making the clock run faster if it loses time. The adjustment is made with the rating nut on the bottom of the pendulum. When adjusting hold the pendulum bob in your left hand turning the nut to the right (tightening) makes the clock run faster.

Article first time published on

How do I keep my pendulum swinging?

1. Make it heavy (and, specifically, dense). The more mass a pendulum has, the less outside influences such as air resistance will degrade its swing.
2. Put it in a vacuum. …
3. Use an escapement mechanism. …
4. Give it a large initial swing.

How do you regulate a pendulum clock?

Regulating the clock — Pendulum Nut: The clock can be made to go faster or slower by means of the nut at the bottom of the pendulum. Turning the front of the nut to the right speeds up the clock, and turning it to the left slows it down (in other words move the nut up to speed up, or down to slow down).

How do you fix a clock that keeps stopping?

First, stop the clock by holding the pendulum in the central position. Then carefully move it first to the right, until it ticks. (If it doesn’t tick, move it to the left, instead). Then do the same on the opposite side.

How do you release an overwound grandfather clock?

A clock can be overwound, resulting in the weights being stuck in the highest position. When this happens, gently move the minute hand past the quarter hour and listen for the chime. This should release the weight. When winding, be sure you can see the top of the weight and then stop to avoid overwinding.

How do you wind a 31 day regulator clock?

Try to wind the clock as close to the time when it stopped as possible. Move the long minute hand on the clock face clockwise to set the current time. The hour hand should travel along with the minute hand. Wait for the clock to strike each hour if you have to move the time up several hours.

How do you regulate a mantel clock?

The adjustment nut is a large nut at the bottom of the pendulum just below the large disk or weight called the bob. To slow down the clock, loosen the adjustment nut (turn it toward your left). The bob will settle lower, making the effective length of the pendulum longer. The clock will run slower.

How often should I wind my mantle clock?

We recommend winding a mantel clock every seven days, partially to be safe and partially because it’s easier to keep a weekly schedule. Wind the clock at approximately the same time of day each time.

Why won't the pendulum keep swinging?

Often a pendulum clock will stop when it has been moved, bumped or even a too aggressive push to restart a pendulum. It is not broken, only out of beat. This only takes a few minutes to readjust and all pendulum clock owners should learn how as this will happen eventually.

What force stops a pendulum from swinging?

The standard answer would be that gravity is the force that causes a pendulum to stop swinging.

How do I adjust the chimes on my pendulum clock?

1. Stop the pendulum and open the access panel to the chimes.
2. Raise one of the chime hammers slightly with a pencil and quickly release it. …
3. Bend the chime hammer near the middle of its shank until it rests approximately 1/8 inch above the chime rod. …
4. Raise the hammer after the adjustment and release it.

Why won't My grandfather clock stay running?

Your clock needs to have an even “tick”. If the tick sounds comparable to a guy walking with a limp, it won’t run. The pendulum needs to travel an EVEN distance after each tick. If it doesn’t, it will stop.

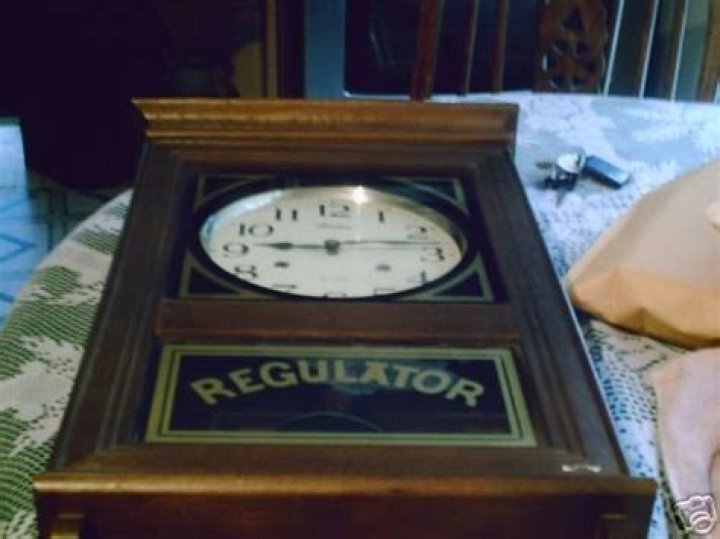

What is a regulator pendulum clock?

A regulator clock is a generic term for a wall-mounted, weight-driven clock regulated by a swinging pendulum. Invented in the late 18th century to improve upon the accuracy of spring-wound clocks, regulators usually have separate mechanisms for the minute and hour hands.
