How do you wire a 4 way trailer plug
By Olivia Bennett
Why Does 4-Pin Trailer Wiring Have 5 Wires Your 4-pin/5-wire wiring harness is what is called a “wishbone” type which simply means that there are two separate running light wires, one brown and one pink. This allows a separate running light wire for each side of the trailer which… view full answer…
Why does my 4 prong trailer plug have 5 wires?
Why Does 4-Pin Trailer Wiring Have 5 Wires Your 4-pin/5-wire wiring harness is what is called a “wishbone” type which simply means that there are two separate running light wires, one brown and one pink. This allows a separate running light wire for each side of the trailer which… view full answer…
Do trailer lights need to be grounded?
Each lamp needs to be grounded either through its mounting studs being in direct contact with the trailer frame or by having a jumper wire ran from the lamp to the trailer frame. Ground the trailer connector at the front of the trailer, which will use the trailer frame as a ground wire.
What is the color code for trailer wiring?
The four colors that make up your 4 wire trailer cable’s color code are brown, green, yellow, and white. Each color in a 4 wire trailer wire has a specific function. Usually, if you screw up a trailer’s wiring, you will end up with a blown fuse.How do you wire a 7 pin trailer plug with 5 wires?
When wiring a 7-Way on your trailer with 5 wires, your green wire will be right turn/brake, the yellow wire will be left turn/brake, the brown wire will be the taillights, and the white wire will be the ground.
What are the 4 trailer wires?

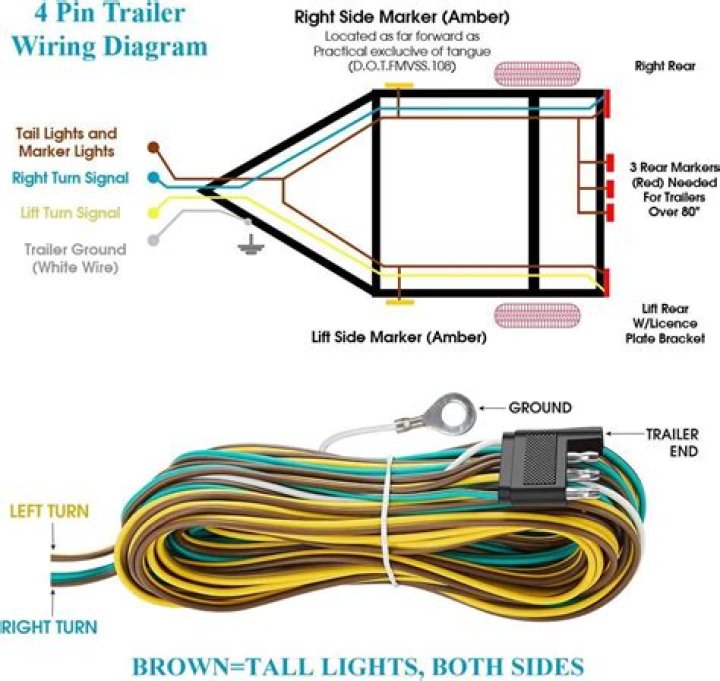

Trailer Wiring Has 5-Wires White, Yellow, Green, Yellow/Brown, and Green/Brown On a 4-Way flat trailer wiring harness, white is the ground, brown is running lights, yellow is left turn signal and green is right turn signal. It sounds like your trailer has a wishbone harness.
What is a wishbone wiring harness?
You have what is called a wishbone harness like # A20WB. This type of harness take the running light circuit and splits it at the trailer connector so that you do not have to run a jumper wire from one tail light to the other. … The green/brown wire is the running light circuit for the passenger side.
What is blue wire on trailer lights?
It is an auxiliary wire typically used to connect the reverse lights from the tow vehicle to the reverse lockout solenoid located directly behind a surge brake actuator. When properly connected it allows you to disengage the trailer brakes in order to back the trailer up (without getting out of the vehicle).What do the colors on wires mean?
Electrical wiring comes in one of several colors: Black Wires – when you see a black wire, always assume it’s live. … Blue Wires – always assume they are live if you have power. Blue wires are also fed through a conduit, usually bringing power to three or four-way switches. Green Wires – green wires are grounding wires.
How do you wire a 4 pin trailer to 7 pin trailer adapter?- Cut the four-pin plug off of the trailer harness. Verify the harness color codes at each tail light. …
- Turn on the tow vehicle tail lights. Probe the seven-pin connector with a test light. …
- Splice the seven-pin trailer plug leads to the trailer harness.
Can you convert a 4 pin trailer to a 7 pin?
To connect your vehicle that has a 4-Way flat connector to your trailer that has a 7-Way connector, you will need to install a 7-Way on the rear of your vehicle. If you just want or need the tail light functions to operate on your trailer you will just need Adapter 4 Pole to 7 Pole, part # 37185.
Does trailer have to be on ball for lights to work?
My question is does the trailer need to be grounded to my truck for lights to work? … In some cases trailer lighting will ground through the hitch ball but that’s typically only if the actual ground circuit is insufficient. This is not an ideal setup. It needs to ground through the wiring of the trailer harness.
When I hit my brakes my trailer lights go out?
It sounds like you have a ground issue. When trailer lighting does not have a sufficient ground many different scenarios can show up, but the most prevalent is when the most amperage is applied, like tail lights on and brake pedal pressed, the lights go out. All lights must be properly grounded for proper function.
What is the difference between 4 pin and 7 pin trailer plug?
The only real functional difference between them is that on part # 37185 the 4-pole trailer connector is located to the side of the 7-way, rather than under it as with # HM47180. Both adapters plug in at an existing 4-pole vehicle connector and re-format those lighting signals to the 7-way configuration.
How do you rewire a trailer?
- Sketch a trailer wiring diagram.
- Remove the old trailer lights and wiring.
- Lay out the new wiring.
- Mount the ground wire.
- Install the marker lights.
- Clip the wires onto the frame.
- Install the taillights.
- Test the trailer lights.
Can you plug a 4 pin into a 5 pin trailer plug?
If the 4-pole and 5-pole connectors on your vehicle and trailer are the flat style connectors, then you could simply plug the 4–pole trailer connector into the 5-pole vehicle connector. … If you did not want to add trailer brakes, then you could simply tie off the brake wire and tuck it away.
Are all 7 pin trailer connectors wired the same?
Helpful Expert Reply: Yes, there is only one type of 7-way blade connector.
What is the blue wire on a 5 pin trailer plug?
The blue wire will connect to the reverse light circuit on the tow vehicle, but it will also send a signal to disengage the brake actuator on the trailer when you put your vehicle in reverse. So when you are in reverse, the trailer brakes will not be engaged.
Where does the yellow wire go on a 7 pin trailer plug?
The yellow wire of the 7-way harness part # H20044 that you referenced goes to the center pin of the 7-way which is an aux circuit that is typically used for reverse lights if present on the trailer.
What color are the wires?
FunctionlabelColor, commonProtective groundPGbare, green, or green-yellowNeutralNwhiteLine, single phaseLblack or red (2nd hot)Line, 3-phaseL1black
Which is positive black or red wire?
One is marked positive (+), the other negative (-). There are also positive and negative cables in the jumper cable set. The red one is positive (+), the black one is negative (-). Never connect the red cable to the negative battery terminal or a vehicle with a dead battery.
Which wire is hot when both are clear?
If the plastic is clear, the wires in the neutral side are silver while those in the hot side are copper.
Can red and black wires go together?
If the red and black wires are connected together already and energized, yes you can do that but you will need a pull chain light or a remote control, if they are not switch controlled.
What is green wire on trailer lights?
The green wire on the right side carries right turn signal and brake light functions, while the brown wire carries running light functions. On the left side, the yellow wire carries the left turn and brake lights and the brown wire carries the running lights.
What is white wire on trailer lights?
The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.
