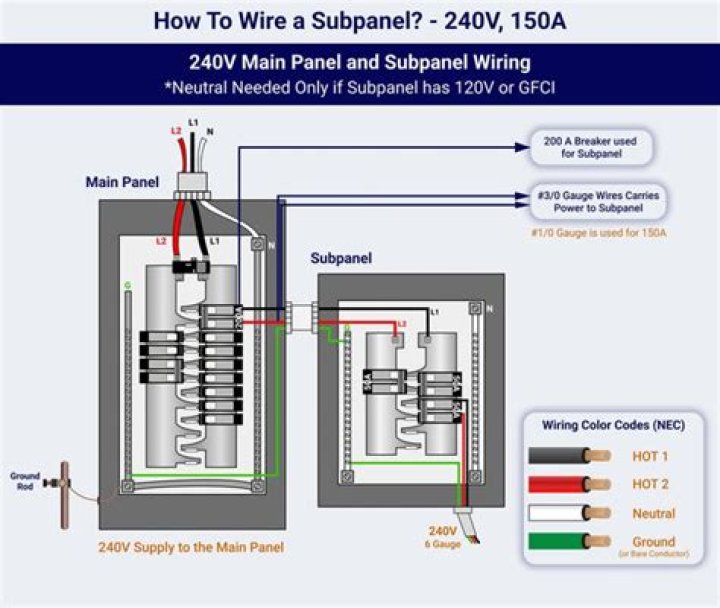

How do you wire a GFCI breaker in a subpanel

2 Answers. Hook up the GFCI in the usual way, entirely inside the sub-panel. That is to say, hook the GFCI’s pigtail to the neutral bus on the sub-panel, then wire hot and neutral from that circuit into the GFCI breaker.

Can you install a GFCI breaker in a sub panel?

2 Answers. Hook up the GFCI in the usual way, entirely inside the sub-panel. That is to say, hook the GFCI’s pigtail to the neutral bus on the sub-panel, then wire hot and neutral from that circuit into the GFCI breaker.

Can I convert any outlet to GFCI?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. While it’s common to find GFCI outlets in bathrooms and kitchens, there are GFCI outlet requirements.

Will a GFCI breaker work without a load neutral?

On 2P 15A to 50A the GFI breaker will work with or without a load neutral wire. However, if there is no load neutral wire the breaker neutral (white curly wire) must still be connected to the panel neutral.

Can you feed a GFCI breaker with a GFCI breaker?

2 Answers. Yes, it can be done. There is no problem having a GFI fed from another GFI. The only down side is troubleshooting.

Can I use a 2 pole GFCI breaker without neutral?

It doesn’t make any difference if the load is pure 240-volt (with two hots and no neutral) or 120/240-volt (with two hots and a neutral) — you use the same double-pole GFCI breaker. You even install it the same. … There will be no connection to the breaker neutral, so just ignore it.

Where does the white wire on a GFCI breaker go?

The builtin white wire in the ground fault circuit interrupter circuit breaker should be directly connected to the incoming supply neutral bar in the home mains distribution board or it will not work otherwise.

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

Does a 240 volt GFCI need a neutral?

Any 120V or 120/240V equipment must be supplied with a neutral conductor. In a 240V-only circuit, there is no neutral, and the ground can be either insulated or uninsulated.

Can I install a GFCI outlet myself?

After you have removed the old outlet, you can begin replacing it with the new GFCI outlet. Using your needle nosed pliers or wire cutter, make sure the wires are straight and able to be put into the new GFCI outlet. As you begin, turn the outlet over. … You only want to be rewiring your GFCI outlet into the line screws.

Article first time published on

Can you install a GFCI with only 2 wires?

GFCI works fine on a 2-wire circuit, it’s just your typical tester that won’t work. The tester needs a ground to be able to simulate a leak to cause it to trip. It will still trip if there is an actual current leak or if you use the device test button which does not require a ground to work.

Can you have a GFCI breaker and outlet together?

You can, and it’s permitted by code, but you run the risk of coordination issues between the GFCI trip units on the GFCI breaker and the downstream GFCI receptacle(s), since they are typically both designed to trip on an unbalance/leakage current of 5mA or more.

Does a GFCI outlet need a special breaker?

GFCI and AFCI outlets connect directly to the circuit. You do not need both a GFCI outlet and a GFCI circuit breaker on the same circuit.

Can you put 2 wires on a Square D breaker?

Yes, the newer Sq D is rated for (2) conductors (One on either side ) like in the picture we had last weekend. Just make sure they are seated correctly into the breaker and not angled or cross seated and it is fine.

What is difference between arc fault and GFCI breakers?

The AFCI (Arc Fault Circuit Interrupter) protects against fires caused by arcing faults. Arcing faults often occur in damaged or deteriorated wires and cords. … The GFCI (Ground Fault Circuit Interrupter) is designed to protect people from severe or fatal electric shocks.

Why does my AFCI breaker keep tripping?

The two main causes for nuisance tripping at AFCI circuit breakers are improperly wired circuits and incompatibility with electronic devices. … Another wiring problem is more of an incompatibility issue than a wiring issue, and it has to do with multi-wire circuits.

Do I need to install arc fault breakers?

AFCIs are required on all 120-volt, single-phase circuits with 15 to 20 amps supplying receptacles in all dwelling rooms. If, for example, if you use your basement as a living room, playroom, or recreational room, then you will need to install an AFCI protection. However, basements (garages, attics, etc.)

Can I install a GFCI outlet without a ground wire?

A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. … Installing a GFCI is an acceptable alternative to the dangerous and illegal practice of a bootleg ground. Using a GFCI without ground wire is OK as long as you label it as such.

Where does the hot wire go on a GFCI receptacle?

The line connection is used for all GFCI outlet installations. The circuit’s hot wire (typically colored black or red) connects to the black or brass-colored screw terminal marked LINE. The white neutral wire connects to the silver-colored screw terminal marked LINE.

Do they make a 2 pole GFCI breaker?

Eaton Type BR 20-Amp 2-Pole GFCI Circuit Breaker.

Does a two pole breaker need a neutral?

Double-pole breakers have two hot wires that are connected by a single neutral wire. … These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.

Does a breaker need a neutral?

The circuit breaker does not need connection to any reference, as it acts only as a switch. For that reason there is no ground nor neutral cable connected to it.

How does a 240 volt breaker work?

The way you get a 240-volt circuit is simple. A “double-pole” circuit breaker is clipped into both 120 buses at the same time, so the voltage to the circuit is doubled. That’s why 240-volt circuits need two hot wires and a neutral to carry the electricity to the appliance, plus a ground wire.

Can you wire GFCI outlets in series?

One can wire a single GFCI outlet with multiple GFCI outlets located in different areas of our homes like in multiple rooms, kitchens, and bathrooms. We can do this by installing a single GFCI and then wiring together the added standard outlets to the load with the help of that GFCI.

How many wires does a GFCI outlet have?

A cable consists of 2 or 3 wires. LINE cable: Delivers power from the service panel (breaker panel or fuse box) to the GFCI. If there is only one cable entering the electrical box, it is the LINE cable.

What might happen if the line and load connections of a feed through GFCI receptacle were reversed?

Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. … If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.

How much does an electrician charge to install a GFCI outlet?

The average cost to install a GFCI outlet is $220 per outlet when you hire a licensed electrician. This cost includes the outlet and labor expenses. The cost to hire an electrician is $80 to $150 per hour for one GFCI outlet, with a minimum charge of one hour.
