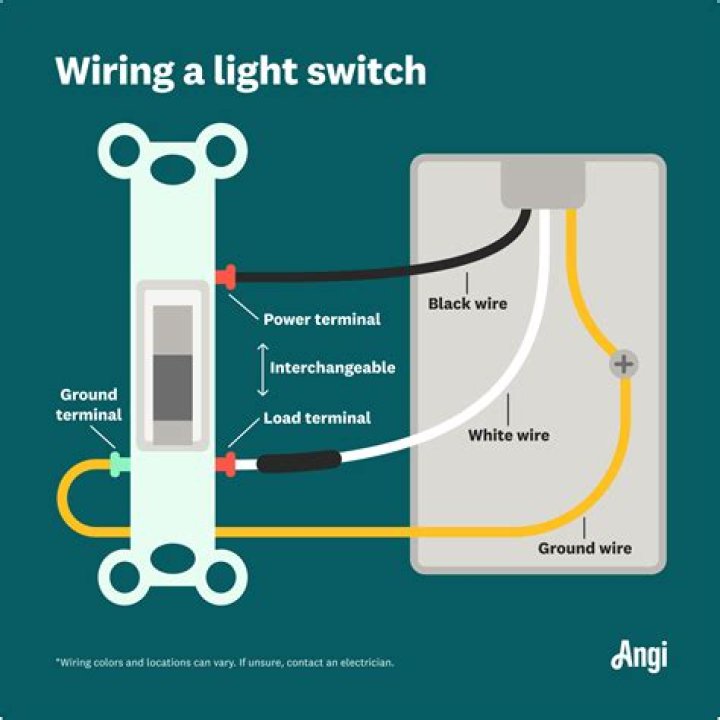

How do you wire a red black white light switch

Attach the white wire from the light fixture, which is now the hot wire, to the nut at the top right of the switch. Attach the red wire from the light fixture to the nut at the top left of the switch. Connect the bare copper wire to the green nut at the bottom left of the switch.

Where do the red black and white wires go on a light switch?

Attach the white wire from the light fixture, which is now the hot wire, to the nut at the top right of the switch. Attach the red wire from the light fixture to the nut at the top left of the switch. Connect the bare copper wire to the green nut at the bottom left of the switch.

What is the red wire for on a light switch?

What are Red Wires? Red wires are usually used as secondary hot wires. Red wires are also hot and should be clearly marked to avoid the dangers of electrocution. Red wires are commonly used when installing ceiling fans, where the light switch maybe.

How do you wire a light fixture with red black and white?

You can cap off or wirenut the red and push it back in the fixture box. Black to black, white to white, green to ground. The red wire will be a second “black” wire that is wired to a second switch (one switch for fan, one for the light on the fan). The red wire will be treated as a second black wire.

Does red wire go to white or black?

Connect the green wire to the household ground wire (copper/bare wire). Connect your white wires together and secure with wire nut. Connect the red wire in the ceiling to the black wire in the light kit and the black wire in the ceiling to the black wire in the fan. Tuck the wires back into the box.

Can I connect red and black wires together?

Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

What are the red and black wires on a light switch?

• Black Wire – This is the hot or load wire.
• White Wire – This is the neutral wire.
• Bare Copper (Green) Wire – This is your ground wire.
• Red Wire – This wire is used for 3 or 4 way switches and will connect the switches together so they can each control your lights.

Can you attach red and black wires together?

If the red and black wires are connected together already and energized, yes you can do that but you will need a pull chain light or a remote control, if they are not switch controlled.

Do red and white wires go together?

In the US, the answer would be no, even though I am reluctant to answer this. White is not aggressive. White is neutral, black is 120, green is ground, and red is the other phase of the mains into your house.

Where does red wire go on 3 way switch?

The black hot wire connects to the far right switch’s common terminal. Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.

Article first time published on

Which wire is positive red or white?

Wire Colors for DC Power The coloring is as follows: Positive – The wire for the positive current is red. Negative – The wire for the negative current is black. Ground – The ground wire (if present) will be white or grey.

What do you do with the red wire?

If there is a red wire and a black wire, then the box is wired for a light and a fan. There should be two switches also. If you don’t have a fan, simply put a cap on the red wire, and connect the light normally to the black wire. You will then have a switch which does nothing.

What color wire does red connect to?

Red: Hot Wire Like black electrical wires, red wires are also hot or live wires. Red can also be the connecting wire between two smoke detectors that are hardwired. Also, if your circuit box is wired for 240 volts instead of 120 volts, you may even see both red and black wires.

Does it matter what wire goes where on a light switch?

If it’s a single pole switch with two terminals, the answer is no. One wire is the power to the switch and the other wire goes to the light.

What does a red and white wire mean?

White Wires With Red Or Black Tape To indicate this, they will have red or black tape to show that it is a hot wire, not a neutral. Generally, these wires are not the main hot wire, but they can be used as the secondary hot wire on a 240-volt outlet or appliance.

Are black and red wires the same?

Standard House Wiring Colors In the standard wire color code, the hot wire in a cable with two conductors plus ground is black, and the extra hot wire in a three-conductor set is red. The standard ground wire color is either bare copper or green.

Is Red wire live or neutral?

Black (neutral) Red (live) Green and yellow (earth)

What is the common wire on a 3 way light switch?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

What are the three types of wires and their respective color represents?

THHN and THWN wires have colored sheathings that are generally used to identify their function in a circuit: Hot wires: Black, red, orange. Neutral wires: White, brown. Ground wires: Green, yellow-green.

What happens if you wire a light backwards?

Tip. The fixture still works if you reverse the wires, but the socket sleeve will be hot, and anyone who touches it while changing a bulb can get a shock. When wired correctly, the socket sleeve is neutral and only the small metal tab at the base of the socket is hot.

Is negative red or white?

In DC circuits, the positive pole is usually marked red (or “+”) and the negative pole is usually marked black (or “−”), but other color schemes are sometimes used in automotive and telecommunications systems.

Can I connect red wire to ground wire?

It is it is a code violation and a safety issue. You need to find the other end of the cable and if the red is hooked to the ground on that end too it needs to be disconnected. To determine if the bare wire is a viable ground measure voltage between it and the black.

Do you have to connect the red wire?

If you change a light fixture and find a red wire in the electrical box, chances are the black wire from the fixture needs to go to the red wire in the box. … But in places like a bathroom or a wall light, if you see a red wire, it’s a good bet that the red wire is the wire that’s connected to the light switch.
