How does a ceiling fan speed switch work

Solid-state controls change the level of power in the fan motor to control the speed of the fan. For instance, when you switch from medium to high on a solid-state fan, the speed control mechanism increases the power of the motor.

How does a ceiling fan speed control switch work?

Solid-state controls change the level of power in the fan motor to control the speed of the fan. For instance, when you switch from medium to high on a solid-state fan, the speed control mechanism increases the power of the motor.

Can any ceiling fan be variable speed?

Variable speed controls must be specially designed for use with ceiling fans. Using a dimmer switch is not recommended for use with a ceiling fan. Converting a three-speed ceiling fan to variable speed is even easier if the original fan was wired to a light switch to turn the fan on or off.

How does a variable speed fan switch work?

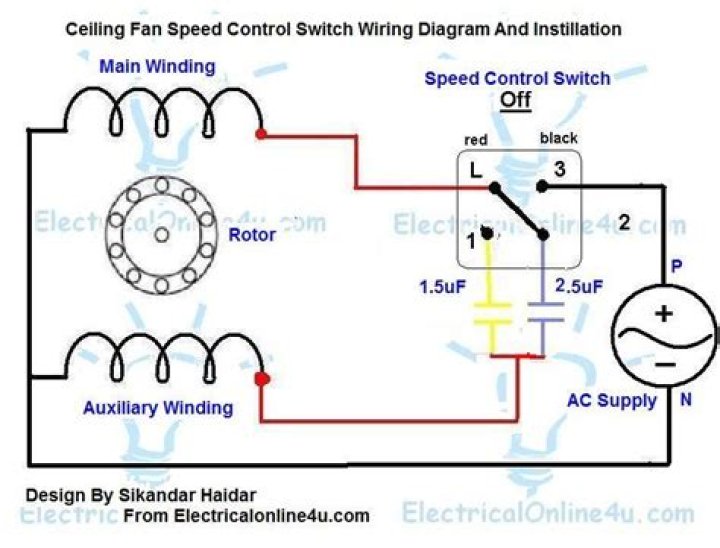

The idea behind a capacitor regulator remains the same, which is to adjust the voltage across the motor of the fan. Now, when you increase the capacitance, the voltage across the capacitor decreases but that across the fan motor increases. Accordingly, the speed of the fan increases.

How do three speed fans work?

With 3-speed motor, Hot voltage connects to main winding at 3 different points. Only 1 point at a time receives power. That’s what the fan switch does. When voltage is applied to each point, the main winding is energized as voltage from Black Hot wire completes circuit with White neutral wire.

Can I use a dimmer switch to control fan speed?

A dimmer switch can be used to control a ceiling fan’s speed and turn it on and off. In theory, any dimmer switch has these capabilities, but in practice, there can be issues if you don’t use the right kind of dimmer switch for your fan.

How do ceiling fans have different speeds?

Its phase relation to the voltage on the primary winding won’t be exactly 90 degrees, and this will result in reduced torque and/or speed from the motor. The two fans may run at different speeds because their capacitors always were a little different and/or have degraded differently over time.

Can you control a ceiling fan with a dimmer switch?

Standard dimmer switches should never be used to control the fan motor on a ceiling fan because the dimmer could damage the fan motor, or overheat and start a fire. … You can actually purchase a device that will do this – it consists of a wireless remote and a receiver that gets wired directly in to the fan.

Why do ceiling fans get slower?

Ceiling Fan Running Slow Reason The reason a ceiling fan is spinning slowly is almost always the result of dirty or damaged ball bearings. … Even at the top speed setting, with enough friction, the fan blades move slowly or not at all, and the motor may even burn itself out.

Why does my ceiling fan only go one speed?

Capacitor Issues This problem is frequent in old fans. … The ceiling fan capacitor decides the amount of the power to be delivered to the motor. When the capacitor does not work, the required amount of the power will not be transferred to the motor and that might make your ceiling fan to stick on the same speed.

Article first time published on

What is the speed of ceiling fan?

Customers looking at fan speed should check the fans RPM (Rotations per minute of the blades). The standard 1200 mm (48) fan, runs at 300/350 RPM while the Hi-Speed fan runs at 380/390 RPM or so.

Will a 4 speed fan control work on a 3 speed fan?

If you’re able to connect your new wireless remote to the existing fan (with no electrical snafus), your fan will happily work with the 3 speeds your remote comes with. It’s harder to determine which setting you’ll lose, though your highest speed will probably be the same.

What are the 3 speeds on a ceiling fan?

I have a Harbor Breeze fan and size is 52″ inches in diameter. Most ceiling fans have 3 fan speeds. High, medium, and low. If the fan is off, pulling the chain will set the fan in HIGH speed.

What is the difference between light dimmer and fan speed control?

Talking about the differences between a dimmer switch and a fan speed regulator, the basic one is that the dimmer reduces the voltage. In contrast, the fan control reduces the amperage. The fan speed controller regulates the rotor’s speed by increasing or decreasing the current, or amperage, available to the rotor.

Should my ceiling fan switch be up or down in the summer?

In the summer, ceiling fans should rotate counterclockwise to push cool air down to the floor. The cool air evaporates perspiration and creates a wind chill effect, which makes you feel cooler without affecting the room temperature. … If you do not feel air movement, the fan is spinning clockwise.

How do you check ceiling fan RPM?

It is very easy. Just place the sticker on fan base which is facing the down side. And start your fan just stand below the fan and use tachometer and press the measure button while facing the tachometer to the sticker on the fan. Volla, u will get the RPM.

Do smart switches work with ceiling fans?

【REQUIREMENT】The smart fan switch does not compatible with fans having built-in remote control system. Not use for exhaust fans and smart bulb. … 【SMART BRIGHTNESS & FAN SPEED CONTROL】The smart light switch can adjust fan speed and dim your lights from anywhere with smartphone using the Smart Life App or Treatlife App.

How does a dimmer switch work?

A dimmer switch changes the direction of electrical flow every time that it is used to dim or brighten the lights. … Ultimately, the dimmer switch controls the electrical cycle for dimming a light. When the switch is turned down low the cycle takes longer to complete, and the light emits a lower level of brightness.

What is a full range dimmer switch?

The more expensive is the full-range dimmer, or rheostat. It has a rotating knob and can provide completely variable control from a dim glow to full brightness. Usually it has a 600-watt capacity (the amount is stamped on the device), which is more than enough for a typical living room lighting circuit.

How do you test a ceiling fan capacitor?

Count to three while the leads on the meter charge the capacitor. Reverse the leads on the capacitor. Look for movement of the needle on the meter toward infinite ohms. If the meter doesn’t move toward infinite ohms, the capacitor is bad.

Is it bad to leave your ceiling fan on all the time?

You can leave a fan running continuously for eight hours, on average, without worrying about unexpected ceiling damage or fires in your home. … If you want to safely use a ceiling fan for an extended period of time, it’s in your best interest to invest in regular ceiling fan maintenance.
