How does a constant speed prop work

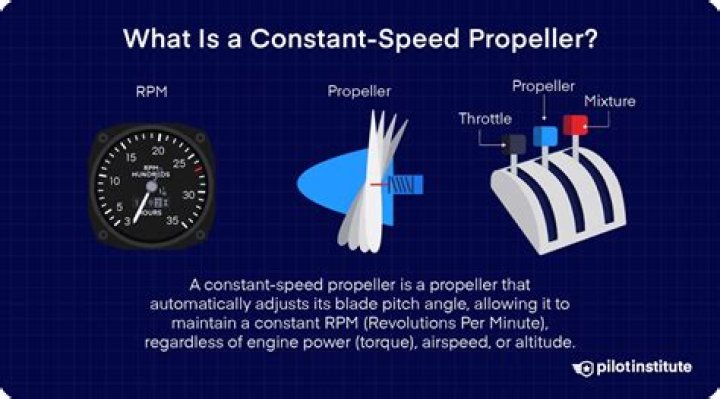

A constant speed propeller is a propeller that is designed to automatically change its blade pitch to allow it to maintain a constant RPM, irrespective of the amount of engine torque being produced or the airspeed or altitude at which the aircraft is flying.

What is the purpose of a constant speed prop?

A constant speed propeller is a propeller that is designed to automatically change its blade pitch to allow it to maintain a constant RPM, irrespective of the amount of engine torque being produced or the airspeed or altitude at which the aircraft is flying.

How does a constant speed prop maintain RPM?

A constant speed propeller is a variable pitch propeller that adjusts the pitch of the propeller blades automatically to maintain a certain RPM. … Too much pitch in a propeller creates drag and limits power, while too little pitch forces the aircraft engine to run faster to reach the desired speed.

What should you avoid with a constant speed prop?

To avoid overpressurizing the cylinders, always move the propeller control forward (higher rpm) before increasing manifold pressure, and always reduce the manifold pressure (the throttle) before reducing propeller speed.

How does a variable speed prop work?

So how do variable pitch propellers work? … A variable pitch propeller can be partially rotated along its longest axis to take a bigger bite of air as necessary. In this way, the pilot can manually adjust the propeller pitch so the propeller always maintains the most efficient flow of air around it as it operates.

How is engine operation controlled on an engine with a constant speed propeller?

How is engine operation controlled on an engine equipped with a constant-speed propeller? The throttle controls power output as registered on the manifold pressure gauge and the propeller control regulates engine RPM.

What is the primary advantage of a constant speed variable pitch propeller?

What is the primary advantage of a constant-speed (variable pitch) propeller? To obtain a pitch setting that is suitable for each flight situation and power setting. Why does the blade angle of a propeller change from root to tip? To compensate for the increased velocity of the blade tip.

Why is it called a constant speed propeller?

Why Is It Called Constant Speed? First off, the propeller doesn’t always operate at the same speed. It just means that you can select the RPM you want for a given situation. … You can pull the RPM back by increasing the blade angle, making your engine more fuel efficient.

What are the three conditions of a constant speed propeller?

During flight, the speed-sensitive governor of the propeller automatically controls the blade angle as required to maintain a constant r.p.m. of the engine. Three factors tend to vary the r.p.m. of the engine during operation. These factors are power, airspeed, and air density.

What is the source of oil for constant speed propeller operation?

The oil from the governor is supplied to the propeller and hydraulic piston through a hollow engine shaft. Increasing the volume of oil within the piston and cylinder decreases the blade angle and increases propeller rpm. If governor-supplied oil is lost during operation, the propeller increases pitch and feather.

Article first time published on

What is the difference between a fixed pitch and a constant speed propeller?

As opposed to fixed-pitch propellers, which only operate at their optimal efficiency in one stage of flight, constant speed propellers can provide peak performance at each phase of flight, from takeoff to landing. … For example, you may want a higher RPM for increased takeoff power and a lower RPM for cruise flight.

Why does RPM increase in a dive?

When you pitch down, you change induced drag, i.e. the airflow is resisting less. You have instantly removed hydrostatic load from the prop, so the engine RPM instantly increases.

What is a constant speed?

Definition: When the speed of an object remains the same – it does not increase or decrease – we say it is moving at a constant speed. constant speed.

What is a constant speed governor?

Constant-speed operation means engine operation with a governor that automatically controls the operator demand to maintain engine speed, even under changing load. Governors do not always maintain speed exactly constant. … For such engines, the governor setting is considered an adjustable parameter.)

What happens when a prop governor fails?

Governor Failures—Overspeed Wild changes in prop rpm in flight can signal loss of governing control, forcing the blades into the fine or high-rpm pitch settings. When this happens, get the engine speed down before it does any damage.

How does a feathering prop work?

With a feathering prop, the blades are symmetrical and rotate around a central pivot point and offer as much thrust in reverse as they do in forward gear — a boon for getting into a tight slip. When sailing, the blades align themselves with the flow of water, reducing drag.

What is an advantage of a constant speed propeller quizlet?

Constant – speed propellers are more efficient than fixed – pitch propellers because they: produce an almost maximum efficiency over a greater speed range. Why is a propeller blade twisted from root to tip? Because the blade angle of attack is dependent at any point on the ratio of the rotational speed to the TAS.

How do you find the pitch constant of a propeller?

Each radius of the blade can have a different pitch and therefore the pitch at r/R = 0.7 is often used as a representative value (the nominal pitch). The pitch ratio of a propeller is the mean pitch divided by its diameter.

How does the propeller overspeed governor on a turboprop engine decrease propeller RPM?

In overspeed condition, the valve allows oil to drain from the propeller and blade angle is increased due to counterweight and feather spring forces. This will cause a decrease in RPM.

What is the difference between a cruise propeller and a climb propeller?

The difference between a climb prop and a cruise prop is only a small difference in pitch. The difference between a land and a sea prop is only pitch—and sometimes diameter, because the seaplane sits higher off the surface.

Who invented the constant speed propeller?

11). He also served as the society’s president in 1941. Caldwell and Hamilton Standard went on to develop what would be the ultimate form of the variable-pitch mechanism, the constant-speed propeller, or the “automatic gearshift of the air.” Fig.

What automatically balances engine revolutions against propeller pitch?

On most ships this is achieved by installing a ‘combinator’ which automatically balances engine revolutions against propeller pitch, thus producing a saving in fuel and better propeller performance.

How does a propeller governor sense engine RPM?

A governor is an engine rpm-sensing device and high pressure oil pump. In a constant-speed propeller system, the governor responds to a change in engine rpm by directing oil under pressure to the propeller hydraulic cylinder or by releasing oil from the hydraulic cylinder.

What actuates the pilot valve in the governor of a constant speed propeller?

Centrifugal force of the governor flyweights is equal to the speeder spring force. What actuates the pilot valve in the governor of a constant-speed propeller? … By changing the load tension against the flyweights in the governor.

What is a disadvantage of a fixed pitch propeller What is their advantage?

The advantages of a fixed pitch propeller solution are that it is cost-efficient and robust. … The disadvantage of the fixed pitch propeller solution is that it has limitations in its area of use when it comes to, for example, loads, speeds and maneuverability.

What is the advantage of controllable pitch propeller over fixed pitch propeller?

Advantages Of A Controllable Pitch Propeller Higher propulsion efficiency than with a fixed pitch propeller, optimising speed and bollard pull performances. Better maneuverability: passing from “ahead” to “reverse” occurs smoothly and without dead time, simply through propeller pitch inversion.

Does RPM decrease with altitude?

As the airplane climbs into thinner air at higher altitude, the prop blades meet less air resistance and full throttle continues to develop near-redline rpm, though both horsepower and thrust decrease. Eventually, engine power is reduced so severely that rpm begins to fall.

How do you know if speed is constant?

If you are given a velocity function and it is constant, then the velocity is constant. If you are given a velocity graph and it is horizontal (blue and green lines below), then the velocity is constant. … If you are given an acceleration function or graph and it is zero (green line below), then the velocity is constant.

Is constant speed the same as average speed?

What is the difference between constant, instantaneous, and average speed? constant speed is where the speed is the same throughout and instantaneous speed is speed given at any moment and average speed is a total distance traveled divided by the amount of time it took to travel it.

Why are propeller blades twisted?

There is a twist along the length of a propeller blade because the blade speed is much higher at the tip than it is at the root. The twist is necessary to maintain a more or less constant angle of attack along the length of the blade.

What are the advantages of a variable pitch propeller?

By varying the propeller blades to the optimal pitch, higher efficiency can be obtained, thus saving fuel. A vessel with a VPP can accelerate faster from a standstill and can decelerate much more effectively, making stopping quicker and safer.
