How does a mini split system work

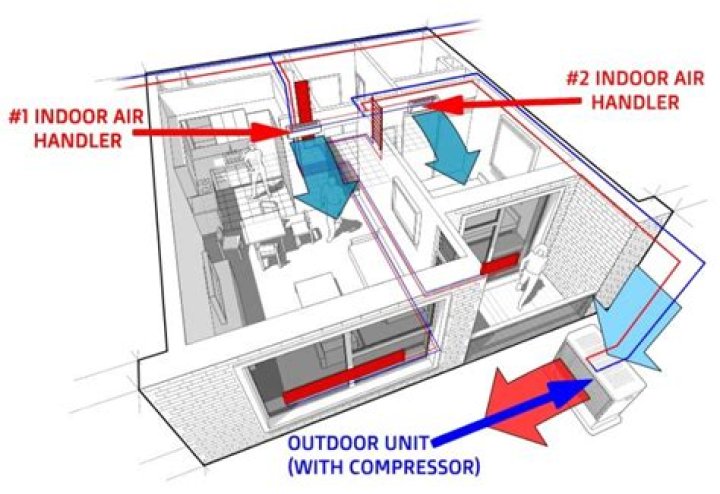

How Does a Mini Split Work? In a mini split system, you have individual indoor units located in each room or “zone.” Instead of pushing and pulling air to a central indoor unit, each room will handle its own cooling needs through an individual fan and evaporator unit.

Are mini split systems expensive to run?

The primary disadvantage of mini-splits is their cost. Such systems cost about $1,500 to $2,000 per ton (12,000 Btu per hour) of cooling capacity. … Too large a system is also more expensive to buy and operate. Some people may not like the appearance of the indoor part of the system.

Do mini split systems run all the time?

Do mini-splits stay on all the time? A ductless mini-split doesn’t run 24 hours a day. But, they are designed to run for much longer lengths of time than traditional HVAC systems. And, they’re often working in a low-power mode rather than at full capacity.

Do mini split systems heat and cool?

Mini-splits are heating and cooling systems that allow you to control the temperatures in individual rooms or spaces. … They can also be a good choice for room additions where extending or installing distribution ductwork is not feasible, and energy efficient new homes that require only a small space conditioning system.

Are mini split systems any good?

Mini-split systems are a good investment for many commercial structures as well. They allow spot heating and cooling that operates independently of a central system, allowing efficient, economical control for only those occupied areas.

Are mini splits Gas or electric?

There is usually no ductwork required, making installation relatively easy and unobtrusive. Rather than burning fuel to generate heat, a mini-split system uses electricity to move heat, similar to the way a refrigerator works, which requires less energy than generating heat directly.

How much do mini splits cost installed?

The cost range to install a ductless system is from $5,000 to $28,000 with $12,348 being the average cost. Ductless air conditioners (also known as mini-splits) give homeowners considerable control over the temperature of their home’s individual rooms and can slash a home’s annual cooling costs by up to 50%.

Can a mini-split heat a whole house?

A mini-split, when placed properly and when maintained well can heat and entire home and can do so efficiently to help save on your energy bill. On top of the size of the unit, you also need to keep efficiency in mind. These units are designed to be energy efficient and to deliver maximum punch with minimal effort.

How long will a mini-split last?

Ductless mini-splits – Like heat pumps, ductless mini-splits can provide both heating and cooling, with a typical life span of 10 to 30 years, except in coastal areas.

Should I leave my mini split AC on all the time?

A mini-split system uses less energy and keeps temperatures most consistent when it runs continuously, as in, 24/7. You also don’t need to turn the units on and off or adjust temperature settings when you’re away like you might with a central heating and cooling system controlled with a thermostat.

Article first time published on

Can you leave a mini split on?

Ductless systems are intended to stay on and running as part of a normal operating schedule. … It takes minimal energy for a ductless system to operate. If the unit constantly running is the only problem you’re having, then it’s not actually a problem at all. Your mini-split is simply doing its job as it was intended to.

Should I turn my mini split off at night?

It is not necessary as the heat pump operates so efficiently. However, you can safely turn the temperature down a few degrees at night and while you are away and raise it back up again when you wake up in the morning or when you come back home.

Why mini splits are bad?

However, it has been shown that mini-split installation can also have serious “leaks” as long line sets on the outside of the house can pick up heat in the summer and lose heat in the winter. The result can be significantly higher energy costs than would be expected based upon the rated efficiency of the system.

Do mini splits add value to home?

Ductless mini split installation can boost value by creating a more desirable home. While we don’t know the specific percentage by which a ductless air conditioning system can increase a home’s value, they do offer advantages that can help create the most comfortable home possible.

How much does it cost to have a ductless heat pump installed?

Generally, the cost to install a ductless heat pump is between $3000 to $5000. Several factors affect the cost of ductless heat pump installation, including: The model and efficiency of the ductless heat pump unit you select. Higher efficiency models typically cost more than lower-rated units.

How much does it cost to run a 12000 BTU Mini Split?

Mini Split AC Unit (BTU)WattageCost Per Hour12,000 BTU Mini Split AC3,516 WCosts $0.46 per hour14,000 BTU Mini Split AC4,102 WCosts $0.53 per hour18,000 BTU Mini Split AC5,725 WCosts $0.74 per hour21,000 BTU Mini Split AC6,154 WCosts $0.80 per hour

Do mini splits run off gas?

Mini-splits are particularly efficient when compared to other HVAC systems, because they “recycle” energy, to some extent. Also, they use electricity instead of burning gas, which can be advantageous.

Do you need a furnace with a mini split?

Yes, the initial cost to install a mini split system is through the roof, but the HVAC system eventually pays for itself when looking at long-term solutions! Not only this, but you are also saving on heating costs because you don’t have to use a furnace!

Do mini splits run on natural gas?

All the mini splits we have are totally electric. Even the Hyper Heat Olympus and Mitsubishi units don’t use any fossil fuel, natural gas, or propane.

What size breaker do I need for a mini split?

You need a minimum 15 amp breaker for mini split systems up to 24,000 BTU/2 tons. A 20 amp breaker is sufficient for 36,000 BTU/3 ton systems, and a 30 amp breaker meets requirements for larger units to 60,000 BTU/5 tons.

Can you install mini split on interior wall?

A mini split head can be installed on almost any wall within your home, but with some caveats. The least expensive installation will usually be on an outside wall. When choosing an inside wall for the head location you will invariably pay more in installation costs.

How do you hide mini split lines?

1. Hide Mini Splits in a Built-in Bookcase. There’s an abundance of great examples of this type of solution at Houzz.com. …
2. Build a Recessed Niche around a Mini Split. …
3. Tuck a Mini Split in a Corner. …
4. Build a Cabinet Around a Mini Split. …
5. Recess It in the Ceiling.

How long does a mini split install take?

But for those skilled professionals, installing a ductless mini split is usually a fast job that will go without complications. The average installation job takes one or two days. The actual length depends on the size of the system, in particular how many indoor air handlers need to be mounted inside the home.

How long does Freon last in a mini split?

The refrigerant in your HVAC system should last as long as the unit itself, or about 15 years. However, if your unit has a leak, an HVAC professional may need to add refrigerant to your mini-split after repairs have been completed.

Can you put central air in a house with no ductwork?

While any form of installing central air in a house without ducts will require some cutting and modifications, using a high-velocity or mini-split system can provide a much less intrusive, more economical solution in many cases.

How large of a room can a mini split cool?

Area To Be CooledCapacity Needed (BTUs Per Hour)450 to 550 square feet12,000 BTUs550 to 700 square feet14,000 BTUs700 to 1,000 square feet18,000 BTUs1,000 to 1,200 square feet21,000 BTUs

Does a mini split dehumidify?

Mini-split systems are capable of drying some of the added moisture during warmer months. Unfortunately, they are not designed to dehumidify in cold weather and will not pull moisture in the winter months. Dehumidification should run independently of cooling systems to ensure proper moisture removal.

How does a mini split sense temperature?

Mini splits do have an internal thermostat that reads room temperature. But, they do not have a wall thermostat like other heating systems. Instead, mini splits are usually controlled using an LCD remote. This works when you’re at home and the remote is nearby (and not lost in the couch cushions!).

Do mini splits ever turn off?

A mini split does not turn on and off a few times every hour, like conventional central air conditioning. Instead, it runs almost constantly. But, it does so silently and without using much electricity. This process keeps your bills low and your home more comfortable.

Are mini splits good for garages?

It turns out that a mini split air conditioner is an excellent choice for heating and cooling a garage. Mini splits are very efficient and they operate incredibly quiet. Mini splits are a space saver because they don’t require ducts and they are mounted up high on the wall.

Can you mix brands of mini splits?

For a split system, use matching equipment from the same manufacturer. Do not mix and match. Yes, technically, you might be able to get them to work, but it’s an absolutely terrible idea for a lot of reasons. Just don’t do it!
