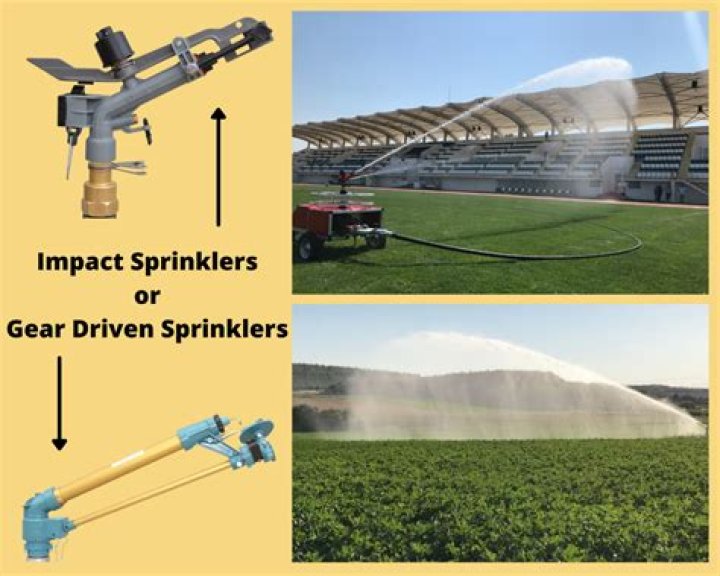

How does an impact sprinkler work

The sprinkler head pivots on a bearing on top of its threaded attachment nut. … The sprinkler arm is repeatedly pushed back into the water stream by a spring. The arm’s striking the water stream scatters the stream and re-orients the flow slightly, enabling a uniform watering area around the sprinkler.

How do impact sprinkler work?

The sprinkler head pivots on a bearing on top of its threaded attachment nut. … The sprinkler arm is repeatedly pushed back into the water stream by a spring. The arm’s striking the water stream scatters the stream and re-orients the flow slightly, enabling a uniform watering area around the sprinkler.

How far do impact sprinklers spray?

LARGE SPRAY DISTANCE – The water sprinkler can reach a spray distance of 12-15 meters (40-49 feet) and an area of up to 7542 square feet. No need to worry about the plants at the end of your lawn being left out!

Why do impact sprinklers stick?

Water pressure that is either too low or too high can cause sprinkler head jamming. When water pressure dips below acceptable limits, the sprinkler head may get stuck at one side of its arc or it may not move at all. If water pressure is too high, it may also cause the sprinkler to stop or jam.

Why do impact sprinklers stop working?

Through many years of experience, we have found that conditions which most often interfere with the proper operation of impact sprinklers are the use of any lubricants (other than water), low water pressure, foreign materials in the irrigation water, and excessive damage or wear to sprinkler parts.

How long should I water my lawn with an impact sprinkler?

How Long Should I Water at a Time? A watering session should be long enough to soak the area sufficiently so all the roots receive a beneficial drink. Sprinklers should be set to run for about 30 to 35 minutes at a time twice a week. Your goal is at least 1″ of water a week for your lawn.

How much pressure does an impact sprinkler need?

The optimum operating pressure for most residential sprinkler heads is between 30 and 50 pounds per square inch (PSI). With correct water pressure, each head will perform the way they were designed, and the result will be even spray-patterns and efficient use of water.

How long should you hand water lawn?

On average, it will take 30 minutes to get a half inch of water. So, 20 minutes, three times per week will give a lawn about an inch of water. This formula works best with healthy, well-cultivated soil.

Where should impact sprinklers be placed?

Sprinkler heads should always be placed so that the sprays overlap—the distance one head throws should reach the head of the next sprinkler. This is called head-to-head coverage, and sprinklers should be placed equidistantly in each zone to achieve it.

How do you fix a sticky sprinkler head?

Lubricate the sprinkler head with spray lubricant if pushing it down with the water turned on had no effect. Spray the lubricant generously around the shaft and wait for it to soak for a minute. Then push and pull the head to loosen it. Turn on the water and check the sprinkler head operation.

Article first time published on

Why is my sprinkler getting stuck?

The most common cause of a stuck sprinkler head is dirt and debris. If dirt, rocks, leaves, or grass gets caught between a sprinkler body and the sprinkler riser, it can clog up the works and stop the riser from sliding back into the body. Resulting in a sprinkler head that won’t go down.

Why does my Rain Bird Sprinkler not rotate?

The Reason for Not Rotating: The sprinkler will not rotate when there is an issue persisting in the head part. For example, it might have a problem with the water pressure, malfunctioning of the trip point, or the sprinkler head filled with debris. The head of the sprinkler can be removed and needs to clean the debris.

What is the best sprinkler for low water pressure?

1. Dramm ColorStorm Spinning Sprinkler. …
2. Gilmour Circle Pattern Spot Sprinkler. …
3. Orbit Garden Enforcer Motion Activated Sprinkler. …
4. Gardena ZoomMaxx Oscillating Sprinkler on Weighted Sled Base. …
5. GrowGreen Rotating Lawn Sprinkler.

How do I calculate sprinkler pressure?

1. Equation: Static pressure – friction loss +/– change in elevation = psi available to sprinkler.
2. Example: You measure your static pressure at 65 psi and your total flow rate from your spigot at 10 gpm.

How does a lawn sprinkler head work?

The sprinkler heads work on a pressure system that when the water goes through the pipe, it pushes them up above the ground. When the water pressure stops, they retract back down to ground level. Sprinkler heads in a garden are usually a raised-head type.

Why won't my sprinkler go back and forth?

If the water level is too low, the distribution bar on an oscillating sprinkler may be unable to move at all, or it may move very slowly to the end of the cycle, then be unable to move past the pivot that sends it back in the opposite direction. (This varies a lot between models.

Why is it bad to water grass at night?

While watering during the day causes water to evaporate too quickly, watering in the evening allows water to cling to the grass for too long. Overnight, the water will continue to rest in the soil, around the roots, and on top the foliage, which will encourage it to rot, develop fungus, and attract insects.

Is it bad to water grass at night?

“A wet lawn at night is the perfect condition for fungus to grow. Along with cutting grass too short, watering at night is about the worst thing you can do to a lawn.” As a general rule, you should water long enough to moisten the soil down to about 6 inches, which is the average depth of a healthy grass-root system.

How long do you leave a sprinkler in one spot?

Divide the total weekly watering time by the watering frequency to determine how long you need to run your sprinklers. If you need to water your grass for 40 minutes in total and you decide to water your lawn two times a week, you should let your sprinklers run 20 minutes each watering session.

How many sprinkler heads can you put on one line?

At different pressures, the sprinkler head and nozzle will consume different amounts of water. For example, at 35 pounds per square inch (PSI) the 5000 Series Rotor using the 3.0 nozzle will use 3.11 gallons per minute (GPM). If your home’s water capacity was 10 GPM, you could place 3 heads per zone.

How deep are sprinkler lines?

Basic Depth Requirements In most areas, burying the pipes 8 to 12 inches below the surface is adequate. This measurement is from the top of the pipe to the surface of the soil, which means your trenches must be slightly deeper to accommodate the pipes.

How much should a sprinkler head overlap?

Sprinklers are intentionally designed to require 100% overlap of watered areas. That means each sprinkler throws water ALL the way to the next sprinkler in each direction. READ THAT AGAIN! That’s right, 100% overlap of watered areas is REQUIRED or you will get dry spots!

Should I water my lawn after mowing?

When to Water After Mowing You can safely water your lawn after mowing whenever it needs moisture. … Watering in the middle of a summer day can cause the water to evaporate from the landscape quickly. To avoid these problems, mow your dry lawn early in the morning and water immediately afterward.

What does overwatered lawn look like?

Signs of Overwatering the Lawn Dying patches of grass can also signal overwatering issues. Other symptoms include an abundance of weeds like crabgrass and nutsedge, thatch, and fungal growth like mushrooms. Runoff after irrigation is another sign, as well as yellowing grass.

Does watering grass in the sun burn it?

Yes, there is a right way to water your lawn. Long, less frequent watering is more effective than daily watering that leaves water droplets on grass blades that then reflect the sun, burning your grass.

Why my sprinklers don't pop up?

— When a sprinkler head is clogged with dirt or other debris, it will soon fail to rise completely out of the ground. … — A leak in the water line can cause low water pressure and keep water from flowing to the sprinkler head. If water doesn’t reach the sprinkler head, then it won’t pop-up out of the ground.

Why does my sprinkler head keep popping off?

Sputtering or coughing heads could be the result of a bad valve, pressure issues, or a crack in the head. The sprinkler head may also be clogged with debris. If your system has pop-up heads, check that they haven’t shifted out of position. If they have, this is an easy fix – simply readjust them back into place.

Why do pop up sprinklers leak?

A leak that seems to originate underground is most likely the result of a broken fitting where the sprinkler head is attached to the supply pipe. If the water seeps from the base of the extended riser while spraying, the gasket inside the riser body needs to be replaced.
