How does master cylinder work clutch

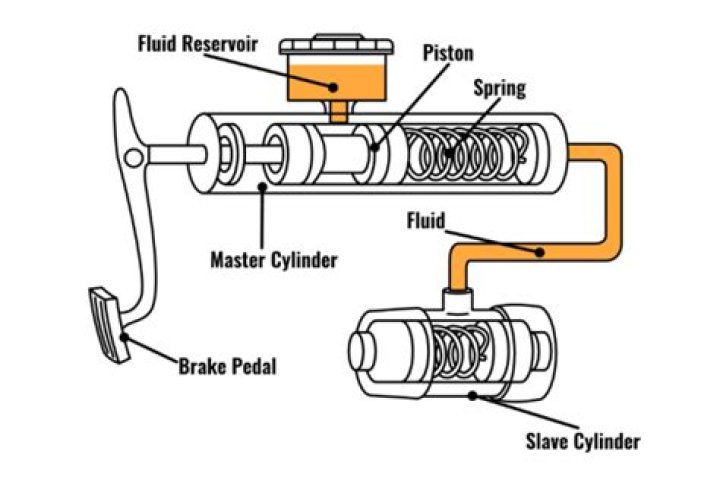

The master cylinder effectively works as a hydraulic pump, from which fluid is fed to the slave cylinders further down the line. … In the case of the clutch, the slave cylinder actuates the clutch fork to disengage the clutch friction plate from the flywheel, with a return spring reversing the process.

Does the master cylinder control the clutch?

When the clutch pedal is depressed, a moving piston in the master cylinder displaces a quantity of brake fluid into the slave cylinder. The displaced fluid pushes on a moving piston in the slave cylinder, which then acts on the clutch fork, which in turn, acts on the clutch release bearing to disengage the clutch.

What activates the clutch master cylinder?

Hydraulic fluid that is contained within the master cylinder becomes pressurized when the clutch pedal is lowered. The pressurized fluid triggers the slave cylinder and disengages the clutch. If the fluid level in the clutch master cylinder runs low, the clutch may fail to engage and disengage properly.

How do I know if my clutch master cylinder is bad?

When a master clutch cylinder goes bad, the clutch pedal will fall to the floor when pressed and will not rise again. When this happens, the driver will be unable to shift the car into any gear. The vehicle will not be drivable until the master clutch cylinder is replaced.

What happens when a clutch master cylinder fails?

If the master cylinder has completely failed, it will likely leave you stranded, unless you can figure out a way to limp home without the use of the clutch. This is especially dangerous if the brake and clutch share the same reservoir, as you could be left without brakes as well.

What causes air in clutch line?

A more-common cause of intermittent clutch action is air invading the hydraulic clutch release mechanism through a worn seal in the clutch master or slave cylinder. … If the pumping action improves the clutch function, the problem is more likely hydraulic.

How do you bleed a clutch with no pressure?

1. Fill reservoir,
2. Depress clutch pedal (person 2 or use a bar to block pedal down)
3. Open bleed valve, close as soon as pressure goes, ( a pipe into a jar is good to keep area clean)
4. Release pedal, wait 3 seconds then depress and hold again.
5. Repeat 3 and 4 as necessary untill you have a decent pedal.

How do you diagnose a clutch problem?

1. Slipping. This is exactly what it sounds like. …
2. Burning smell. A burning smell many times goes hand-in-hand with a failing clutch. …
3. Noises. …
4. Sticky or stuck pedal.

How do you test a master cylinder?

Apply pressure to the brake pedal until it comes to a stop and then hold the pedal there, sustaining the pressure. If moments after the brake pedal has come to its initial stop it begins to drop down again slowly, then the master cylinder is not functioning properly and will most likely need to be replaced.

How do I get the pressure back in my clutch?

Open the bleeder valve and allow the fluid to run out until it slows down, while your friend maintains pressure on the clutch pedal. When the fluid flow slows, while your friend still has pressure on the clutch pedal, close the bleeder valve. Let the clutch pedal back up and repeat the process.

Article first time published on

What fluid is used in clutch master cylinder?

Clutch fluid is really just brake fluid that is kept in the clutch master cylinder. When you depress the clutch pedal, this fluid flows from the clutch master cylinder into the slave cylinder. The pressure of the fluid is then used to engage the clutch, which allows you to change gears.

How do you bleed a clutch master cylinder?

1. 1) Prepare to Bleed the System. The first thing you need to do is locate the clutch slave cylinder of your vehicle. …
2. 2) Open the Bleeder Valve and Purge Air. …
3. 3) Close the Bleeder Valve. …
4. 4) Repeat Until No Air Remains. …
5. 5) Top Off Clutch Fluid Reservoir. …
6. 6) Test Clutch Pedal. …
7. 7) Clean Up.

Why does my clutch feel spongy?

SPONGY CLUTCH PEDAL If your clutch pedal feels soft or ‘spongy’ at any point as you press it to the floor, it’s a sign your clutch fluid is low. That spongy, inconsistent feeling is due to air in the clutch line from the master cylinder to the slave cylinder.

Why is my clutch losing pressure?

If it’s the clutch slave cylinder, it’ll build up pressure then slowly leak out. If it’s the lining, you’ll either see a squirt coming out and should see a small puddle somewhere, or it will leak the pressure slowly. There’s a lot of pressure in the system.

Why is my clutch not fully engaging?

A clutch that doesn’t engage fully, or slips under heavy load, is the normal failure mode of a worn out friction disc of pressure plate that has lost its tension. … The sudden onset of a slipping clutch usually indicates that an oil leak, or something else has contaminated the friction surfaces.

What causes a clutch not to release?

Frequent causes why the clutch doesn’t disengage correctly include faults in the release system (clutch release bearing, slave cylinder, clutch lever), a jammed pilot bearing, or non-compliance with important installation requirements.

How do you check the pressure on a master cylinder?

Use a screwdriver to press and hold the plunger in the rear of the master cylinder. The plunger should be very firm, if not immovable, past a few millimeters. If the plunger keeps moving in, this indicates a fault of at least one of the internal seals.

Can a bad master cylinder cause brakes to lock up?

Brake Issues The mechanic will start by working up your brake system. Caliper piston problems, master cylinder issues and a variety of other problems can cause your brakes to lock when driving normally.

How do you know if your clutch is dragging?

1. Hard starting.
2. Vehicle movement during starting.
3. Hard shifting.
4. Hard shifting in high rpm.
5. Gear clash during shifting.
6. Engine stalls (on severe cases)

How do you know if your clutch is chattering?

You can check for clutch chatter by starting the engine, depressing the clutch completely, and shifting the transmission into first gear. Rev the engine and then slowly release the clutch pedal to check for chatter as soon as the pedal begins to engage.

Can you mix DOT 3 and DOT 4?

Yes, DOT 3 brake fluid is compatible with DOT 4 brake fluid. However, DOT 4 offers a higher boiling point.

Is DOT 4 brake fluid same as clutch fluid?

Tips to make sure you’re getting good quality clutch fluid: Choose a well-respected brand of DOT-4 brake fluid. Don’t be fooled by “clutch fluid” labels on higher priced bottles. It’s the exact same thing as what’s in the brake fluid bottle.

What is the difference between DOT 3 and DOT 4 Clutch fluid?

The primary differences between the two include the following: DOT 3 brake fluid will absorb less water than DOT 4 from the air over time, meaning you’ll need to have your fluid changed less frequently. DOT 4 brake fluid has higher dry and wet boiling points, making it safer for higher temperatures.

Will a clutch self bleed?

When the clutch master cylinder pressurizes the fluid in the lines, the throwout bearing ram expands, pushing on the clutch diaphragm, disengaging the clutch. … This hydraulic bearing from a 2009 Dodge Challenger is a self-bleeding unit. When replacing it or if the master goes dry, you simply pump the pedal to bleed it.

Does gravity bleeding a clutch work?

gravity bleeding doesn’t work, even on brakes, because air moves up through brake fluid, and only pressure (of the brake pedal) can move enough fluid down and out taking air with it. the easiest way i bled my clutch system after replacing the master cylinder was using a vacuum pump bleeder, 40 bucks or cheaper.

Does a clutch need oil?

Most car clutches are so called dry clutch types, that means that the components of the clutch are working in air and not in the engine oil. So if there is too little or no oil in the engine, this may for sure damage the engine sooner or later, but it may not affect the operation of the clutch.
