How far can timber cantilever

The distance your joists can safely cantilever or overhang a drop beam is determined by the size of the joists, the wood type and grade of the lumber and the spacing between joists. Many building departments limit joist cantilevers to 24″ maximum.

How far can a beam cantilever past a post?

The American Wood Council’s Wood Frame Construction Manual states that beams can generally cantilever up to 1/4 their span over a post.

How far can I cantilever my deck?

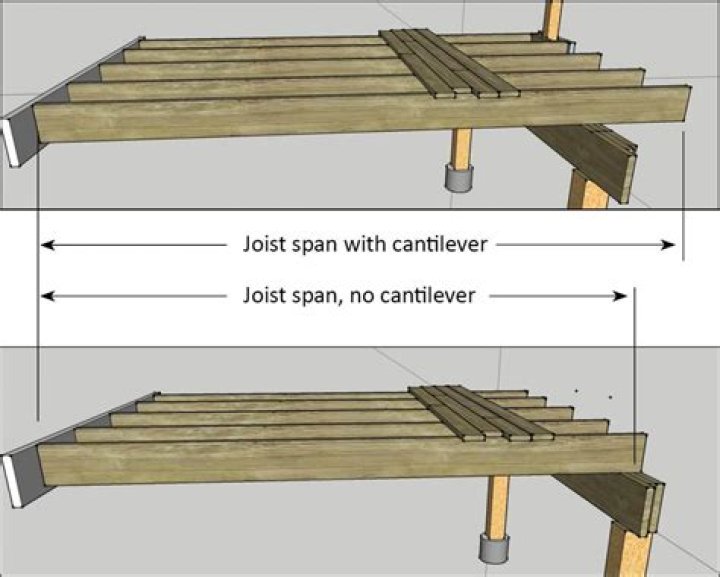

According to the new span tables and IRC provisions, cantilevers can extend up to one-fourth the backspan of the joist. This means that joists, such as southern pine 2x10s at 16 inches on-center, spanning 12 feet are allowed to cantilever up to an additional 3 feet (see illustration, below).

How far can a 2x6 cantilever without support?

Looking at the table below, we see that 2×6 floor joists can be cantilevered up to 2 feet and 6 inches (2′-6″) when the joists are spaced 16″ apart. The table also indicates that we need to keep the length of the joist that is not cantilevered between 4′-0″ and 6′-6″.

How far can you cantilever a house?

Upper level bump-outs require additional support from below the bump-out or they may be able to be cantilevered. Cantilevering limits the depth of the bump-out to two or three feet.

How far can a glulam cantilever?

Live load deflection is limited to L/360. Cantilever deflection is limited to 2L/180. Minimum bearing length is 1 3/4″ at ends for simple span, except in shaded area requires 2 1/2″ bearing.

How far can decking overhang?

The edge of decking should never overhang more than one-third of the decking material. For your standard 5.5” decking, that is 1 ¾” overhang.

Can you cantilever floor trusses?

Open-web floor trusses provide superior cantilever distances. Far greater than EWP and conventional framing. Cantilevers can include built-in details such as dropped top chords for balcony decking. Open-Web floor trusses can support greater concentrated loads to carry bearing walls and roof loads from above.

How far can 2x6 deck boards overhang?

So, for example, a 2×6 deck board could easily extend 11/2 inches beyond the edge of the supporting joist.

How far can a 2x6 span overhang?

The maximum distance a 2×6 can span, according to the 2018 IRC, for a floor joist, is 12′-6”, ceiling joist 20′-8”, rafter 18′-0”, deck board 24”, deck joist 9′-11”, deck beam 8′-3”, and 6′-1” as for header. Always check the codes for determining factors or consult a Structural Engineer.

Article first time published on

How much weight can a cantilever deck hold?

Decks are assumed to weigh 10 lbs per square ft, and support a live load of 40 lbs per square ft, for minimal design standards.

How far can you cantilever a balcony?

How far can beams cantilever?

*Beams may cantilever at each end up to ¼ of the of the actual beam span. For example, a 16′ beam span can cantilever a maximum of 4′.

How far can you cantilever with a exterior wall?

The recommended maximum extension for a cantilevered exterior deck is four feet. In this situation, 2X joists should extend back into the floor at least eight feet, using a recommended 2:3 ratio. It is possible to extend beyond four feet but each situation must be examined and analyzed for structural capacity.

How far can floor trusses cantilever?

Deck Joist Cantilever Rules and Limits The distance your joists can safely cantilever or overhang a drop beam is determined by the size of the joists, the wood type and grade of the lumber and the spacing between joists. Many building departments limit joist cantilevers to 24″ maximum.

How far out can a bump out go?

If your house’s finished floor is above the grade of the landscape outside, your contractor can build a bump out of up to about 3 feet deep, and as long as 10 to 12 feet. That may be enough to add an eating area to your kitchen or a separate tub and shower to your master bathroom.

Should a deck have an overhang?

When installing decking boards, be sure to allow for enough overhang to cover the fascia board and whatever additional amount you prefer. … This means the installed deck boards should have at least 1.75 to 2.75” overhang before the fascia is installed.

How far can a bearer cantilever?

As the line of support (i.e. piles and bearer) is 2.1 m from the house, according to NZS 3604 Table 7.1(b) (2 kPa floor load and wet in service), 140 × 45 mm joists may be used, and Table 7.2 for cantilevered joists allows a cantilever of up to 1150 mm.

Can you attach a deck to a cantilever?

Chuck Lockhart A deck ledger cannot be attached to cantilevered house framing. … Install a beam with posts and footings along the house end of the deck, just as you would at the outside of the deck. The beam can be built into the floor system—say a double or triple rim joist—or it can be placed beneath the deck joists.

How far can a 4x8 glulam beam span?

In large open spaces, glulam beams can span more than 100 feet. One of the greatest advantages of glulam is that it can be manufactured in a wide range of shapes, sizes and configu- rations.

Why is glulam stronger than plain timber?

Glued laminated timber, also called Glulam, is a type of structural engineered wood product comprising a number of layers of dimensional lumber bonded together with durable, moisture-resistant structural adhesives. This generally makes Glulam more stable than traditional timber. …

How far can 4X10 beam span?

Joist SpansDouglas Fir-Larch, Hem-Fir, Spruce-Pine-Fir, Redwood, Cedars, Ponderosa Pine, Red Pine4X108′-4″4X129′-8″3-2X66′-5″3-2X88′-3″

How much should a T Rex overhang?

Trex is a popular composite material with a maximum overhang of 102mm or around 4 inches. Between one and two inches of deck board overhang is ideal when you attach an outer fascia board, or at least 1 ¾” to 2 ¾” of overhang before installing the fascia.

How far can TJI joists cantilever?

TJI® joists are permitted to be cantilevered up to 1/3 the adjacent span if not supporting concentrated loads on the cantilever. Cantilevers exceeding 4 feet may require special consideration.

Can you cantilever joists?

Or you can use some clever engineering: cantilever the joists. Instead of a girder at the end of the joists, you’ll need to put a beam under the joists, so they can extend past that support. This framing style is called post and beam, and the overhang is a cantilever.

Are 2x6 strong enough for deck joists?

For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections. 2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. … Most decking is not strong enough to support longer spans than 16″.

How far can a 2x8 beam span without support?

Using this rule, a 2×6 will span 9 feet, a 2×8 will span 12 feet, and a 2×10 will span 15 feet. As you can see, the larger the depth, the longer the span.

How far can rafters span?

Maximum Span (ft – in)Nominal Size (inches)Rafter Spacing, Center to Center, OC (inches)Lumber Grade2 x 101625′2420′ – 9”2 x 121233′ – 6”

Can I put above ground pool on deck?

You can place a pool on a wooden deck if the construction takes into account several factors. Of course, pools are very heavy. And a lot of water will be splashed, poured and dripped on your wooded deck, potentially weakening it over time.

How much weight can a 10x12 deck hold?

Deck SupportBase FootprintSupported Weight10″ Patio Deck Block0.69 sqft1380 lbs12″ Patio Deck Block1.00 sqft2000 lbs16-in Bullnose Concrete Block1.78 sqft3 560 lbs23″ x23″ Concrete Patio Stone3.86 sqft7720 lbs

How far should posts be on a deck?

Layout and Footing Locations In general, posts should be spaced no more than 8 feet apart. Some builders position them every 4 feet for a completely rigid frame. The maximum distance between footings is determined by the size of your joist material.
