How is the IPv4 header checksum calculated

To calculate the checksum, we can first calculate the sum of each 16 bit value within the header, skipping only the checksum field itself. Note that these values are in hexadecimal notation. To obtain the checksum we take the ones’ complement of this result: b861 (as shown underlined in the original IP packet header).

How is IPv4 header checksum calculated?

To calculate the checksum, we can first calculate the sum of each 16 bit value within the header, skipping only the checksum field itself. Note that these values are in hexadecimal notation. To obtain the checksum we take the ones’ complement of this result: b861 (as shown underlined in the original IP packet header).

How is checksum packet calculated?

1. Add all bytes of the packet, except the start delimiter 0x7E and the length (the second and third bytes).
2. Keep only the lowest 8 bits from the result.
3. Subtract this quantity from 0xFF.

Why is the IP header checksum calculated at every router?

Because the IP header (which this checksum covers) changes on every hop due to the TTL (in the case of IPv4) or the Hop Limit (IPv6) changes on ever hop. And in the case of source routing (one of the IPv4 options), the destination address can change too.

How is TCP checksum calculated?

The CheckSum of the TCP is calculated by taking into account the TCP Header, TCP body and Pseudo IP header. Now, the main ambiguity that arises that what is how can checksum be calculated on IP header as IP comes into the picture in the layer below the Transport Layer.

How is checksum calculated in ICMP?

You split the ICMP header and data into 16 bit words (using 0x0000 for the checksum field), get the sum of these words and then the ones complement of the sum. This is then inserted into the checksum field.

How UDP checksum is calculated?

The basic idea is that the UDP checksum is a the complement of a 16-bit one’s complement sum calculated over an IP “pseudo-header” and the actual UDP data. The IP pseudo-header is the source address, destination address, protocol (padded with a zero byte) and UDP length. … Next is to add in the protocol and UDP length.

At what offset of the IPv4 header is the header checksum field?

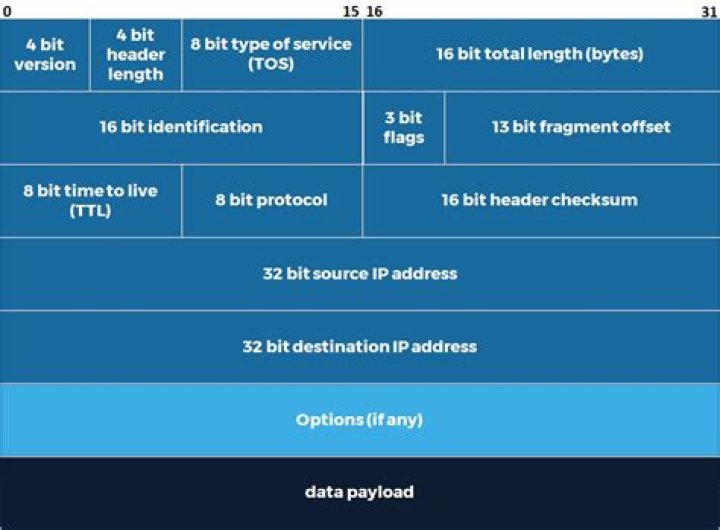

byte\bit offset0–316–184IdentificationFlags8Time to LiveHeader Checksum12Source IP Address16Destination IP Address

Does the IP header checksum in IPv4 need recalculation at every router?

If you look in IPv4 there is in the header a TTL. Every router decrements the TTL (in v6 its called “hop count”). As such every router needs to recalculate the checksum as well.

What is the minimum number of bits for which the checksum from the IPv4 header will detect errors sucessfully every time?

Header Checksum: this 16 bit field is used to store a checksum of the header. The receiver can use the checksum to check if there are any errors in the header. Source Address: here you will find the 32 bit source IP address.
