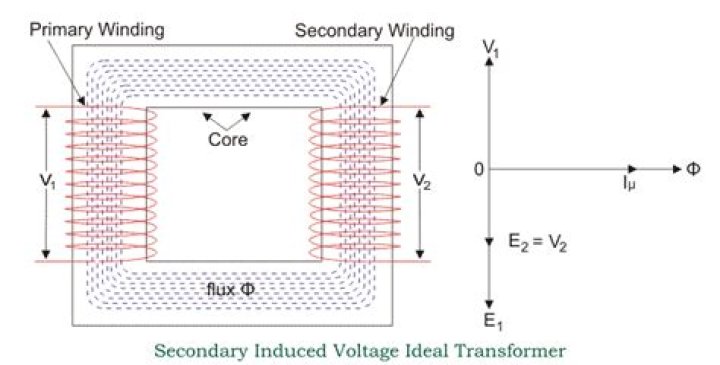

How is voltage induced in the secondary winding of a transformer

When current is reduced, the magnetic field strength reduces. When the magnetic lines of flux flow around the core, they pass through the turns of the secondary winding, causing a voltage to be induced into the secondary coil.

What induces voltage in the secondary for a transformer?

When a transformer primary has alternating current flowing in the conductor, magnetic flux surrounds the conductor in proportion to the amount of the current. The expanding and contracting flux cuts the conductors in the secondary and induces a voltage in the secondary.

What is secondary voltage in transformer?

Secondary voltage is the coil winding supplying the output voltage. The output voltage of a transformer varies some with varying load resistances, even with a constant voltage input.

How is electric current induced in the secondary coil of a transformer?

An alternating current passes through a primary coil wrapped around a soft iron core. The changing current produces a changing magnetic field. This induces an alternating voltage in the secondary coil. This induces an alternating current (AC) in the circuit connected to the secondary coil.

How output voltage is produced at the secondary coil?

The two coils are called the primary and secondary coils. In normal use, the input voltage is placed on the primary, and the secondary produces the transformed output voltage. … Since the input voltage is AC, a time-varying magnetic flux is sent to the secondary, inducing its AC output voltage.

What is it called when a current is induced in a secondary coil?

What is it called when a current is induced in a secondary coil by simply alternating the current in the primary coil? Mutual Induction.

How is induced current in secondary coil related to the primary coil?

The primary coil induces the magnetic field which is under the change once the current changes, the iron core later increases the “strength of the magnetic field”. … Hence in this way induced current in a secondary coil related to current in a primary coil.

What is the secondary voltage of a step down transformer?

Step-Down Transformer Application Power-generation plants produce electricity at 20 kV, which is then stepped up to 440 kV for long-distance distribution. When received at a local distribution station, the voltage is reduced to 11 kV using a step-down transformer.

How does secondary voltage increase?

So if you want a 12V secondary you wind 12 turns; 24V requires 24 turns, etc. If you want the transformer to increase voltage, you have to add more turns. The one volt per turn transformer would make 200 volts with 200 turns; 240 volts with 240 turns etc.

What are secondary voltages?

Secondary Voltage means the level of voltage at facilities at which electric power is taken or delivered, generally at a level between 120 volts and 480 volts, but always less than 2 kV. Sample 1. Sample 2. Sample 3. Secondary Voltage means voltage less than 600 volts.

Article first time published on

How do you calculate current in a secondary transformer?

In other words, n1/n2 = i2/i1, where i1 and i2 are the currents through the two coils. Continuing with the above example, if the current through the energized coil is 5 amps, then the current through the secondary coil is 200/100 * 5 = 10 amps.

What is the voltage in volts in the secondary winding during the dwell period?

The amplitude of this voltage depends on the turns ratio (commonly 100:1). A 300V primary voltage, therefore, will be 30 000V in the secondary winding. The voltage will only build until the break down voltage of the spark gap is reached – the firing voltage of the spark plug.

Why there is a voltage between the two terminals of the secondary coil?

The coils are not electrically connected. … the primary coil current produces a magnetic field, which changes as the current changes. the iron core increases the strength of the magnetic field. the changing magnetic field induces a changing potential difference (voltage) in the secondary coil.

How does the current is the secondary coil of a step up transformer compare to the current in the primary coil of the same transformer?

The voltage across the secondary coil is greater than the voltage across the primary. There are fewer turns on the secondary coil than the primary. The output power is greater than the input power. The current in the secondary coil is greater than the current in the primary coil.

What are the different ways to induce current in a coil?

• If a coil is moved rapidly between the two poles of a horseshoe magnet, then an electric current is induced in the coil.
• If a magnet is moved relative to a coil, an electric current is induced.
• By keeping it stationary and rotating a magnet inside it, the current in the coil can be induced.

Why is the direction of the induced current in the secondary coil opposite to the direction of the current in the primary coil?

The sign of the primary EMF is positive which opposes the increase in primary current. This resists the change of the core flux. The sign of the secondary EMF is also positive, which tends to create an increasing secondary current that is in the opposite direction compared to the primary current.

What is primary coil and secondary coil?

The primary winding is the coil that draws power from the source. The secondary winding is the coil that delivers the energy at the transformed or changed voltage to the load. Usually, these two coils are subdivided into several coils in order to reduce the creation of flux.

How is voltage induced in a conductor?

According to Farday’s law, a voltage is induced in a conductor by a changing magnetic field. A device that converts mechanical energy into electrical energy by rotating a coil of wire in a magnetic field. … The changing field then induced an alternating current in a near by coil with a different number of turns.

What is it called when a current is induced in a secondary coil by simply varying the current in the primary coil?

Faraday’s law tells us that a changing magnetic flux will induce an emf in a coil. … Changing the current in the first coil changes the flux through the second, inducing an emf in the second coil. This is known as mutual inductance, inducing an emf in one coil by changing the current through another.

How is induced voltage calculated?

To find the magnitude of EMF induced along the moving rod, we use Faraday’s law of induction without the sign: EMF=NΔΦΔt EMF = N Δ Φ Δ t . In this equation, N=1 and the flux Φ=BAcosθ. We have θ=0º and cosθ=1, since B is perpendicular to A.

How does a step up transformer increase voltage?

A transformer converts alternating current (AC) from one voltage to another voltage. It has no moving parts and works on a magnetic induction principle; it can be designed to “step-up” or “step-down” voltage. So a step up transformer increases the voltage and a step down transformer decreases the voltage.

How a transformer affects the voltage and current?

A transformer transfers power from the primary coil to the secondary coil. Since the power must stay the same, if the voltage increases, the current must decrease. Likewise, if the voltage decreases, the current must increase.

Why does a step up transformer increase voltage?

The higher the current in a cable, the greater the energy transferred to the surroundings by heating. … To reduce energy transfers to the environment, the National Grid uses step-up transformers to increase the voltage from power stations to thousands of volts, which lowers the current in the transmission cables.

What is secondary transformer?

A secondary winding is the winding of a transformer that receives its energy by electromagnetic induction from the primary winding. The secondary winding is facilitated with larger-gauge wire because of the increase in current, whereas the primary winding is made up of smaller-gauge wire due to less current conduction.

How does transformer step-down voltage?

How Does the Transformer Work? The concept of a step-down transformer is actually quite simple. The transfer has more turns of wire on the primary coil as compared to the turns on the secondary coil. This reduces the induced voltage running through the secondary coil, which ultimately reduces the output voltage.

How is a step-down transformer converted to a step-up transformer?

Suppose we have a step-down transformer that yields 100 Volt secondary voltage when 200 Volt input voltage is supplied. Turns ratio, Np/Ns= Vp/Vs = 200/100= 2. If we want to use the transformer as a step-up, the same 200-volt input voltage will produce 400 volts of stepped-up output.

What is primary and secondary voltage on transformer?

For this tutorial we will define the “primary” side of the transformer as the side that usually takes power, and the “secondary” as the side that usually delivers power. In a single-phase voltage transformer the primary is usually the side with the higher voltage.

What is the resistance between primary and secondary windings of the transformer?

In a transformer the coils are not electricaly connected therefore the resistance is ideally infinite. But an autotransformer does the same using a single coil as primary with one or more taps for secondary in different parts of the coil. In this case the resistance will ideally be ZERO, or a short-circuit if you will.

When a secondary number of turns are higher then transformer is called?

Explanation: When secondary number of turns are higher compare to primary, voltage induced in secondary windings will obviously high. Thus, this transformer is used for stepping up the output voltage by keeping frequency constant.

How do you convert primary voltage to secondary voltage?

The primary voltage is equal to the product of the secondary voltage and primary current divided by secondary current.

Why voltage of a transformer secondary Falls If load is connected?

Loading the secondary winding with a simple load impedance causes a secondary current to flow, at any power factor, through the internal winding of the transformer. Thus voltage drops due to the windings internal resistance and its leakage reactance causes the output terminal voltage to change.
