How tall is standard scaffolding

Scaffold tower can be erected in all shapes and sizes. The standard dimensions are 5 foot and 7 foot long. Reaching 5 foot high all the way up to 30 feet tall.

How tall is normal scaffolding?

In addition to base plates and a guardrail system, the main components of a scaffolding system are the frames and cross braces that you stack and combine end to end to make larger scaffolds. The most common frame size is 5 ft. wide and 5 ft. tall, but other sizes are available depending on your needs.

How is scaffolding height measured?

Measure from top of frame leg-to bottom of frame leg (without coupling pin). Measure the distance from the center of the top lock to the center of the bottom lock (where the cross braces attach). Measure the distance from the top of the frame leg to the center of the top lock.

What are the 3 types of scaffolds?

• Suspended Scaffolds.
• Supported Scaffolds.
• Aerial Lifts.

What is the minimum height for scaffolding?

The minimum guardrail height for scaffolds manufactured or first placed in service after January 1, 2000 is 38 inches. For all scaffolds, the maximum height is 45 inches.

What is the narrowest scaffolding?

Narrowest 600mm scaffold tower This can be used either on a stairway or as a standard tower.

What is bricklayer scaffold?

Brick layers scaffolding or Single scaffolding. In this type of scaffolding, a series of vertical members made of bamboo or timber (named as Standards), are firmly fixed into the ground in a row parallel to the building wall. The distance in between two standards is generally kept within 2.4 to 3 m.

What is a scaffold standard?

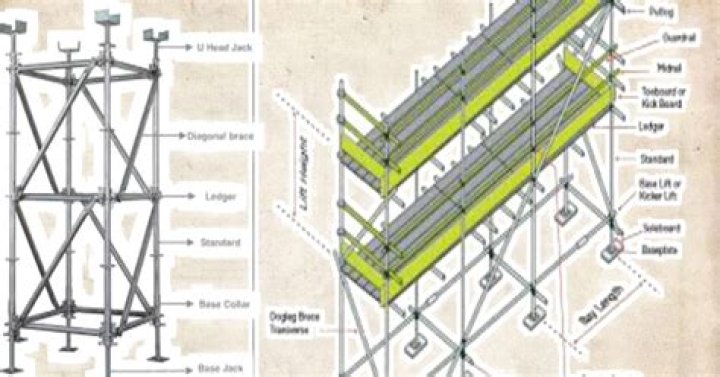

The key elements of the scaffolding are the standard, ledger and transoms. The standards, also called uprights, are the vertical tubes that transfer the entire weight of the structure to the ground where they rest on a square base plate to spread the load.

What is the maximum height of a rolling scaffold?

Model (not using outriggers)Total height* at which restraint is required4-foot (26 inches wide)over 8.668 feet6-foot (29 inches wide)over 9.668 feet

How do you calculate scaffolding?

Divide the total height measurement by the height of a single scaffolding section. This will determine the total number of rows of scaffolding the project will require. Multiply the number of rows by the number of columns to find the total number of scaffold sections necessary for the project.

Article first time published on

What is the height to base ratio for scaffolding?

Supported scaffolds with a height-to-base ratio over 4:1 must be kept secure with guying, bracing, etc. Scaffolds should be able to hold up to four times their maximum load. Inspections must be performed before each work shift. Employers must train all employees working at height on proper safety rules.

What is the minimum height for working at height?

Working at Heights — Any work at height of 1.8 meter or more from the ground level or floor. Elevated working positions where the hazard of a fall exists and where there is no physical protection such as handrails.

Can a ladder be used on scaffold?

In most instances, scaffolds should be capable of supporting at least four times its maximum intended load. Don’t use boxes or ladders to increase your work height. … Don’t use stilts unless the guardrails on the scaffold have been extended to a height that is equal to the height of the stilts.

Do scaffolders have to wear a harness?

Industry guidance requires scaffolders to wear and use a fall arrest harness when more than 4m above ground without a safe platform to stand on and edge protection in place.

What are the four types of scaffolding?

• Independent Scaffolding:
• Single Scaffolding:
• Double Scaffolding:
• Needle Scaffolding:

What is double height scaffolding?

Double Scaffolding Instead of the scaffolding being propped up against the wall, the scaffolding is instead double built — with two sides supporting the structure. Double scaffolding is often called “mason’s scaffolding” because it’s effective without damaging the wall or when the full wall must be exposed.

What is a scaffolding ladder?

A ladder jack scaffold is a system designed to perform activities, such as: installing building exteriors, trim, and finishes. … Triangle-shaped brackets called “ladder jacks” are attached to portable ladders, which are used on each side of a ladder jack scaffold to form a means of support for a platform.

How wide are scaffold towers?

Single Width Scaffold Towers (0.70m Wide x 2.00m or 2.50m Long)

How wide is a narrow scaffold tower?

NARROW WIDTH SCAFFOLD TOWER Taking up less space than standard scaffold towers, our narrow width scaffold towers are 0.715 meters wide. This allows you to fit into tight spaces with tower platform heights up to 8m.

What is the narrow tower?

Narrow Tower is specifically designed for awkward access situations and comes at only 500mm wide. The tower is lightweight to handle and easy to erect with an instruction manual. The equipment comes complete with runged climbing frames, outriggers and wheels as required to provide a safe working platform.

What is the 3 to 1 rule in scaffolding?

The 3 to 1 rule. The total working height of a freestanding scaffolding tower should be three (3) times the distance of the narrowest side of the base (if this is a measurement of outriggers, they must be set symmetrically about the tower). … Always check for overhead power lines before moving any scaffolds.

What is OSHA Standard for scaffold?

The standard requires employers to protect each employee on a scaffold more than 10 feet (3.1 m) above a lower level from falling to that lower level. What materials are unacceptable for guardrails?

Can a person ride on a rolling scaffold?

Do not ride on a rolling scaffold unless you meet certain conditions and requirements. Workers should follow OSHA standard 29 CFR 1926.452(w)(6) in regards to employees on moving scaffolds.

At what height is scaffolding required UK?

How high should the guardrails on a scaffold be? For construction work, the top guardrail should be a minimum of 950mm above the working platform and any gap between the top rail and the intermediate rail should not exceed 470mm.

What is the British standard for scaffolding?

BS 1139 is a British standard of scaffolding materials, certified and trusted in most of Europe, widely used in civil and building structure.

What is the minimum width of scaffolding platform?

It is recommended that the width of a working platform shall be a minimum of 600 millimetres wide and a scaffold which is used for the deposit of materials shall be a minimum of 800 millimetres wide. A scaffold used for the support of a higher platform should be at least 1.05 metres wide.

Is scaffolding measured in m2?

m2 of scaffold The Length x Height (to the top lift) measured in 1m x 1m squares. This method is not recommended for scaffolds where the Width is an important, changing factor, such as birdcages.

How do Scaffolders charge?

Scaffolding hire costs are normally charged per week. There is usually a fixed-term of rental, normally a minimum of either 6 or 8 weeks. … In this case, you may need the scaffolding for longer, so make sure to negotiate a per day or per week price with the contractor or scaffolder in advance.

Is scaffolding free standing?

There are two main types of scaffolding: Freestanding scaffolds, such as Independent towers, Independent tied scaffolds, such as independent towers tied to an adjacent structure.

How far should scaffold planks overlap?

All planking or platforms must be overlapped a minimum of twelve (12) inches and secured from movement. Scaffold planks shall extend over their end support at least six (6) inches but no more than twelve (12) inches.

What are the dimensions of scaffolding?

The standard size for a new scaffold board is a thickness of 38mm, a width of 225mm, and lengths going up to 3.9m (13ft). As timber goes, scaffold boards are fairly “chunky”, which is what gives them a wonderfully rustic and industrial aesthetic and feel.
