How wide is a scaffolding board

The standard size for a new scaffold board is a thickness of 38mm, a width of 225mm, and lengths going up to 3.9m (13ft). As timber goes, scaffold boards are fairly “chunky”, which is what gives them a wonderfully rustic and industrial aesthetic and feel.

How wide is a UK scaffold board?

With a standard dimension of 225mm wide by 38mm thick, all boards are available in lengths from 1.8m to 3.9m. Grade A and BSI British Standard boards are visually graded (marked VG) or machine graded (marked MG) and marked with the manufacturer’s code for traceability.

Can you get wide scaffold boards?

At 220mm wide reclaimed scaffold boards make the perfect plank for deep shelving.

How wide is a 5 board scaffold?

InfoDetailLength1.5MWidth225mmThickness36mmWeight7KG

What is the standard size of a scaffolding?

Single Wide Scaffold is approximately 29 inches wide so it can roll through standard doorways. Perfect for work in congested or narrow areas. Available in 6, 8, or 10 ft lengths. When properly braced extension sets can be added to increase the height of Single Wide Scaffold.

What is the minimum width of a scaffold plank?

1 Minimum width The minimum width of a scaffold plank shall be 220 mm. For timber planks, the minimum width shall be at a moisture content not exceeding 15 percent.

How wide is a 3 board scaffold?

Traditionally they are seasoned wood and come in three thicknesses (38 mm (usual), 50 mm and 63 mm) are a standard width (225 mm).

How many boards wide can a scaffold be?

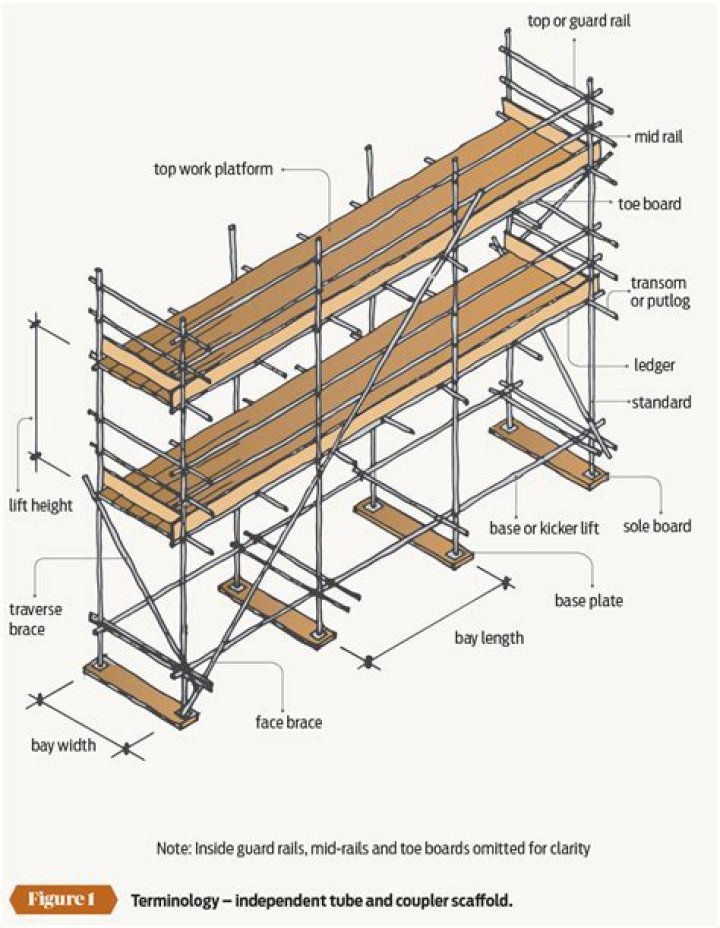

The platform widths of TG20 compliant independent scaffolds are 3-5 boards for the main platform with up to 3 inside boards which can be placed between the inside standards and the adjacent structure. One, Two or Three in inside boards cab be placed along the inside platform at the same level as the main platform.

Are all scaffold boards the same width?

The standard size for a new scaffold board is a thickness of 38mm, a width of 225mm, and lengths going up to 3.9m (13ft). As timber goes, scaffold boards are fairly “chunky”, which is what gives them a wonderfully rustic and industrial aesthetic and feel.

How thick the scaffold plank timber should be?

Traditionally, scaffold planks were solid-sawn lumber, often full-thickness 2x10s, as opposed to the 2-inch nominal thickness lumber (actual thick- ness, 11⁄2 inches) used for most construction needs.

Article first time published on

Can you use scaffold boards for flooring?

A cheaper option for flooring are used scaffold boards, at a fraction of the cost of reclaimed floorboards you get a lot more coverage for your money. With a bit of DIY knowledge, time and money and elbow grease the results are great.

Are scaffold boards pressure treated?

These are new scaffold boards which are freshly sawn by a machine, they are brown pressure treated to ensure their longevity. The boards are not banded. They are in great condition and can be creatively used.

What is the weight of a 13ft scaffold board?

InfoDetailLength3.9MWidth225mmThickness36mmWeight18KG

How wide is scaffolding pipe?

Scaffold tube should be made to EN39 and be galvanised steel. They should have a diameter of 48.3mm and a 3.2mm – 4.0mm wall thickness. Tubes should appear straight visually and not deviate by more than 15mm in any 3m length. This is where the tube has been used as a means of hitting another object.

Does scaffolding need to be attached to the building?

In general, most scaffolds need to be tied to an existing permanent structure. There are exceptions where there is a necessity for a scaffold to be designed without any ties. … Most scaffolds, however, require some form of tying arrangement, whether that’s a wall, a column or exposed steelwork.

How is scaffolding measured?

How are scaffolding measured? Measure the total length of the area to be prepared. Divide the total length by the length of a single scaffold section. This determines the total number of scaffolding supports the project will require.

What is a sole board?

Sole boards are used to protect the ground on scaffolding projects. Sole boards can also be used when the ground is a little soft, these sole boards add additional support to the load.

What is the minimum length & width of a sole plate?

The width and thickness of a timber sole plate shall be 200mm and 25 mm minimum. In place of timber soleplate, 10 mm thick steel plate or steel channel of size more than 200mm depth (ISMC 200) with flanges facing upward, may also be used as the soleplate.

How heavy is a 8ft scaffold board?

InfoDetailWidth225mmThickness36mmWeight11KGSpecificationBS2482

At what height must you start tying off a scaffold?

These standards state that these guys, ties, and braces must be used when there is a 4:1 height ratio (beginning at 20 feet) for supported scaffolds.

Can you erect your own scaffolding?

Because working at heights poses significant risks, both to those working on the scaffold and those below, we do not recommend that you attempt to erect a scaffold on your own, unless you are trained and competent in scaffold erection. … The safety of lives is too important to make scaffolding a DIY project.

Can you use a ladder on scaffolding?

In most instances, scaffolds should be capable of supporting at least four times its maximum intended load. Don’t use boxes or ladders to increase your work height. … Don’t use stilts unless the guardrails on the scaffold have been extended to a height that is equal to the height of the stilts.

How thick is a scaffold board?

It should be 225mm wide and 38mm thick. This goes under the baseplate, it can be from 450mm long to 4m long. It should be 225mm wide and 38mm thick.

Why do scaffold boards have end bands?

The end bands must be present at both ends of the scaffold board to protect the vulnerable end grain of the boards. They should extend around the edges of the board by at least 150mm for 38mm boards and at least 100mm for 63mm boards. Fungal decay, usually wet rot, is common in poorly stored scaffold boards.

What type of wood is used for scaffold boards?

Wood, such as fir or pine, is the most common material. High-quality wooden planks, such as Kennison Forest Products solid sawn scaffold planks or sure-lam LVL (laminated veneer lumber) scaffold planks, provide durable, safe planking solutions.

How wide is a 6 board scaffold?

FeatureSize / DetailsType of ComponentScaffold BoardApprox. Product Length (ft)6Approx. Product Length (in)72Approx. Product Width (in)22

Should scaffold boards be clipped?

scaffolders will sometimes tie down spare boards or incomplete scaffolds with a tube across at the end of a shift but this is never done on a complete scaffold , in my 10 years scaffolding experience all over the country on petro chem and nuke sites and offshore work , boards must be tied with clips or in some cases …

Should scaffolding be netted?

Netting on scaffolding may be used as either fall protection or to prevent debris falling from height. Netting should not be relied on as the sole means of preventing a fall from height.

What is the difference between a board and a plank?

is that plank is a long, broad and thick piece of timber, as opposed to a board which is less thick while board is a relatively long, wide and thin piece of sawn wood or similar material, usually intended for use in construction or board can be (basketball|informal) a rebound.

How far can a scaffold board span?

Support span – 1.2m max (for visually or machine graded boards 38 x 225). – 2.5m max (for visually or machine graded boards 63 x 225).

How many inches must the planks extend past their support?

All planking or platforms must be overlapped a minimum of twelve (12) inches and secured from movement. Scaffold planks shall extend over their end support at least six (6) inches but no more than twelve (12) inches.
