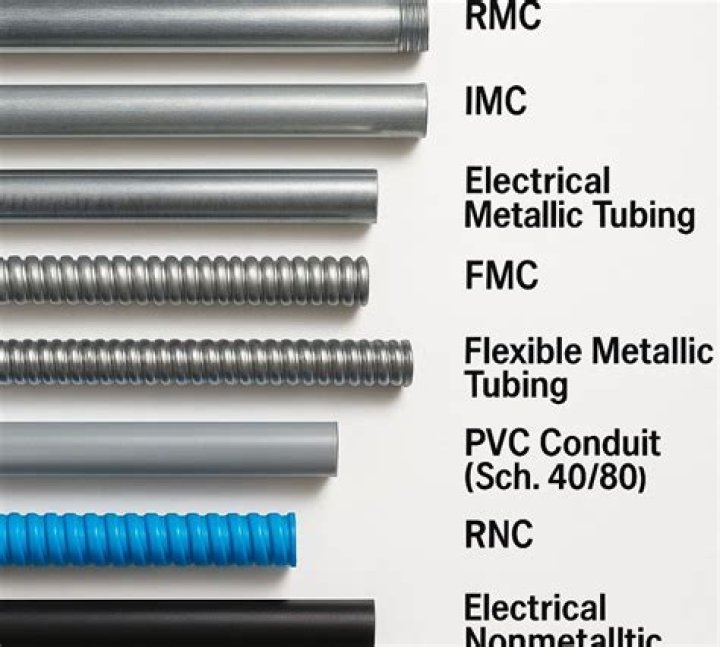

Is EMT conduit flexible

EMT (Electrical Metallic Tubing) conduit is a non-flexible, non-corrugated raceway designed specifically for electrical cables. Our EMT conduit is made of galvanized steel to prevent chipping, cracking and peeling.

Is electrical conduit flexible?

Electrical conduit may be made of metal, plastic, fiber, or fired clay. Most conduit is rigid, but flexible conduit is used for some purposes. Conduit is generally installed by electricians at the site of installation of electrical equipment.

Is emt conduit rigid?

Electrical Metallic Tubing—EMT EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.

Is conduit pipe flexible?

PVC Flexible Conduit Pipe Flexible Polyamide Conduit Pipe that is used for mechanical protection of cable and wire in tunnels. … Furthermore, our provided conduit can be availed in diversified specifications, as per the needs of our valuable clients. Features: Highly flexible.

What is the difference between EMT and rigid conduit?

EMT (Electrical Metallic Tubing) is thin-walled metal tubing that wiring is run through and is connected by various press fit couplings usually secured by a set screw. Rigid conduit is heavier gauge tubing that can be threaded and is used in heavier duty applications.

What is flexible non metallic conduit?

Type NM liquid-tight flexible non-metallic conduit is a general purpose conduit that offers excellent protection to wiring from abrasion, sunlight, mild acids, alkaline, and oils. Helically wound integral Type B construction; containing a spiral of rigid PVC reinforcement embedded within the PVC wall.

What is the flexible conduit?

Flexible Metal Conduit, is heavy-duty galvanized steel tubing that is installed with threaded fittings. It is typically used outdoors to provide protection from damage and can also provide structural support for electrical cables, panels, and other equipment. … Wire ducts protect and route electrical wires.

Is EMT conduit galvanized?

Electrical Metallic Tubing (EMT) unthreaded steel conduit features hot-galvanized construction to resist corrosion. It also offers easy bending, cutting, and joining during installation.

Is there a flexible PVC pipe?

Flexible PVC pipe in 2.5″ and larger sizes is available by the roll or 2.5″, 3″ and 4″ by the foot and sometimes in the clearance section. Black flexible PVC pipe is only approved for irrigation and pools.

Can you use EMT conduit outside?

Electrical Metallic Tubing (EMT) is lightweight steel tubing that is easy to install and can be bent or cut with the appropriate tools. … This rigid metal conduit is approved for all interior applications but can also be used outside.

Article first time published on

Is EMT conduit explosion proof?

The threaded connections allow the burning gas to cool as it escapes, so that any explosion would be confined to the inside of the conduit. This connection is not designed to prevent an explosion — full prevention is not possible — but the possibility of an explosion is mitigated.

What is an EMT conduit?

Allied Tube & Conduit® has been manufacturing Electrical Metallic Tubing (EMT) for over 50 years. … EMT conduit is a raceway solution which allows for future wiring changes and provides excellent mechanical protection to conductors and cables. EMT provides EMI shielding and is 100% recyclable.

How far can you bend EMT conduit?

National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”

Is conduit easy to bend?

You can bend conduit to fit many angles and work it around corners, under or over ceilings, and past other permanent structures. The hardest part of bending conduit is getting the proper measurements and applying just the right amount of pressure to make a good bend.

Is flexible conduit code?

You may use flexible metal conduit in any length as long as you follow the Code rules for support (Sec. 350-18) and grounding (Sec. 250-18).

What are the types of flexible nonmetallic conduit?

UL Flexible Conduit. Ex-Proof Coupling (UL 1203) LFNC-B (UL 1660) …
Flexible Metal Conduit. Galvanized Steel. Gal Steel, Water Proof (PAG Series) …
Braiding Conduit (EMC/EMI) Stainless Steel Braiding.
Flexible Electrical Conduit. Anti-static Type.

What are the flexible metallic conduit materials?

Flexible Metal Conduit (FMC) It is made by coiling self-interlocked aluminum or steel strips, which forms a hollow tube that wires can be pulled through. FMC comes in a standard wall (sometimes called full wall) thickness or a reduced wall thickness.

What is Type B flexible conduit?

Smooth flexible liquid tight non metallic conduit type B. XTRA FLEX® conduit type B offers the perfect combination of flexibility, lightweight and liquid tightness for a variety of applications and environments. Its smooth outer layer is sunlight and oil-resistant and approved for outdoor use.

Where are flexible conduit are needed?

Also, they are a cost-effective means of protecting wires. Thus, they are widely used by electricians. Flexible cable conduit protects the wires from catching fire or burning. In addition to commercial uses, they are ideal for outdoor residential applications as well.

How flexible is flexible PVC pipe?

An 8′ section of 4″ flexible pvc pipe can be bent to about 90 degrees by hand, more with some determination and power equipment. The 6″ by 8′ section can go to about 45degrees by hand, and 90 degrees with power equipment.

What is bendable PVC?

Flexible PVC pipe is commonly used in spa lines, air lines, pump lines and water lines, or anywhere that flexibility combined with the durability of PVC is required.

How long is EMT conduit?

When buying in retail, EMT conduits are typically available in sizes ½ through 4; and is available in 10′ to 20′ lengths.

Can EMT be used in wet locations?

EMT can be used in wet locations as long as the conduit is galvanized and you use all fittings that are identified for wet locations and protected from corrosion. EMT can be used in concrete as long as the fittings are identified for use. 358.10 Uses Permitted. (A) Exposed and Concealed.

Can you run EMT in concrete?

Electrical metallic tubing (EMT), elbows, couplings, and fittings can be installed in concrete, in direct contact with the earth, or in areas subject to severe corrosive influences where protected by corrosion protection and judged suitable for the condition [358.10(B)].

What is explosion proof conduit?

Explosion proof conduit sealing fittings restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures and construction of hazardous location conduit fittings.

Which raceways may be used in hazardous locations?

Rigid metallic conduit (RMC) is a dependable solution for electrical raceways in hazardous environments.

What gauge is EMT conduit?

Size and Type of Conduit14 AWG Wire8 AWG Wire1/2-inch EMT1233/4-inch EMT2261-inch EMT3591 1/2-inch EMT8422

Can you weld EMT conduit?

Even when used by beginners, MIG welding makes nice, even weld beads. Electrical-mechanical tubing, or EMT, is galvanized steel tubing commonly used as conduit for running electrical wires through a building. … Welding EMT is normally accomplished through metal inert gas welding, or MIG.

Can you use flexible conduit outside?

Flexible Metal Conduit is a helically injury, flexible tubing usually made from aluminum. Because it can not be used outside or in other wet areas, Flexible Metal Conduit is rather restricted in its usefulness, yet there are a couple of applications where it is the clear selection.
