What are light bulb base sizes

A further explanation of the light bulb base sizes, you can look at the letter-number references (E12, E17, and E26) to help understand a bulbs base style and size. The first letter designates the shape or form of the base, and the number represents the width of the base (normally in millimeters).

How do I know what base my light bulb is?

A further explanation of the light bulb base sizes, you can look at the letter-number references (E12, E17, and E26) to help understand a bulbs base style and size. The first letter designates the shape or form of the base, and the number represents the width of the base (normally in millimeters).

What is E17 base bulb?

Intermediate Screw Base (E17) Bulbs are sometimes called Intermediate Edison Screw (IES), “E” stands for “Edison” and “17” indicates the diameter in millimeters as measured across the peaks of the thread on the base, e.g., E-17 base bulbs have a diameter of 17 mm.

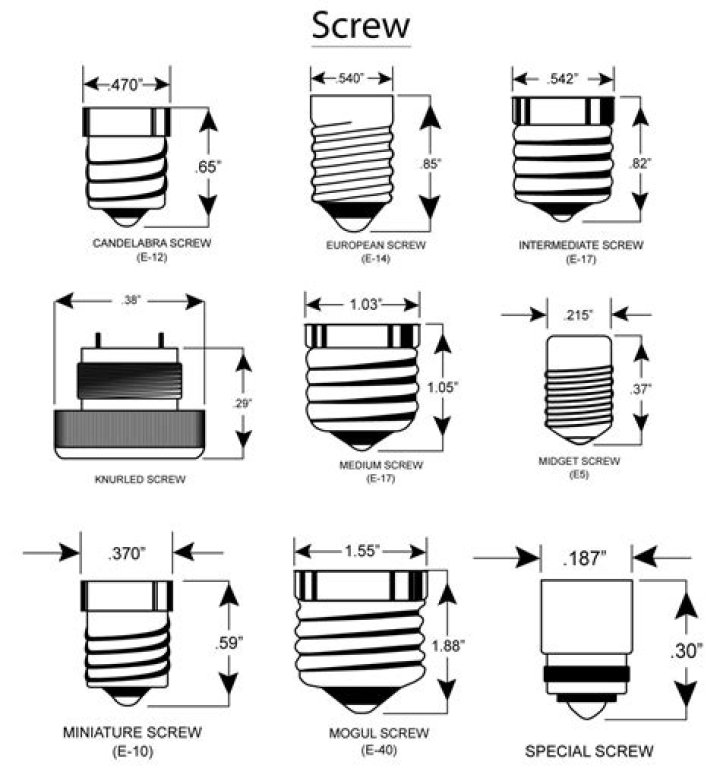

What are standard light bulb base sizes?

• E26/E27 Medium – Edison 26-mm or 27-mm Diameter.
• E12 Candelabra – Edison 12-mm Diameter.
• E14 European – Edison 14-mm Diameter.
• E17 Intermediate – Edison 17-mm Diameter.
• E39/E40 Mogul – Edison 39-mm or 40-mm Diameter.

What is a Type A medium base bulb?

“E” refers to “Edison,” which is the type of “screw in” style base people in the United States are most familiar with. 26 refers to 26 mm across. (This is also called a “medium” base.) So the light bulb that most of us have used in our homes here in the States is an A19 bulb with an E26 base.

Are E26 and G25 the same?

The G25 shape is usually pared with a E26 (medium) base, similar to that of a standard A19 and come in outputs ranging from 25 watts to 60 watts. G25 LED Bulb Replacements G25 shaped LED bulbs now exist and are a great replacement for decorative and vanity applications.

What base is a Type B bulb?

B-shaped bulbs are also known as Candelabra bulbs. Bulbs with this shape have a bulged base that attenuates to a rounded tip.

Is E26 base same as medium base?

The most common type of light bulb here in the United States has what is referred to as a “Medium” base or “Standard” base. The word “base” is referring to the threaded part of the light bulb that screws into the socket. A Medium or Standard base light bulb is also referred to as an E26 base light bulb.

What is the standard light bulb base size in the US?

E26 is the size of most light bulbs used in the U.S. It’s referred to as having a “medium” or “standard” base. E12 is the smaller “candelabra” base. It’s used for nightlight bulbs, and sometimes for decorative light bulbs used in chandeliers and over bathroom mirrors.

What is difference between E26 and E27 bulb base?

E26 vs E27, what’s the difference? E26 stands for 26 mm and the E27 for 27 mm in diameter. These two standards are interchangeable, meaning a US E26 will fit in a European E27 base, and E27 will fit in a E26 base. The only difference is the voltage (for light bulbs).

Article first time published on

How do I know if I have a Type B bulb?

What Type B Bulbs Look Like. Sometimes known as “candelabra bulbs,” Type B bulbs are bullet or flame-shaped, smaller in size and carry less wattage than other bulbs. Some Type B bulbs buldge at the base and get thinner as they reach the tip, while others retain the same narrow shape from bottom to top.

What does B stand for in light bulbs?

Dmitrii_Guzhanin / Getty Images. B can indicate one of three different shapes. When it is used by itself, though, it stands for bullet. A bullet light bulb is a cylinder with a rounded end, like a tubular incandescent bulb, but with a base that is smaller than the glass cylinder. A BR bulb is a bulged reflector bulb.

Are Type B and C bulbs interchangeable?

Blunt-tip (B) bulbs are very similar to C-type bulbs but have more of a torpedo or bullet shape. These bulbs can be used in chandeliers, wall sconces, pendant lights, night lights, decorative light strands, holiday light strands, and other decorative home lighting applications.

Is A15 the same as E26?

There’s a “bulb size” and a “base size.” The bulb size is self explanatory. The A15’s are smaller bulbs, while the A19’s are larger. They both fit in a standard household medium base (E26 base.) … A15 bulbs are usually recommended in a close quarters area, maybe on a small lamp or something.

What is the difference between E26 and A19?

Actually “A19″ is in indication of the width of the bulb around the thickest part (the white circular circumference). “E26” on the other hand indicates what kind of base the bulb has. … A19 is the size and shape of the overall bulb. E26 is the Size, shape, and threading of the metal base.

Is E26 the same as A19?

All A19 lamps have an E26 base, but not the other way around The standards that govern the dimensions and design of A19 light bulbs also dictate that it must use an E26 screw base. In other words, all A19 light bulbs also have an E26 base.

How big is an E26 bulb base?

Thus a E26 has a 26 mm base diameter.

What is a E26 base bulb?

The term E26 refers to a light bulb’s cap or base – the bulb component that allows for both electrical and mechanical contact. The letter “E” in E26 refers to Edison Screw, the most standard of lamp bases, while the numerical “26” refers to its diameter in millimeters (approximately 1 inch).

What base does an A19 bulb have?

According to ANSI standards, A19 bulbs must always use an E26 base for mounting into a light fixture. A19 and E26 refer to different things, but in this case, you will find that all A19 bulbs use E26 lamp bases.

What is E27 screw base?

The Edison screw E27 bulb is 27mm in width and the most common size of screw base light bulb. This ES screw bulb base can be found on incandescents, halogens, CFLs, and LEDs. The ES base comes on different bulb shapes, including globe, GLS, reflector, and pygmy.

Is E27 same as A19?

Most A19/A60 light bulbs come with an E26 type (i.e. 26 millimeters in diameter) in countries with a mains voltage of 100–120 volts, or an E27 type (i.e. 27 millimeters in diameter) in countries with 220–240 volts AC.

How bright are E26 bulbs?

E26 thread base, 800 lumens, 8.7 watts, 60W equivalent, dimmable bulb and works with Alexa.

What are Type B bulbs used for?

Type B bulbs are longer and have a tip on the end. These bulbs are usually used in decorations like chandeliers and pendant lighting.

Can you use a Type A bulb in a Type B fixture?

Thanks for your electrical question Ryan. The Type A Bulb is the most standard size, that being a larger base than a Type B. … That being the case, there are socket adapters to allow a Type B Lamp to be used in a Type A Socket, but not for a Type A bulb to be used in a Type B Socket.

Is E12 base type B?

Type B Small Light Bulb, Comzler Candelabra LED Light Bulb E12 Small Base 4000K Neutral White – 60watt Equivalent,600LM,Non-Dimmable Candelabra Bulbs, Pack of 6, Non-Dimmable.

What does SL mean on a light bulb?

SL – safe line. TF – tough coat. These two abbreviations also mean the same thing but are not manufacturer specific.

What is S Type a light bulb?

Type A is a roundish bulb with a relatively wide mount on the bottom. Most light bulbs, regardless of CFL, LED or incandescent status, use this kind of mount.

What size is a Type B light bulb?

Type B Series Light Bulbs. Length: 1.5 in. – Height: 4.33 in. – Width: 1.5 in.

What is the difference between A19 and A15 bulbs?

A15 bulbs are slightly smaller than A19 bulbs and typically come in outputs ranging from 10 watts to 40 watts. These smaller wattages are frequently used in applications such as appliances, signage and decorative lighting.

What size base does an A15 bulb have?

Shape: A15 (1 7/8″ diameter) Base: Medium (E26) or Candelabra (E12) Wattage: 15W to 60W.
