What are the different fuse classes

Class CC fuses. … Class G fuses. … Class H fuses. … Class J fuses. … Class K fuses. … Class L fuses. … Class R fuses.

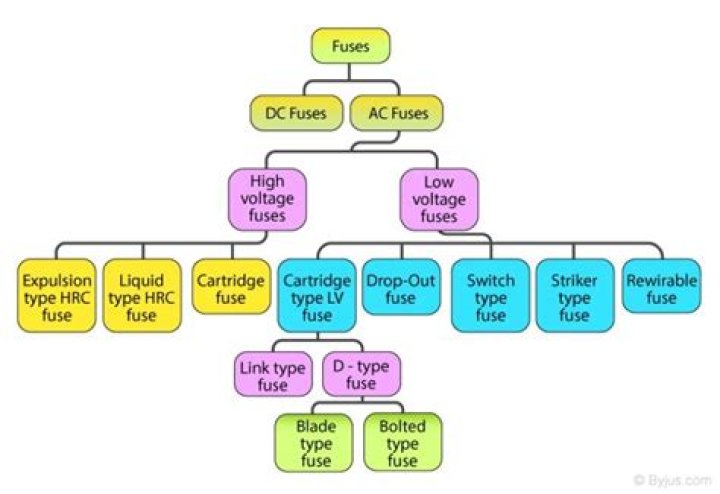

What are the 3 types of fuses?

• DC Fuses.
• AC Fuses.
• Cartridge Fuses.
• D – Type Cartridge Fuse.
• HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
• High Voltage Fuses.
• Automotive, Blade Type & Bolted Type Fuses.
• SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.

What is the difference between a Class J and Class R fuse?

Class R fuses are available with DC ratings. They have an interrupting rating of 200kA rms symmetrical and are separated into two separate classes, RK1 and RK5. … Current ratings of UL Class J fuses range from 0A to 600A, and the voltage rating is 600VAC. Class J fuses are available with DC ratings.

What are Class H and K fuses?

Classes H, K, and R are “full-size” fuses, often used in motor applications. You’ll find all three classes with voltage ratings of 250V or 600V, while amp ratings range from one-eighth of an amp up to 600A.

What does the R in Class R fuses mean?

Class R (“R” for rejection) fuses are high performance, 1⁄10 to 600A units, 250V and 600V, having a high degree of current-limitation and a short-circuit interrupting rating of up to 300,000A (RMS symmetrical).

What is fuse write their four types?

LV Fuses. The low voltage fuses are divided into five types and those are of the rewirable, cartridge, drop out, striker, and switch fuses.

What is a Class K fuse?

Class K fuses. These non-renewable fuses are available in 250VAC and 600VAC ratings, with current ratings from 0A to 600A. Class K fuses are available with DC ratings. The interrupting ratings may be 50kA, 100kA, or 200kA rms symmetrical. Class K-1 fuses provide the best degree of current limitation.

What is a Class L fuse?

A Class L fuse is 600 volt AC current limiting, fuse that is rated to interrupt a minimum of 200,000 amps. … The Type L Fuse is UL Listed, under UL 248-10, Class L, (601-6,000 amps) and CSA Certified,. The Type L fuse is UL Recognized, for ampere ratings of 100 to 600 amps.

What is a Class D fuse?

The D fuse-system is the first generation of the screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse-range comprises the sizes NDZ, DII, DIII, DIV, DV.

What is Class G fuse?

What is a Class G, Fuse? A UL Class G fuse is a 600/480 volts AC current limiting, fuse that is rated to interrupt a minimum of 100,000 amps. Ampere ratings range from ½ amp to 60 amps. The type G fuse meets the NEC, requirements for branch circuit, protection.

Article first time published on

What is a Class C fuse?

Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.

What are Class H fuses?

What is a Class H, Fuse? A UL Class H fuse is a non-current limiting, fuse that is rated to interrupt a minimum of 10,000 amps. The Class H fuse is a one-time fuse that does not have any appreciable degree of time delay. Class H fuses are rated at either 250 volts AC or 600 volts.

What is a class RK5 fuse?

A UL Class RK5 fuse is a current limiting, time delay fuse, that is rated to interrupt a minimum of 200,000 amps. The UL Class RK5 fuse is less expensive but less current limiting than the Class RK1 fuse,. It has a dual element, construction. RK5 fuses are rated at either 250 or 600 volts AC.

What is a Class J fuse used for?

Class J fuses are commonly used in branch circuits, motor circuits, mains, feeders, control panels, electronic motor controllers, drives, soft-starters, circuit breaker back-up, transformers, load centers, lighting, heating and general loads to name a few.

What does SP mean on a fuse?

SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw. Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit.

What does FRS mean on a fuse?

Product Overview. The FRS-R30 is a 30A/600VAC class-RK5 dual element Time Delay Fuse for rejection or ordinary fuse clips. This FRN-series fuse provides motor overload, ground fault and short-circuit protection.

What is a Class SC fuse?

SC-(amp) Description: Basic protection Class G size-rejecting, current limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A time-delay. Time-delay – 12 seconds (minimum) at 200% of rated current.

What is class T fuse?

A Class T fuse is a fast acting, current limiting, fuse that is rated to interrupt a minimum of 200,000 amps. The Type T Fuse is offered in 300 volt AC and 600 volt AC versions. Type T Fuse ampere ratings range from1 to 800 amps.

What is electric fuse Class 7?

Explanation: – A fuse is a safety device which limits current in circuit as a result it prevents damages to electrical circuits and possible fires. Fuses used in electrical appliances.

What is DC fuses?

DC Fuse. The DC fuse opens or breaks the circuit when the excessive current flow through it. The only difficulty with the DC fuse is that the arc produced by the direct current is very difficult to extinct because there are no zero current flows in the circuit.

What is an electric fuse Class 10?

Electric fuse is a small piece of wire of a material having low melting point and high resistance. The device protects the circuit from overloading and short circuiting. A fuse wire is made of pure tin or of an alloy of copper and tin.

What is the interrupting capacity of a Class H fuse?

Since Class H fuses are not current- limiting and are recognized by regulatory agencies as having only a 10,000A interrupting rating, serious damage could result if a Class R fuse were replaced by a Class H fuse.

What is the maximum allowable amp rating of a 125 volt Edison base fuse?

Construction: Melamine Tube Ampere Ratings:1/4 – 30 Amps. Voltage Rating: 600V AC or less Interrupting Rating: 200,000A RMS Sym. Interrupting Rating: 200,000A RMS Sym. (B) Either the fuse must clear the overcurrent in .

What does FNM stand for on a fuse?

Product Overview The FNM-10 is a 10A/250VAC dual-element time delay supplemental Midget Fuse with fiber body, melamine tube and nickel-plated brass end caps. This FNM-series fuse is used for circuits with high inrush currents.

How do I know if my class G fuse is blown?

Remove the fuse from its holder. In some cases you may need a small screwdriver to unscrew the fuse holder cap. Look at the fuse wire. If there is a visible gap in the wire or a dark or metallic smear inside the glass then the fuse is blown and needs to be replaced.

What is the difference between RK1 and RK5 fuses?

What is the difference between UL Class RK1 and RK5 fuses? Class RK1 and RK5 fuses are the same physical size but Class RK1 fuses are more current-limiting than Class RK5 fuses. RK1 fuses can provide better protection because they allow less damaging energy to pass through them while opening (blowing).

What is a delayed fuse?

A time delay fuse is a special kind of fuse that allows electrical surge for a short time before it actually blows. Due to its special design, it can bear electricity overload in a repeated cycle for a short period without blowing.

What is Bussmann fuse?

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class.
