What do joists connected to

Joists run from one beam to another and are usually spaced 16 inches apart, center-to-center. Plywood sheathing attaches to the joists, then hardwood flooring or tile. Since joists carry the load of the floor, they must be securely attached at either end to a ledger board or a beam, and must be level in all planes.

What are joists attached to?

Usually made of pressure-treated lumber, they’re attached to the frame, or ledger. (Since they’re often close to the ground and support the deck, the American Wood Protection Association recommends ground-contact lumber for deck joists.) The width of a deck joist beam depends on its required length, or span.

How do joists connect to walls?

Joists are toenailed to header and sill plate. Sill plate is anchored to top of foundation wall with anchor bolts. Wall plate supporting the wall framing is fastened to the sill plate with 3 in. … Wall plate supporting the wall framing is fastened to the sill plate with 3 in.

How are joists supported?

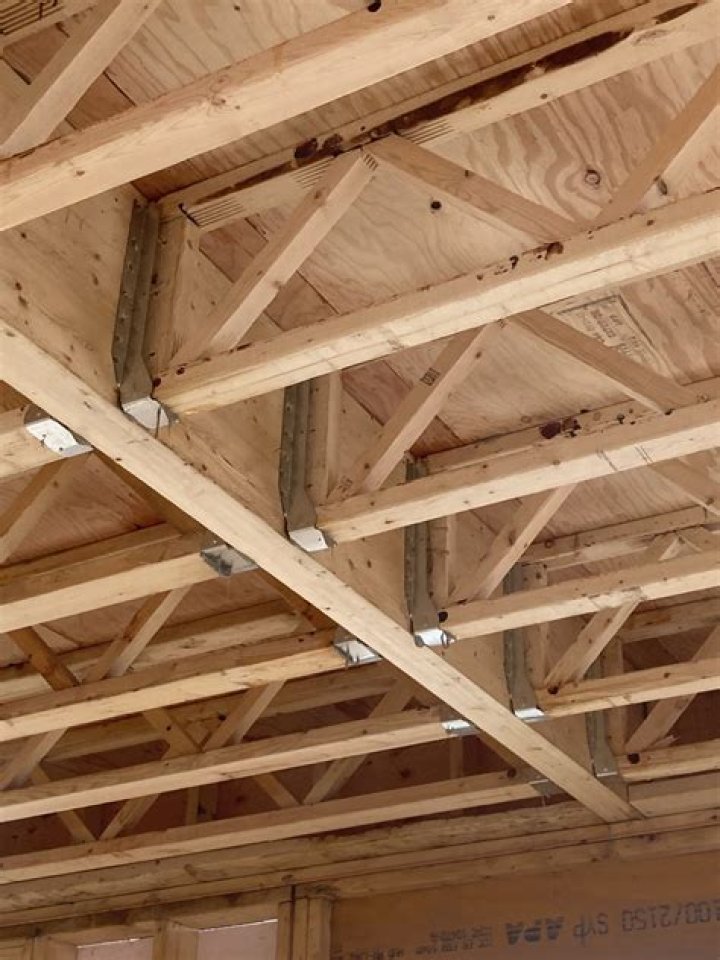

Joists may be connected to the supporting structure at their ends using traditional carpentry joints, or they may be placed into pockets, or they may be fixed using hangers, straps or other connectors. … Joists can be strengthened, by ‘sistering’ steel, timber or ply reinforcing joists to the side of the existing joists.

Do walls sit on joists?

Non-loadbearing walls that run parallel to the joists don’t need to be placed directly over joists. If a wall is not over a joist, however, solid blocking must be installed between the joists to carry the load. If the wall is placed directly over a joist, that joist should be doubled.

How long can a joists be without support?

With 16” spacing, a floor joist can span up to 14′ as long as it is not cantilevered and terminates with support on either end. If the joists are 24” apart, then one 2×10 joist can span up to 11′ 5”.

Can you drill through joists?

You can drill the holes anywhere along the length of the joist (first photo). If you have manufactured I-joists, you can drill holes up to 1-1/2 in. diameter almost anywhere in the web area (the area between the flanges).

How are joists attached to foundation?

They rest on and are toenailed or bracketed to a sill plate which is bolted to the top of the foundation wall. Sill plate is bolted to the foundation rhen a rim joist toenailed to the sill and then the joists are set on the sill plate and nailed into the rim.

What is the difference between a joist and a truss?

The joist supports the load which the floor is built to bear. A truss is used to support the roof.

What is joist blocking?

Floor joist blocking refers to solid, lateral supports installed between floor joists to evenly distribute loads placed atop floor joists. Blocking uses lumber the same size as the floor joists and is fastened either in a staggered or straight line mid-span or every 8′ depending on the length of the joist.

Article first time published on

How do you repair joists in an existing wall?

1. Cut pockets into masonry and sit on DPC.
2. Fix joist hangers directly to the face of the existing blockwork.
3. Fix joist hangers directly to the face of the existing blockwork but cut in with grinder to allow lateral restaint.
4. Fix a timber wall plate and sit joists on this.

Can you join joists together?

The side-by-side joists should be attached together by a nailing pattern similar to combining boards to form a beam. If you are adding onto a deck, you must make sure the footings are large enough to support the added loads.

How do floor joists work?

When a load is applied to a joist, the wood fibers along the bottom edge go into tension and those along the top go into compression (Fig. A). As long as the top fibers and the bottom resist these stresses, the joist will do its job of keeping your floor strong, straight and solid.

How are floor joists attached to sill?

1 Answer. The floor joists are secured to the sill joists by installing wall sheathing (plywood or OSB board) that laps from the sill plate up the wall to the double top plate. When the sheathing is nailed to the sill plates, rim joists, studs and double top plate, then all the components are secured in place.

Do joists have to line up with studs?

Although not a requirement, it is highly recommended that your floor joist and wall studs line up with each other. Most homes have uniform flooring, and it should not be a problem to have them lined up together since they follow the same spacing. Doing this makes it easier to work with these building components.

What happens if I remove a load bearing wall?

Removing a load bearing wall may create structural problems in a home, including sagging ceilings, unleveled floors, drywall cracks, and sticking doors. … Removal of load bearing walls without properly supporting the load they’re carrying may occasionally result in a structural collapse and even injury.

Can a wall be load bearing if parallel to joists?

Walls that run parallel to joists are not typically load bearing, whereas walls that run perpendicular to the joists are most likely load bearing. Identify walls in the center of a building. … So if there are walls in the same spot on each floor of your house, they are likely load bearing.

How can I make my joists stronger?

As incremental parts of a building’s structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called “sistering,” or reduce wobbly floors with block inserts between the joists, called “blocking.”

Can you notch bottom of joist?

DO NOT NOTCH THE BOTTOM OF THE JOISTS! Joists notched in this way have been known to fail.

How many wires can go through a joist hole?

According to the National Electrical Code, you can have 4 12/2 nonmetallic sheathed cables through a single bored hole that is fire- or draft-stopped using thermal insulation, caulk, or sealing foam, or where proper spacing is not maintained for more that 24 in.

How far apart should joists be?

Floor Joist Spacing: How Far Apart Are Floor Joists in a House? Floor joists are typically 12”, 16”, or 24” apart in a home. Most common spacing for floor joists is 16” o.c.

How far can you span I joists?

Span refers to the length of the I-joist. The L/480 table with a 40 per square foot live load and a 20 per square foot dead load with a depth of 11 7/8 inches will give you spans according to joint weight. With these factors, the lightest joist will have a maximum span of 17 feet, 8 inches.

How thick do joists need to be?

When choosing a joist spacing, check that your floorboards (or sheets) are strong enough to span over the width chosen. As a general rule – floorboards should be a minimum 16mm thick for joist centres up to 500mm and 19mm minimum for centres up to 600mm.

What is the purpose of ceiling joists?

The ceiling beam, or ceiling joist, has two prime functions. The first is to tie the walls of a structure or a room together, effectively completing a box configuration. The second is, as the name implies, to support the ceiling of the structure, or room. Ceiling joist framing is undertaken after the walls are erected.

What's the difference between joists and rafters?

The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.

Are trusses stronger than joists?

Pros: Span longer distances than traditional joists, removing the need for walls in some areas. Lighter weight. Stronger than traditional joists.

What do floor joists sit on?

At the foundation level, floor joists rest directly on a sill that is treated with preservative so that contact with the foundation will not promote termites or rot. Their exact construction and connection with the wall studs depend on the method of framing that is utilized.

How do floor joists attach to blocking Foundation?

Set a block between joists in the center of the first two joists. Use wood the same dimension as the joist and cut each block individually to the dimension between joists. Then add a block between the next two joists offset from the first one. This allows you to nail through the joist into the block.

What is framed floor?

a floor in which binding joists support flooring joists above and ceiling joists below.

Do noggins strengthen joists?

Noggins help to straighten out wall studs and floor joists and they are also used to provide a strong fixing for something that will be later fixed to the structure.

What is joist strapping?

Strapping a ceiling is the process of installing wood (or, in advanced installations, another material) perpendicular to the joists. The strapping serves as the nailing surface for the drywall. You should never install ceiling drywall fastened directly to the joists above.
