What does a visual inspection consist of

Visual Inspection, used in maintenance of facilities, mean inspection of equipment and structures using either or all of raw human senses such as vision, hearing, touch and smell and/or any non-specialized inspection equipment.

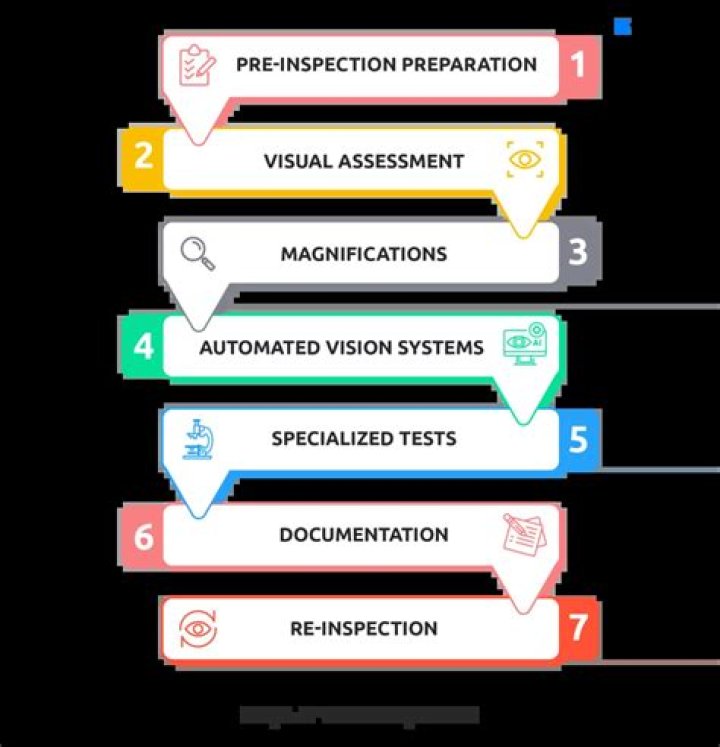

How do you do a visual inspection?

1. Step #1 Clearly define defect criteria. …
2. Step #2 Standardize inspection performance. …
3. Step #3 Analyze visual defects. …
4. Step #4 Communicate improvement measures. …
5. Step #5 Use mobile-ready checklists. …
6. Explicitly define defect criteria.

What is a general visual inspection?

Inspection – General Visual A visual examination of an interior or exterior area, installation or assembly to detect obvious damage, failure or irregularity. This level of inspection is made from within touching distance unless otherwise specified.

What should you look for during visual inspection?

In its original form, visual inspection is used to observe the surface of an object and look for cracks, scratches, misalignments, corrosion, and other physical defects.

What are the types of visual inspection?

Categories of Remote Visual Inspection The three major types of RVI equipment are rigid borescopes, fiberscopes, and videoscopes. All three types of RVI use a long tube that a tech inserts to examine the area of interest. Most RVI equipment has a light to illuminate dark, enclosed spaces.

How many stages are used by visual inspection?

Visual inspection can be done at three stages; Before welding, During welding and. After welding.

What are the limitations of visual inspection?

• Surface indications only.
• Generally only able to detect large flaws.
• Possible misinterpretation of flaws.

Is standard for visual inspection?

Policy: Visual Inspection Standards (VIS) provide relaxations from the surface condition (normally flawless) implied by engineering drawings. Only those relaxations (called imperfections) allowed by this VIS, or the engineering drawing are permitted on parts to which this VIS is assigned. 3.

Which of the following Cannot be detected using visual inspection?

7. Which of the following cannot be detected using visual inspection? Explanation: Visual inspection can be used for detection of many kinds of defects like cracks, tears, blowholes, rattails, metal penetration, swells, shifts and many more. But for detecting cracks within the cast, visual inspection is not the way.

What is walk around inspection?

In aviation, an outside check or walk around is the air crew inspecting certain elements of an aircraft prior to boarding for security, safety, and operational reasons. The pilot primarily inspects outside parts of the aircraft they will steer, e.g. control surfaces, tires and possible leaks from fuel or oil.

Article first time published on

When performing a visual inspection on a landing gear component what is used to confirm the existence of a suspected crack?

Use a 10-power magnifying glass to confirm the existence of a suspected crack. If this is not adequate, use other NDI techniques, such as penetrant, magnetic particle, or eddy current to verify cracks.

What is the purpose of a visual inspection of an engine and its components?

Visual inspection is used to: Provide an overall assessment of the condition of a struc ture, component, or system. Provide early detection of defects before they reach critical size.

What types of flaws are easily detected by visual inspection?

Visual Inspection (VT) It allows for a feasible and fast control of quality at every step of the fabrication or maintenance process. Visual Testing (VT) is used to detect visible flaws such as deformation, welding defects and corrosion. Many tools can be used during the inspection such as a ruler, gauges, cameras, etc.

Which Colour light is suitable for visual inspection?

The requirements of the standards mainly include: The light must correspond to daylight with a color temperature of 3.000K, 4.000K, 5.000K or 6.500K. The light source must have a color rendering index of Ra>90 (for planistar even about Ra 95) The environment must have a neutral gray, matt color.

How accurate is visual inspection?

Despite all these reviews, 100% visual inspection by even well-trained and experienced production inspectors has been shown to be only about 80–85% effective. It is not humanly possible to visually inspect and remove 100% of occurring defects even in the best of conditions.

What are the advantages of visual inspection?

A well-achieved visual inspection provides a reduction in the amount of repairs to the weld, leading to greater production of the other non-destructive tests and therefore decreasing the cost of production.

How do you check the quality of a visual welder?

1. Check electrodes for size, type and storage (low hydrogen electrodes are kept in a stabilizing oven)
2. Watch root pass for susceptibility to cracking.
3. Inspect each weld pass. Look for undercut and required contour. …
4. Check for craters that need to be filled.
5. Check weld sequence and size.

Which one of the following is a destructive test?

Explanation: Compression test is a type of destructive testing. This test is used to determine behavior of metals under compressive load. Visual testing, ultrasonic testing, eddy current testing are types of non-destructive testing. Explanation: Creep test is a type of destructive test.

What type of test is visual inspection test Mcq?

Clarification: Visual inspection is a type of non -destructive testing technique that provides a means of detecting and examining the variety of surface flaws, such as surface finish, discontinuities and surface cracks on the castings.

Which of the following material Cannot be tested by magnetic particle testing?

Which of the following material can’t be tested by magnetic particle testing? Explanation: Magnesium (Mg) is a non-magnegnetic material. So, it can’t be tested by magnetic particle inspection. Whereas Cobalt (Co), iron (Fe) and Nickel (Ni) are ferromagnetic materials.

Which year did mandatory visual testing start?

This method involves the visual observation of the surface of a test object to evaluate the presence of surface discontinuities such as corrosion, misalignment of parts, physical damage and cracks.

Which Bsen standard is used for visual inspection of welds?

ISO 17637:2016 specifies the visual testing of fusion welds in metallic materials. It may also be applied to visual testing of the joint prior to welding.

What is a pre use inspection?

First and foremost, the purpose of a pre-use inspection is to ensure that the machine is safe to operate. … A defective machine could easily endanger the life of its operator, as well as the lives of laborers working in close proximity to it.

What is preflight inspection?

The Daily/Preflight Inspection, as the name implied, is the inspection that should be carried out prior to commencing a flight. … If the aircraft is to be flown after midnight, the Airworthiness Release must be re-issued except for continuous flight after midnight in which the validity will expire upon landing.

What are 3 things that need to be checked when performing key and key screw inspection?

Key and Key Screw Inspection As mentioned, there should be no movement between the wheel and the keys. The bolts should be checked for security, and the area around the keys should be inspected for cracks. There is also a limitation on how worn the keys can be since too much wear allows excessive movement.

What is visual inspection in aviation?

The Federal Aviation Administration (FAA) defines aircraft visual inspections as “the process of using the eye, alone or in conjunction with various aids, as the sensing mechanism from which judgments may be made about the condition of a unit to be inspected.”

What should be checked when a shock strut bottoms during a landing?

What should be checked when a shock strut bottoms during a landing? the direction of fluid pressure. allow full debooster piston travel without fluid from the high pressure side entering the low pressure chamber.

What are the tools used in visual inspection of an aircraft corrosion?

Using the sense of touch is also an effective inspection method for the detection of hidden, well-developed corrosion. Other tools used during the visual inspection are mirrors, optical micrometers, and depth gauges.

What are three different types of inspections that should be accomplished when overhauling an engine?

There are 3 basic categories of inspection during overhaul: visual, structural non-destructive testing (NDT) and dimensional.

Which of the following may not be detectable even B carefully visual inspection of the surface of aluminum alloy parts or structure?

cannot always be detected by surface indications. Which of the following may not be detectable even be careful visual inspection of the surface of aluminum alloy parts or structures? Intergranular corrosion.

What does NDT mean?

NDT stands for Non-Destructive Testing. It refers to an array of inspection methods that allow inspectors to evaluate and collect data about a material, system, or component without permanently altering it. NDT may also be called: NDE (non-destructive examination or evaluation) NDI (non-destructive inspection)
